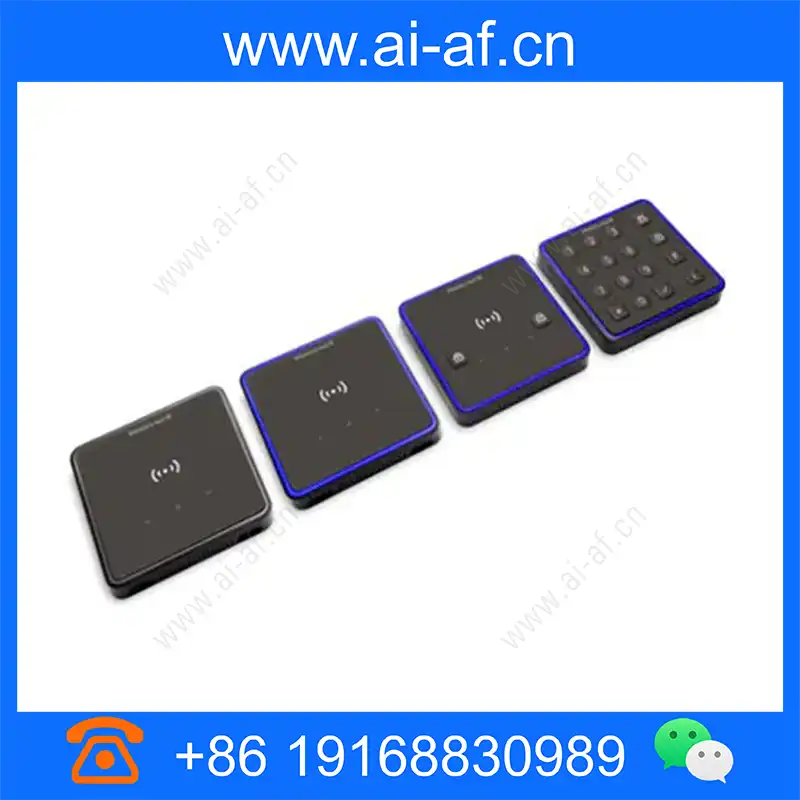

Honeywell LU4702BHONA luminAXS MifareD 2key OSDP reader

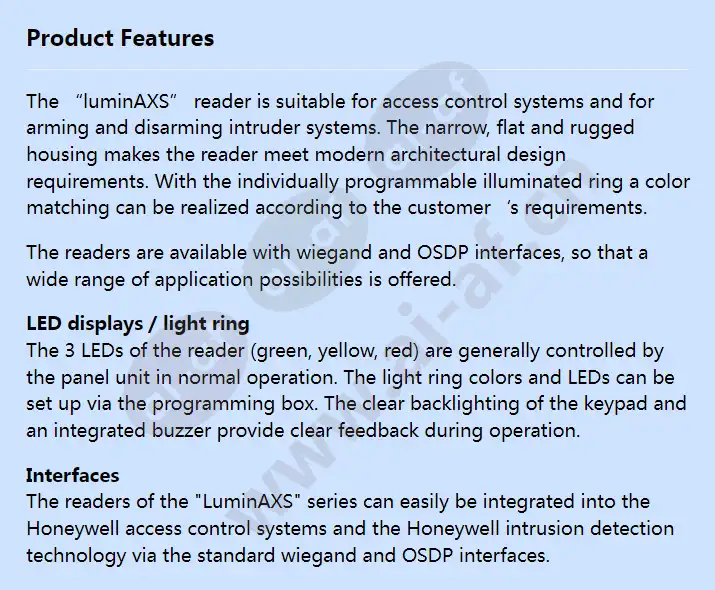

The “luminAXS” reader is suitable for access control systems and for arming and disarming intruder systems. The narrow, flat and rugged housing makes the reader meet modern architectural design requirements. With the individually programmable illuminated ring a color matching can be realized according to the customer‘s requirements. The readers are available with wiegand and OSDP interfaces, so that a wide range of application possibilities is offered. LED displays / light ring The 3 LEDs of the reader (green, yellow, red) are generally controlled by the panel unit in normal operation. The light ring colors and LEDs can be set up via the programming box. The clear backlighting of the keypad and an integrated buzzer provide clear feedback during operation. Interfaces The readers of the
