Honeywell HIBS-2080/HIBS-2110 infrared beam

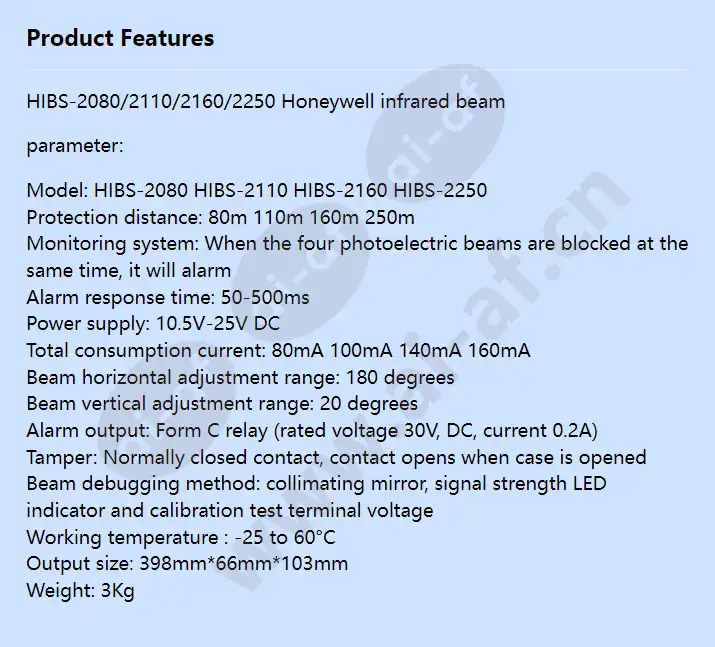

HIBS-2080/2110/2160/2250 Honeywell infrared beam parameter: Model: HIBS-2080 HIBS-2110 HIBS-2160 HIBS-2250 Protection distance: 80m 110m 160m 250m Monitoring system: When the four photoelectric beams are blocked at the same time, it will alarm Alarm response time: 50-500ms Power supply: 10.5V-25V DC Total consumption current: 80mA 100mA 140mA 160mA Beam horizontal adjustment range: 180 degrees Beam vertical adjustment range: 20 degrees Alarm output: Form C relay (rated voltage 30V, DC, current 0.2A) Tamper: Normally closed contact, contact opens when case is opened Beam debugging method: collimating mirror, signal strength LED indicator and calibration test terminal voltage Working temperature : -25 to 60°C Output size: 398mm*66mm*103mm Weight: 3Kg
