Samsung Hanwha TNU-6322E 2MP Explosion-proof Camera

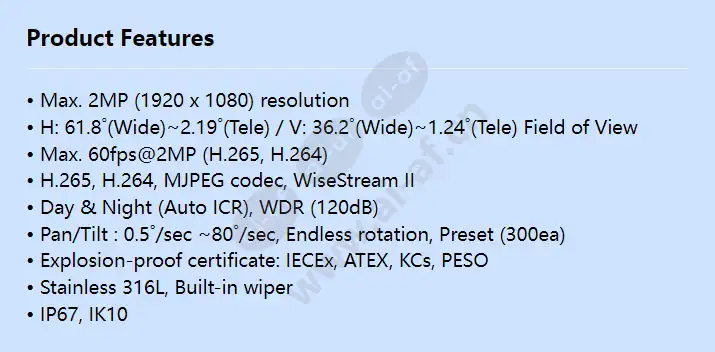

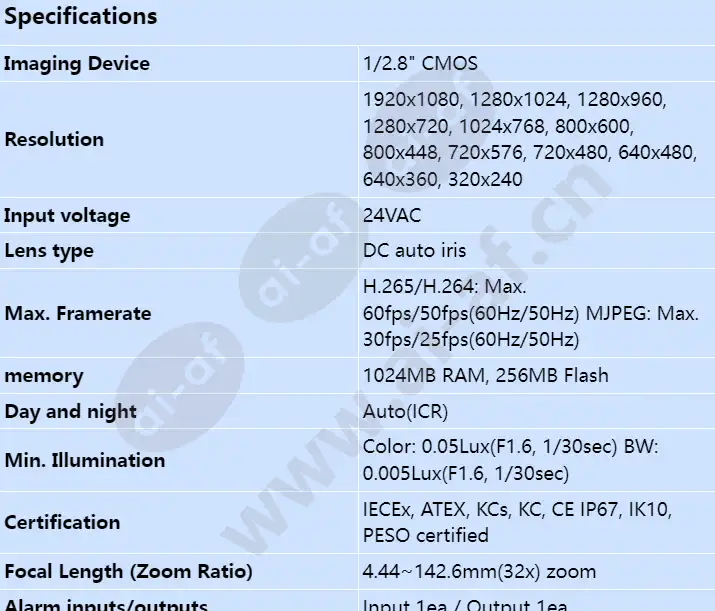

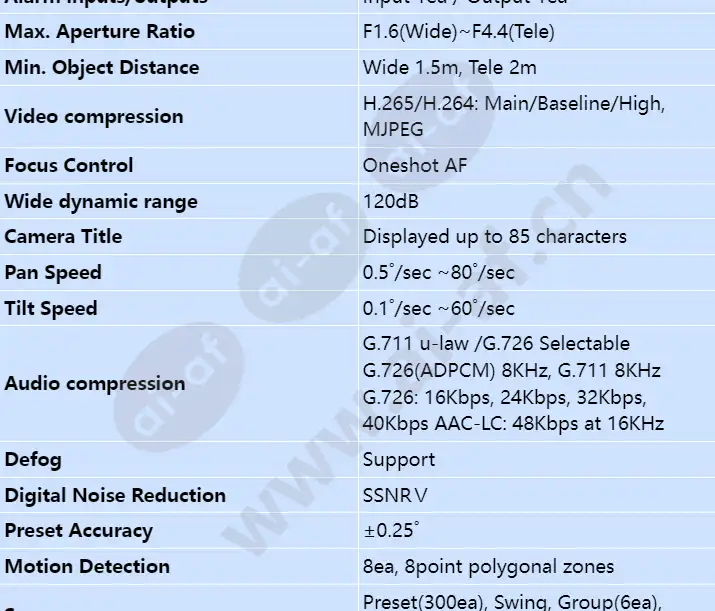

• Max. 2MP (1920 x 1080) resolution • H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) Field of View • Max. 60fps@2MP (H.265, H.264) • H.265, H.264, MJPEG codec, WiseStream II • Day & Night (Auto ICR), WDR (120dB) • Pan/Tilt : 0.5˚/sec ~80˚/sec, Endless rotation, Preset (300ea) • Explosion-proof certificate: IECEx, ATEX, KCs, PESO • Stainless 316L, Built-in wiper • IP67, IK10 Imaging Device 1/2.8" CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) Min. Illumination Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec) Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom Max. Aperture Ratio F1.6(Wide)~F4.4(Tele)
