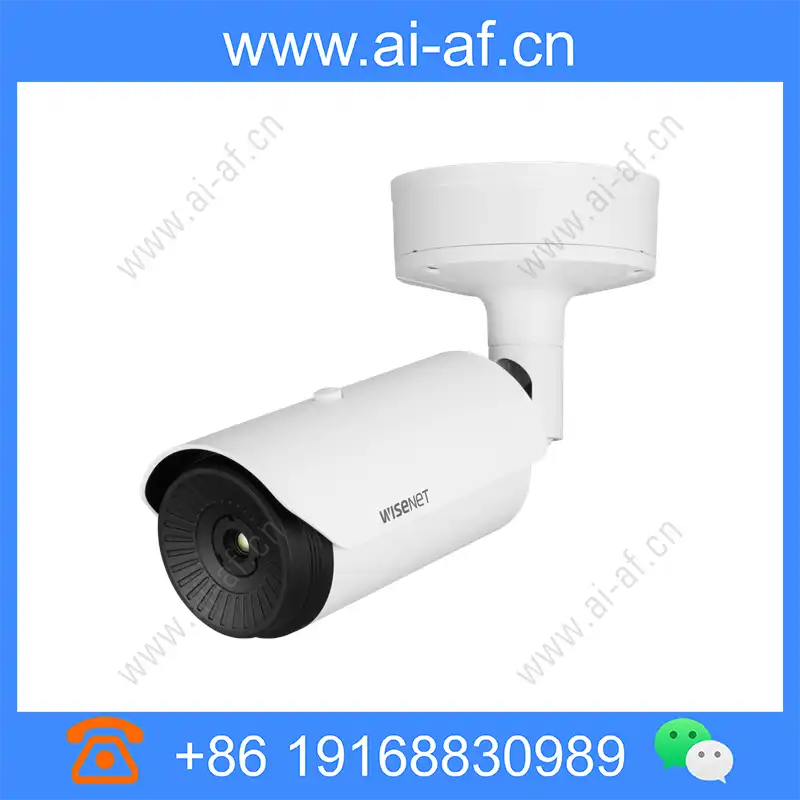

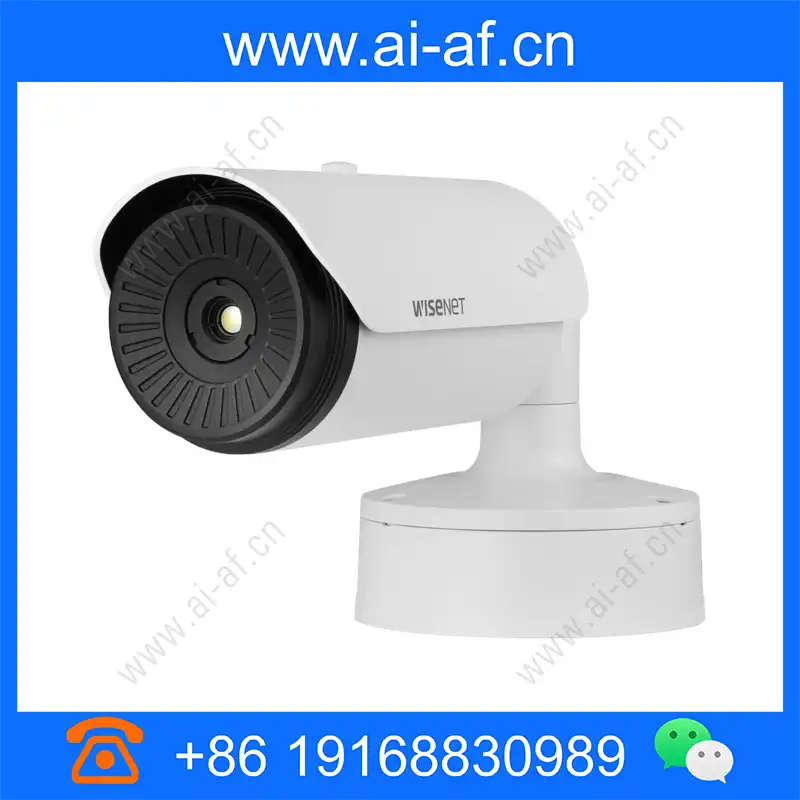

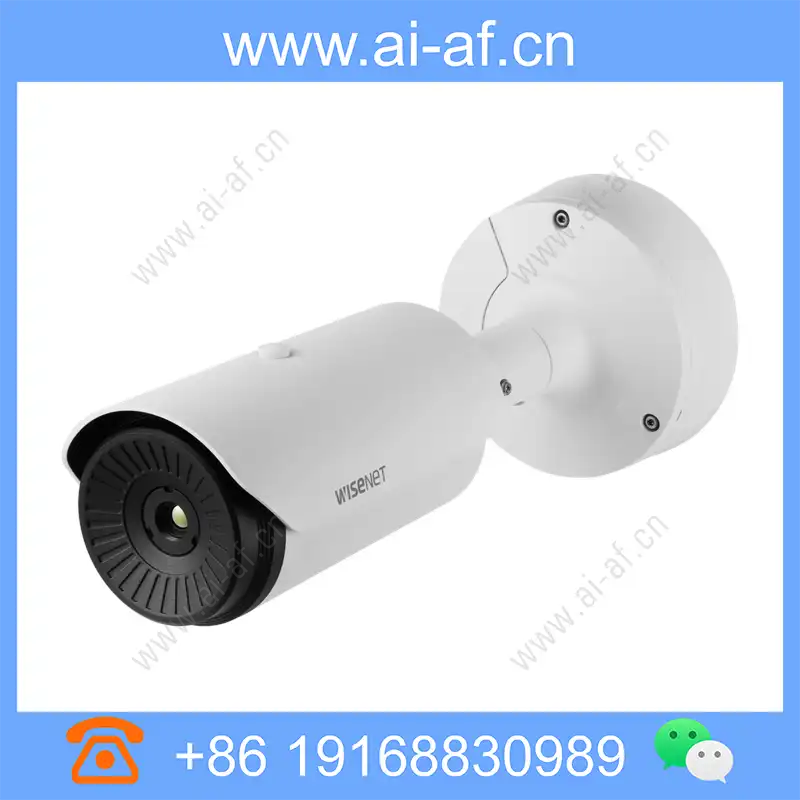

Samsung Hanwha TNO-3030T QVGA Thermal Camera

Brand: Hanwha
Model: TNO-3030T

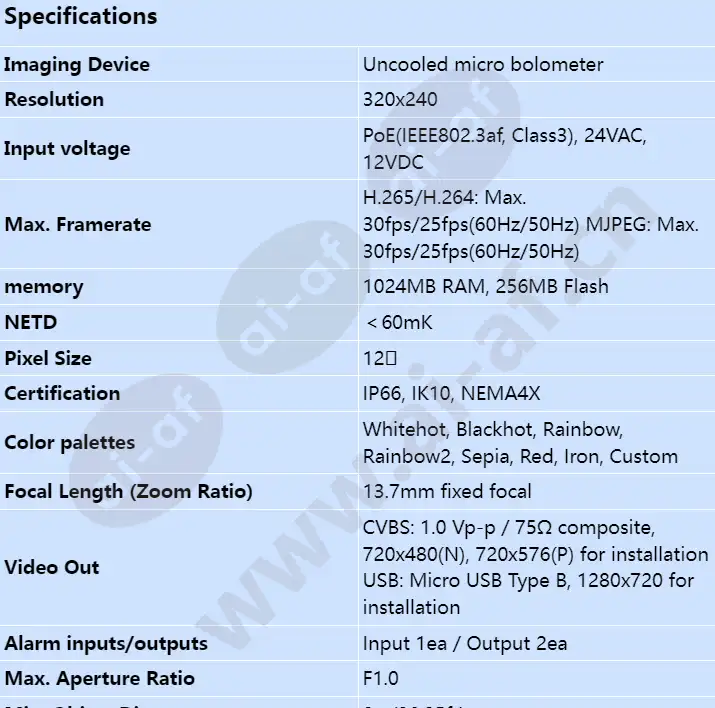

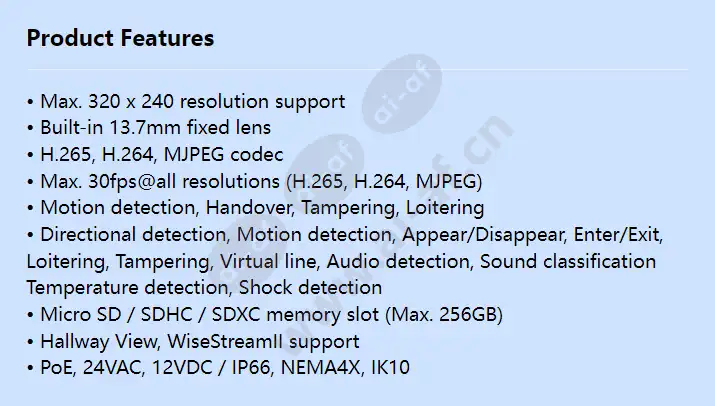

• Max. 320 x 240 resolution support • Built-in 13.7mm fixed lens • H.265, H.264, MJPEG codec • Max. 30fps@all resolutions (H.265, H.264, MJPEG) • Motion detection, Handover, Tampering, Loitering • Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Temperature detection, Shock detection • Micro SD / SDHC / SDXC memory slot (Max. 256GB) • Hallway View, WiseStreamII support • PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10 Imaging Device Uncooled micro bolometer Resolution 320x240 Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) NETD <60mK Pixel Size 12㎛ Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720
