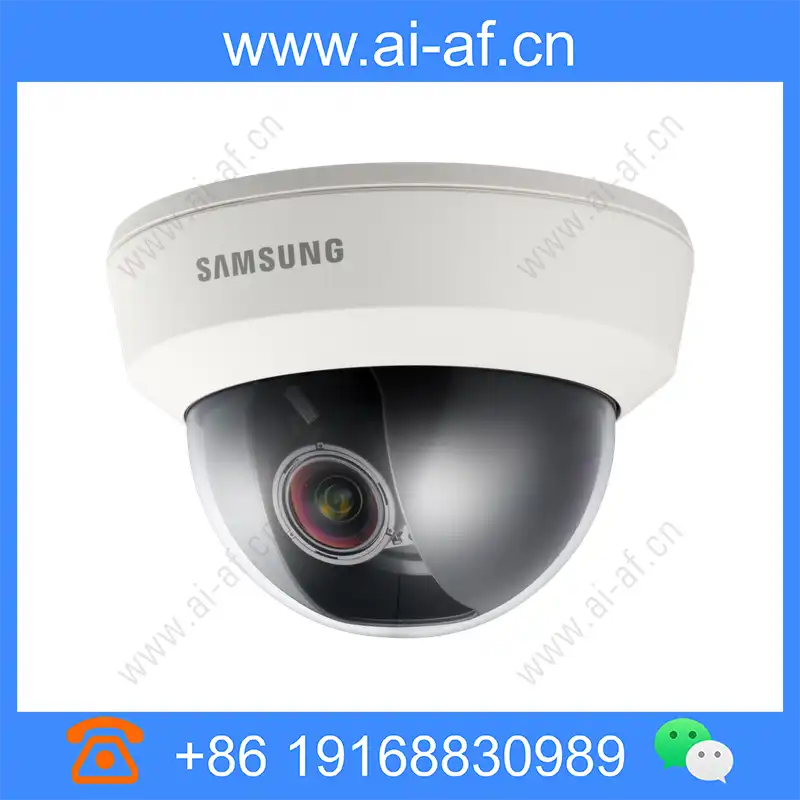

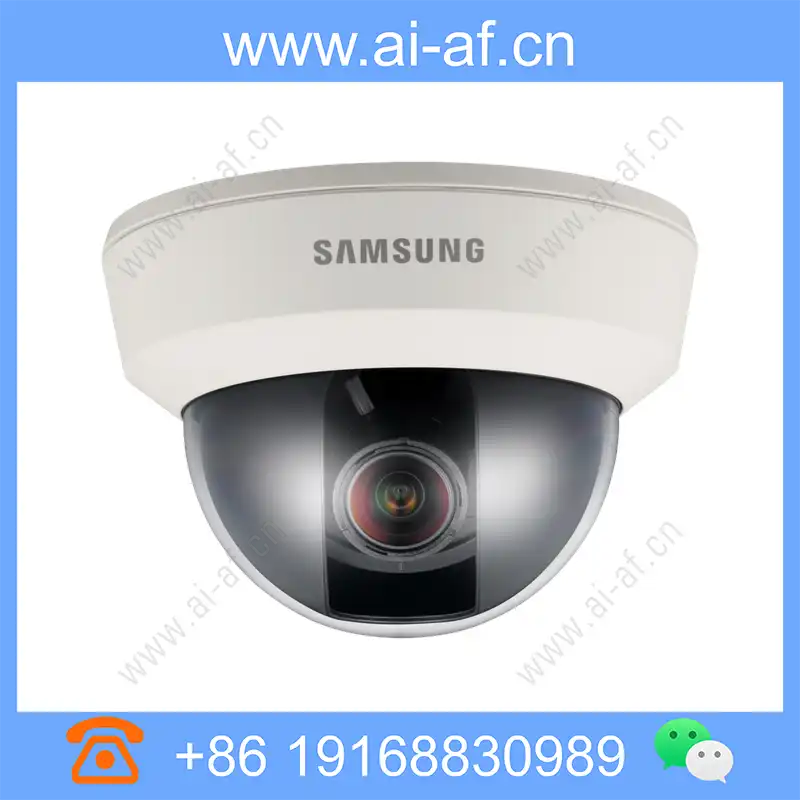

Samsung Hanwha SUD-2081 High Resolution Varifocal UTP Dome Camera

Brand: Hanwha

Model: SUD-2081

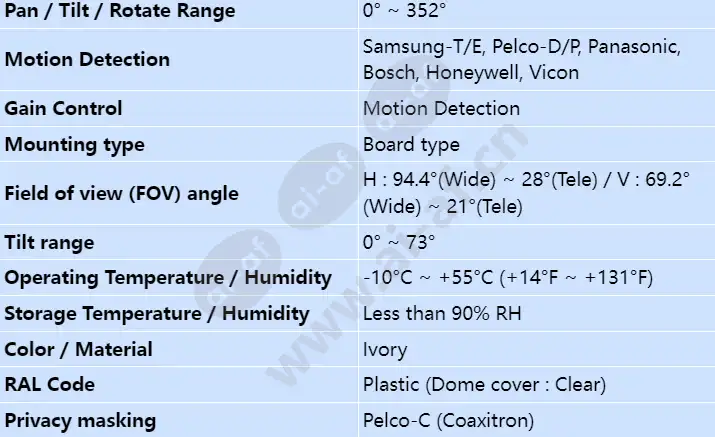

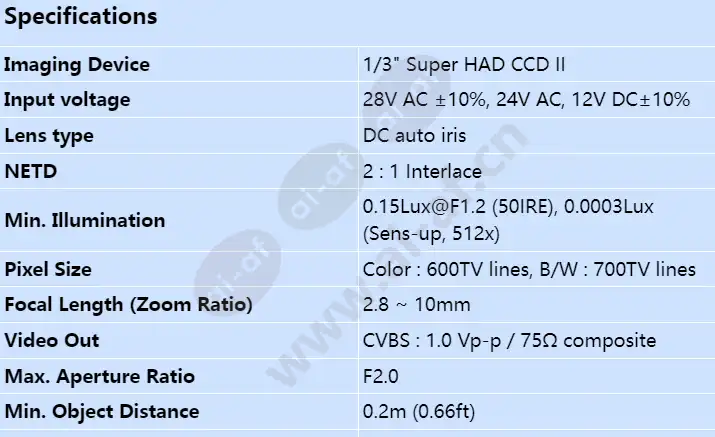

• High resolution of 600TV lines (Color) 700TV lines (B/W) • Min. illumination 0.15Lux@F1.2 (Color) • 3.6x(2.8 ~ 10mm) varifocal lens • True Day & Night (ICR), MD, SSNRIII • Built-in UTP TX, Coax : Pelco-C (Coaxitron), RS-485, 28V AC, 24V AC, 12V DC Imaging Device 1/3" Super HAD CCD II NETD 2 : 1 Interlace Pixel Size Color : 600TV lines, B/W : 700TV lines Min. Illumination 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 2.8 ~ 10mm Max. Aperture Ratio F2.0 Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele) Min. Object Distance 0.2m (0.66ft) Lens Type DC auto iris Mount Type Board type Pan / Tilt / Rotate Range 0° ~ 352° Tilt Range 0° ~ 73° Motion Detection Samsung-T/E, Pelco-D/P, Panasonic
