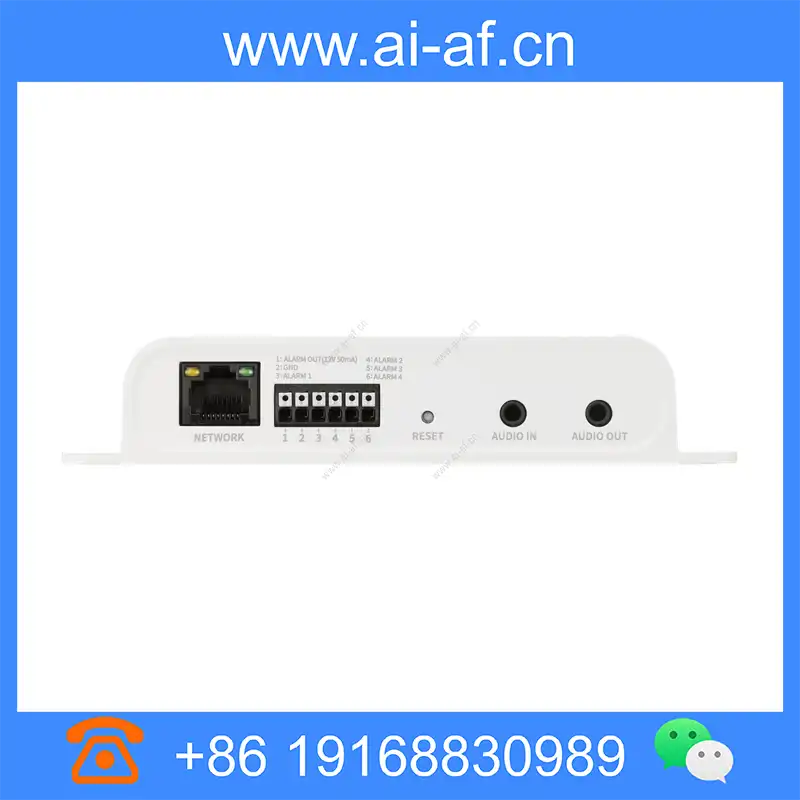

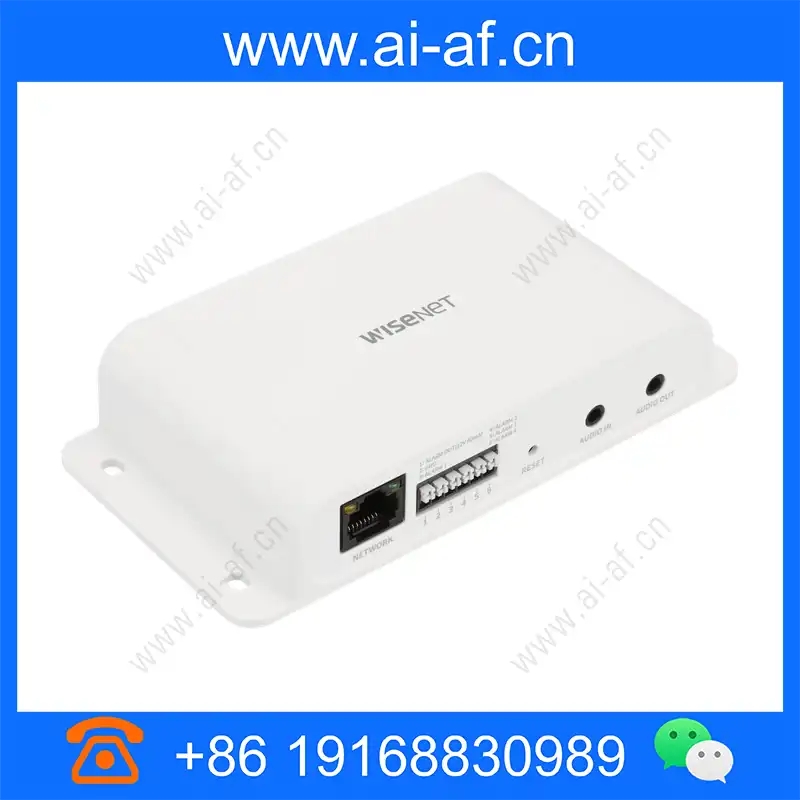

Samsung Hanwha SPM-4210 I/O Box

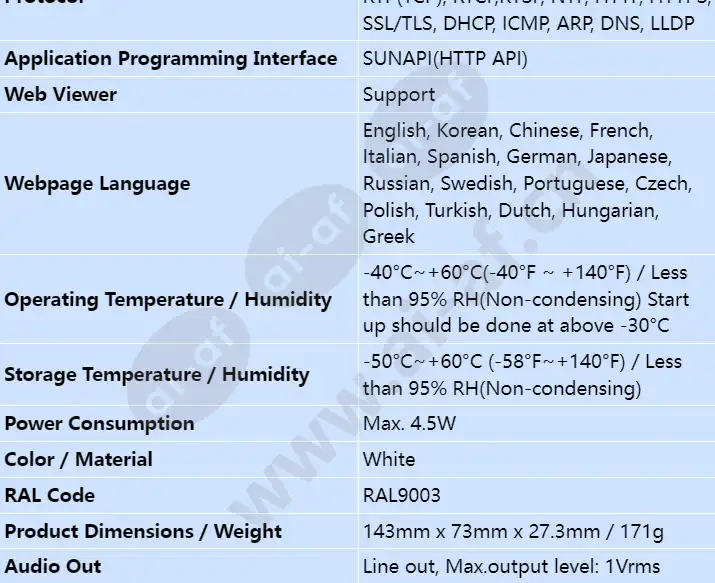

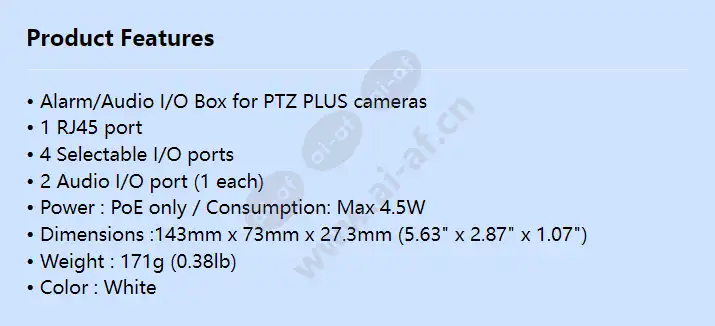

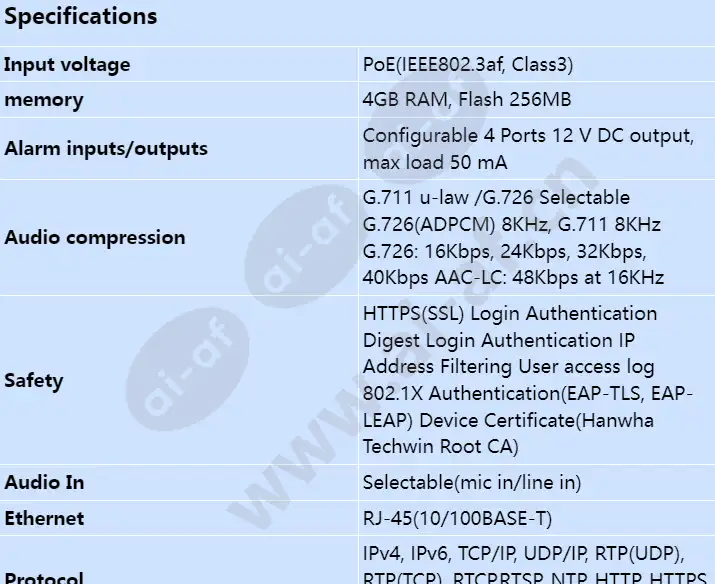

• Alarm/Audio I/O Box for PTZ PLUS cameras • 1 RJ45 port • 4 Selectable I/O ports • 2 Audio I/O port (1 each) • Power : PoE only / Consumption: Max 4.5W • Dimensions :143mm x 73mm x 27.3mm (5.63" x 2.87" x 1.07") • Weight : 171g (0.38lb) • Color : White Alarm I/O Configurable 4 Ports 12 V DC output, max load 50 mA Audio In Selectable(mic in/line in) Audio Out Line out, Max.output level: 1Vrms Ethernet RJ-45(10/100BASE-T) Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, ICMP, ARP, DNS, LLDP Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X
