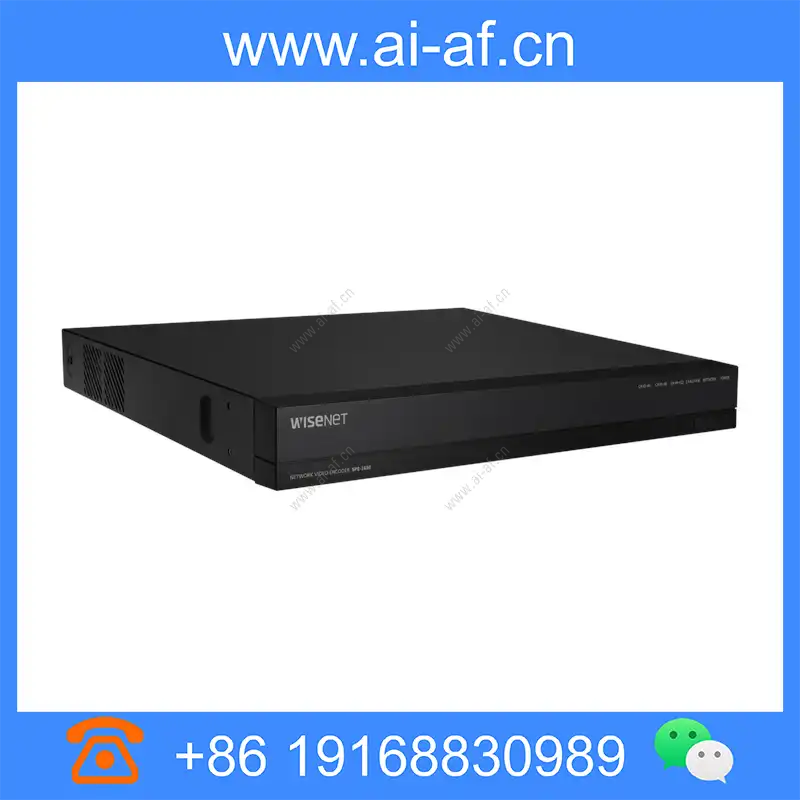

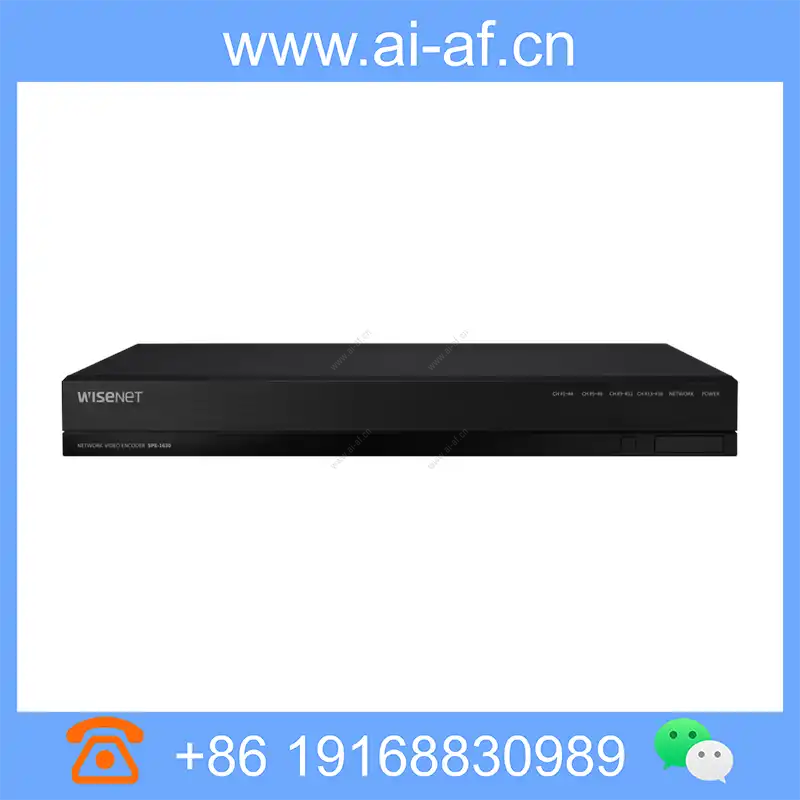

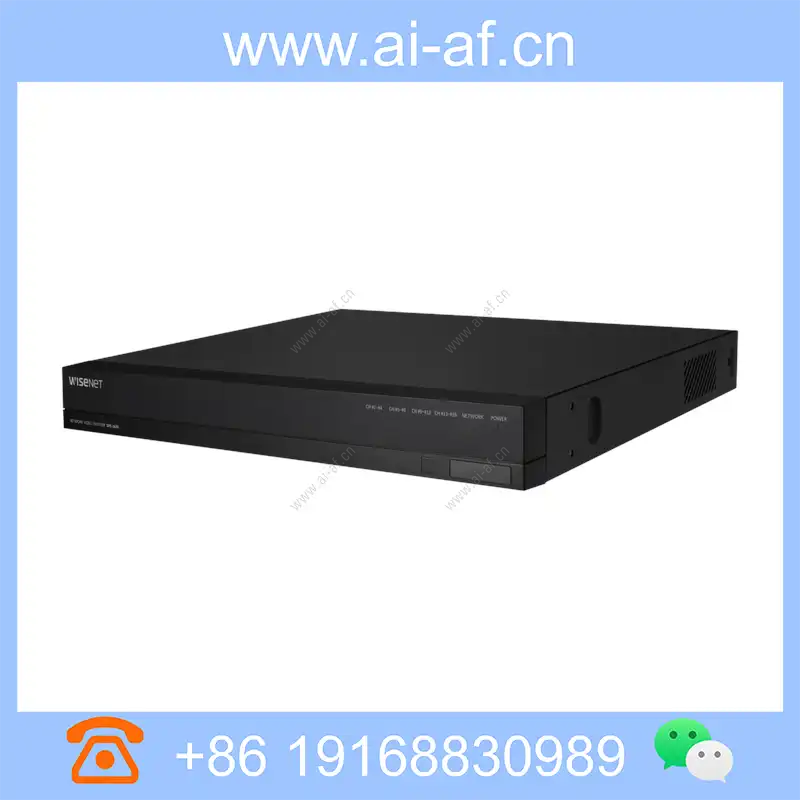

Samsung Hanwha SPE-1630 16-Channel Video Encoder

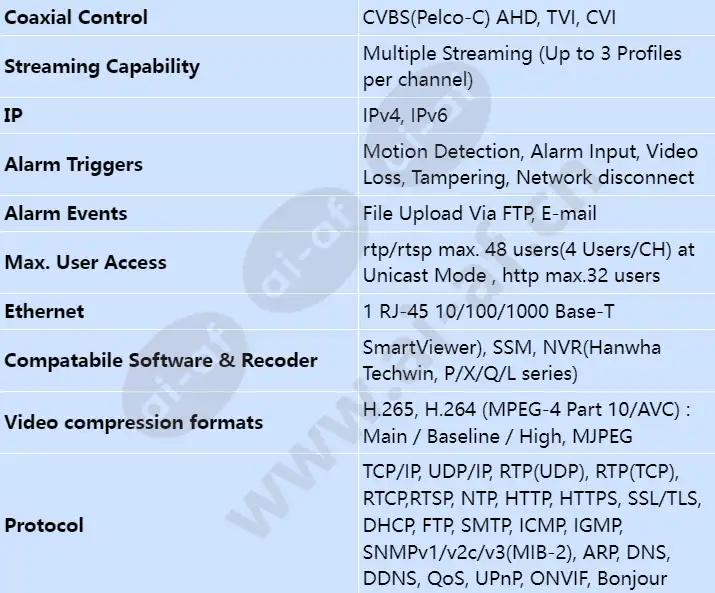

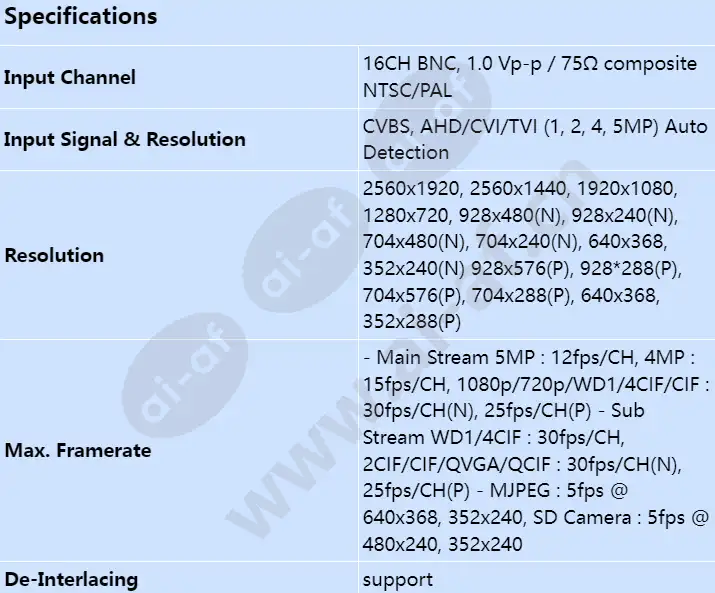

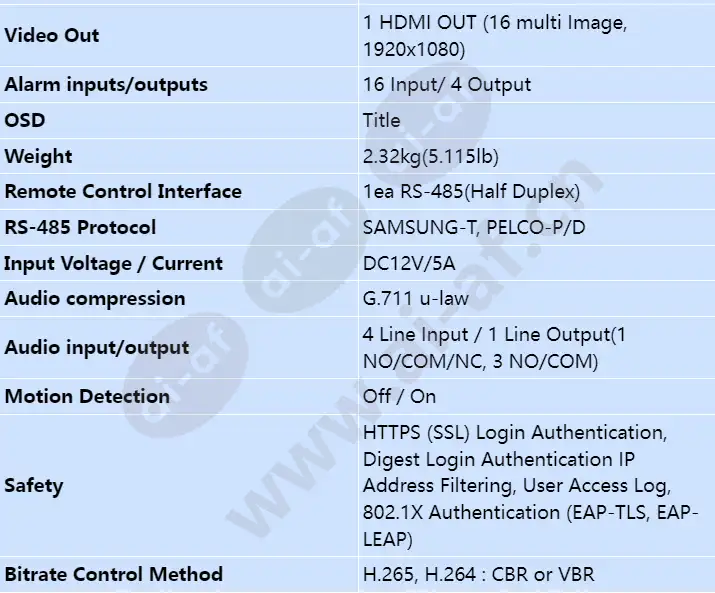

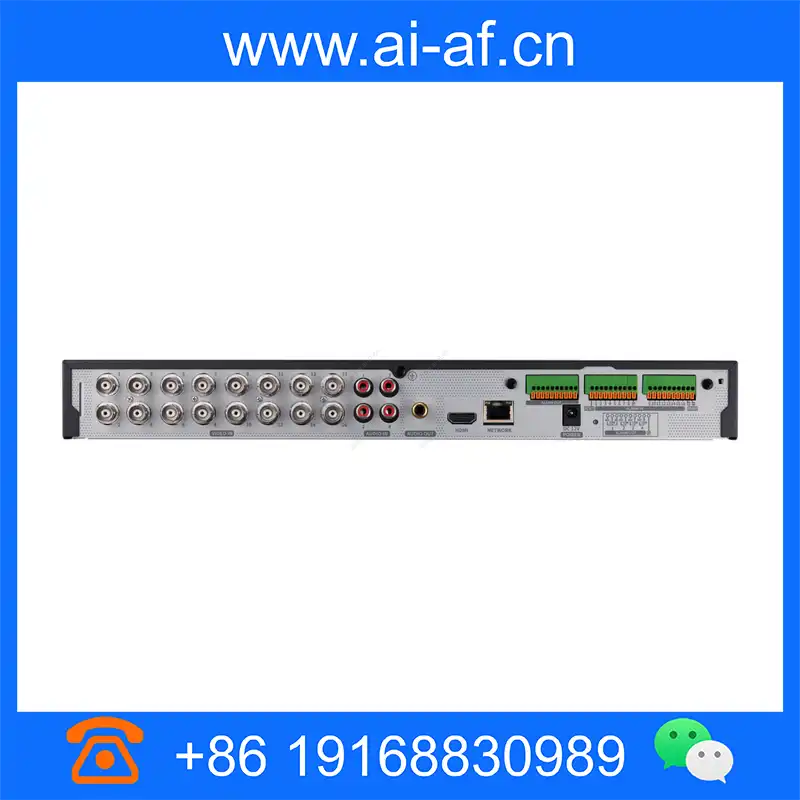

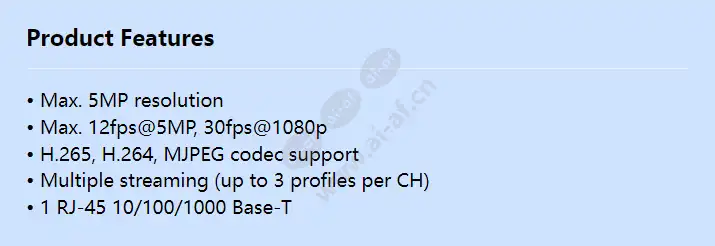

• Max. 5MP resolution • Max. 12fps@5MP, 30fps@1080p • H.265, H.264, MJPEG codec support • Multiple streaming (up to 3 profiles per CH) • 1 RJ-45 10/100/1000 Base-T Input Channel 16CH BNC, 1.0 Vp-p / 75Ω composite NTSC/PAL Input Signal & Resolution CVBS, AHD/CVI/TVI (1, 2, 4, 5MP) Auto Detection Video Out 1 HDMI OUT (16 multi Image, 1920x1080) Motion Detection Off / On Privacy Masking Off / On (4ea rectangular zones) De-Interlacing support Alarm I/O 16 Input/ 4 Output Alarm Trigger Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect Alarm Events File Upload Via FTP, E-mail Audio I/O 4 Line Input / 1 Line Output(1 NO/COM/NC, 3 NO/COM) OSD Title Remote Control Interface 1ea RS-485(Half Duplex) RS-485 Protocol SAMSUNG-T, PELCO-P/D Coaxial Control CVBS(Pelco-C) AHD
