Samsung Hanwha SNP-6230RH 2MP H.264 23x IR PTZ Camera

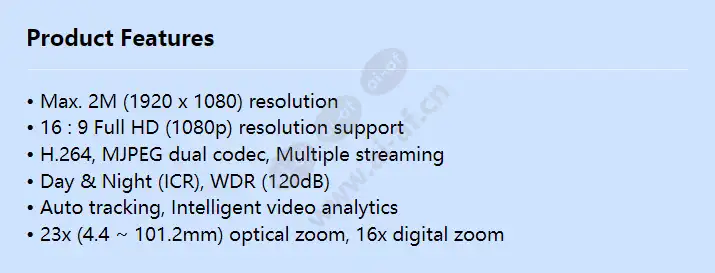

• Max. 2M (1920 x 1080) resolution • 16 : 9 Full HD (1080p) resolution support • H.264, MJPEG dual codec, Multiple streaming • Day & Night (ICR), WDR (120dB) • Auto tracking, Intelligent video analytics • 23x (4.4 ~ 101.2mm) optical zoom, 16x digital zoom Imaging Device 1/2.8" 2MP CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) Min. Illumination Color: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation Focal Length (Zoom Ratio) 4.4~101.2mm(23x) zoom Max. Aperture Ratio F1.6(Wide)~F4.5(Tele) Angular Field of View H: 63.68°(Wide)~3.1°(Tele) / V:
