Samsung Hanwha SLA-T4680DA Doorjam camera for PNM-9000QB XNB-6002

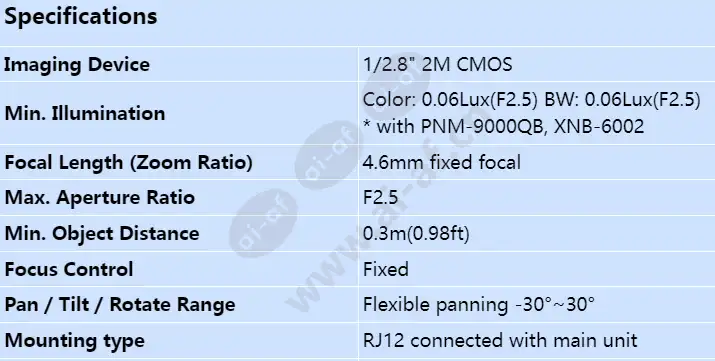

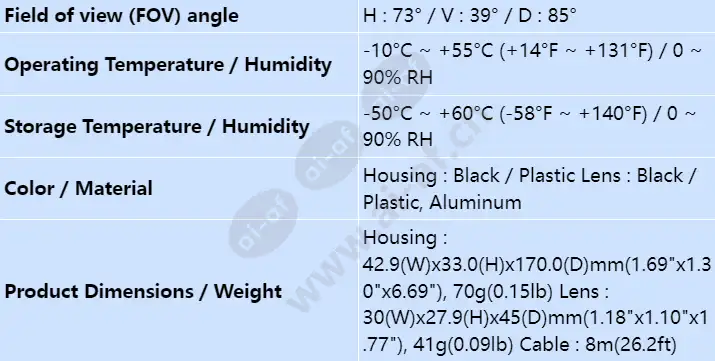

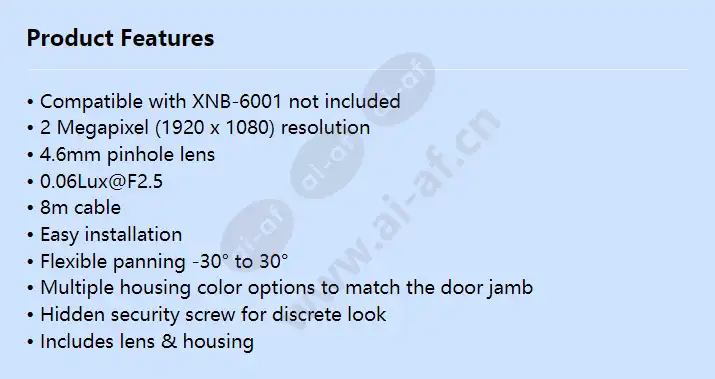

• Compatible with XNB-6001 not included • 2 Megapixel (1920 x 1080) resolution • 4.6mm pinhole lens • 0.06Lux@F2.5 • 8m cable • Easy installation • Flexible panning -30° to 30° • Multiple housing color options to match the door jamb • Hidden security screw for discrete look • Includes lens & housing Imaging Device 1/2.8" 2M CMOS Min. Illumination Color: 0.06Lux(F2.5) BW: 0.06Lux(F2.5) * with PNM-9000QB, XNB-6002 Focal Length (Zoom Ratio) 4.6mm fixed focal Max. Aperture Ratio F2.5 Angular Field of View H : 73° / V : 39° / D : 85° Min. Object Distance 0.3m(0.98ft) Focus Control Fixed Mount Type RJ12 connected with main unit Pan / Tilt / Rotate Range Flexible panning -30°~30° Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / 0 ~ 90% RH Storage Temperature / Humidity -50°C ~
