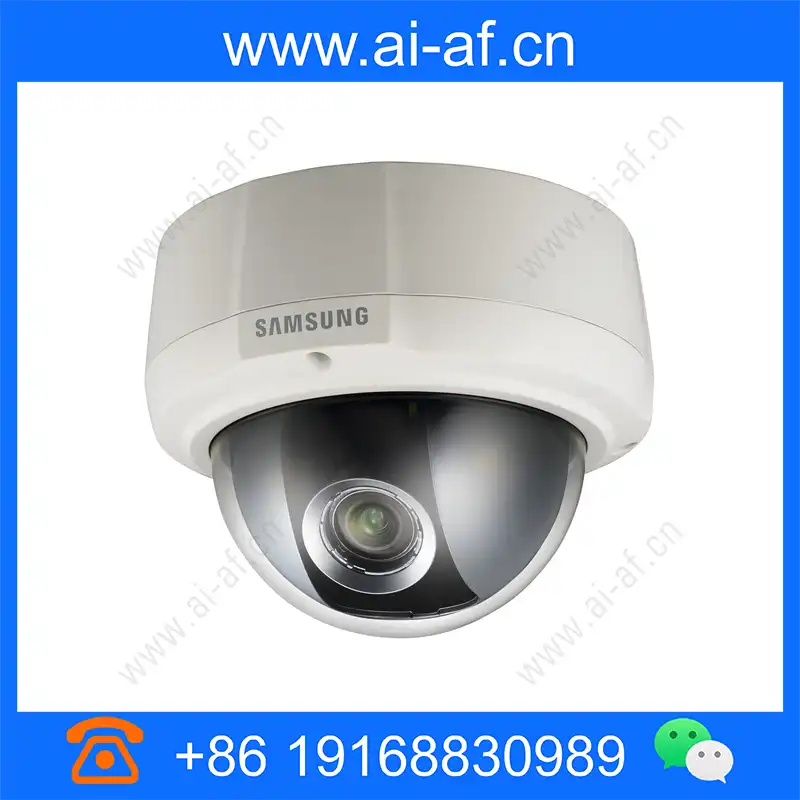

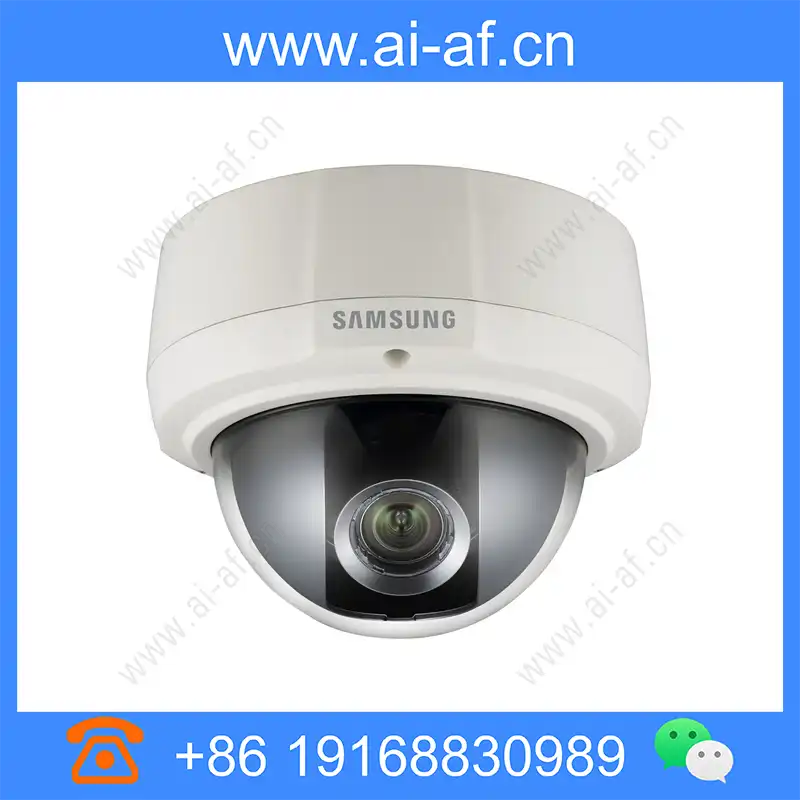

Samsung Hanwha SCV-3083 High Resolution WDR Vandal-resistant Dome Camera

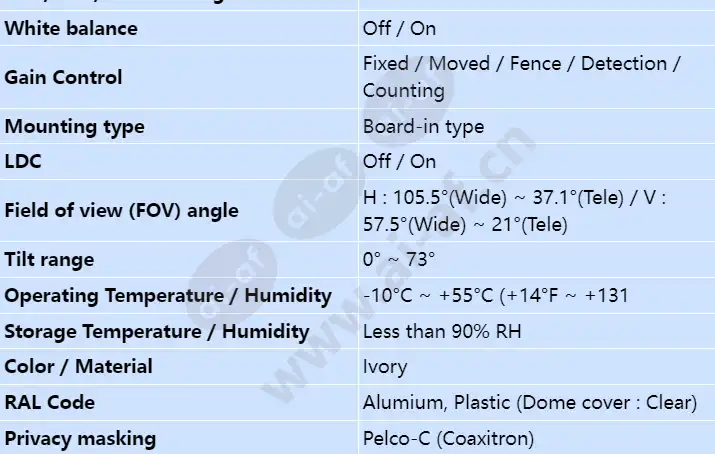

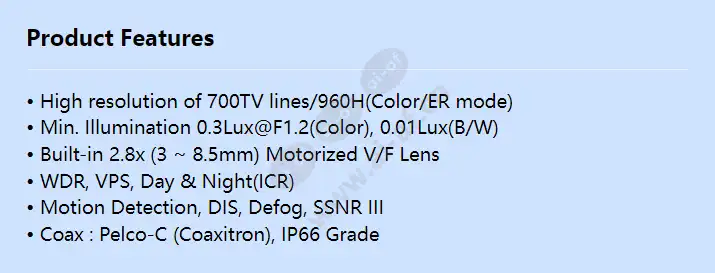

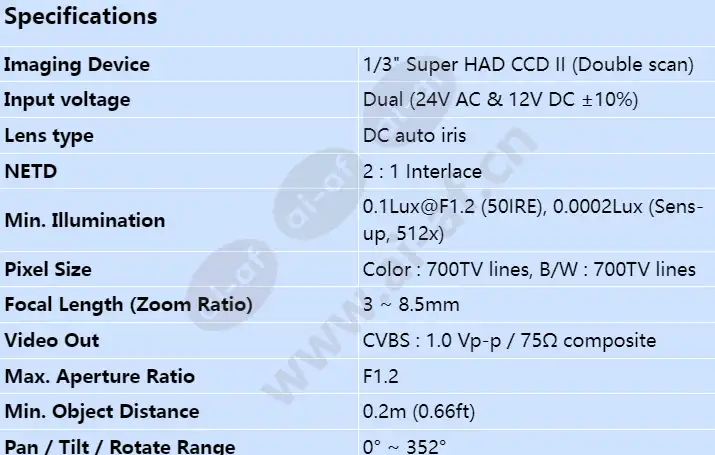

• High resolution of 700TV lines/960H(Color/ER mode) • Min. Illumination 0.3Lux@F1.2(Color), 0.01Lux(B/W) • Built-in 2.8x (3 ~ 8.5mm) Motorized V/F Lens • WDR, VPS, Day & Night(ICR) • Motion Detection, DIS, Defog, SSNR III • Coax : Pelco-C (Coaxitron), IP66 Grade Imaging Device 1/3" Super HAD CCD II (Double scan) NETD 2 : 1 Interlace Pixel Size Color : 700TV lines, B/W : 700TV lines Min. Illumination 0.1Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 3 ~ 8.5mm Max. Aperture Ratio F1.2 Angular Field of View H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21°(Tele) Min. Object Distance 0.2m (0.66ft) Lens Type DC auto iris Mount Type Board-in type Pan / Tilt / Rotate Range 0° ~ 352° Tilt Range 0° ~ 73° Privacy Masking Pelco-C
