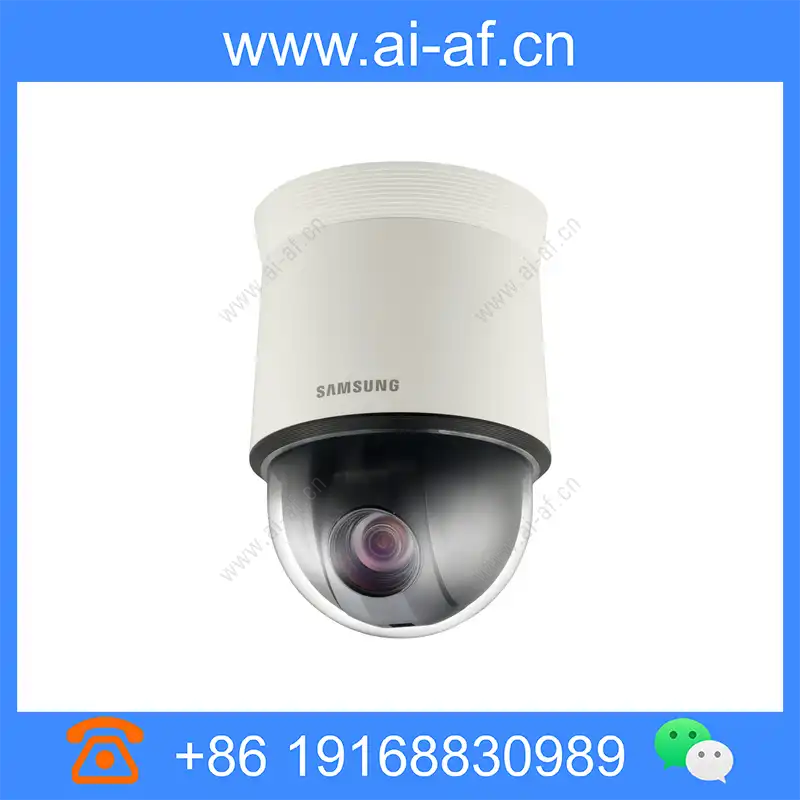

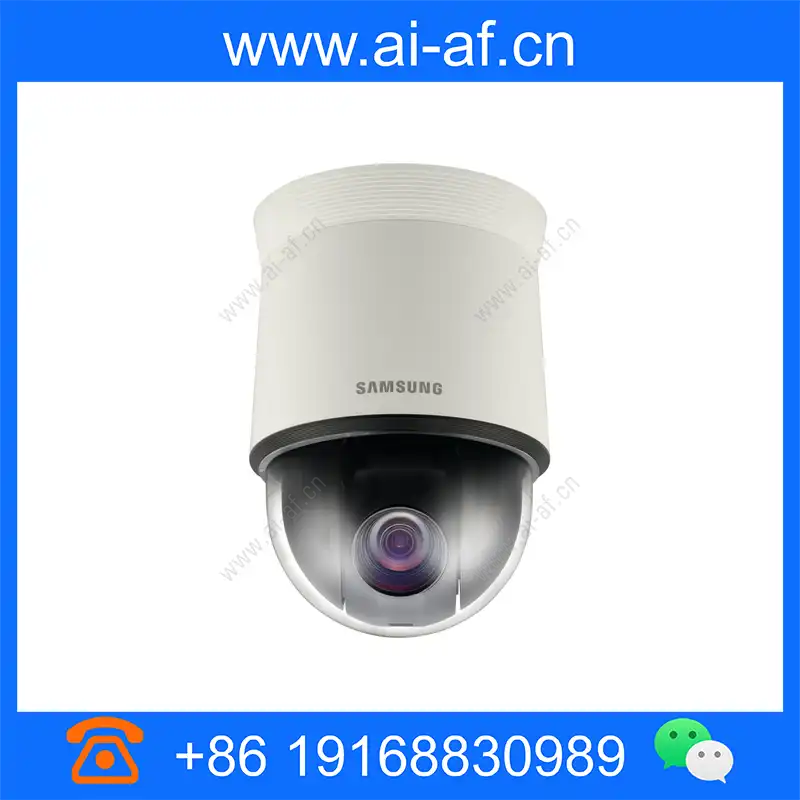

Samsung Hanwha SCP-2273 High Resolution 27x PTZ Dome Camera

Brand: Hanwha

Model: SCP-2273

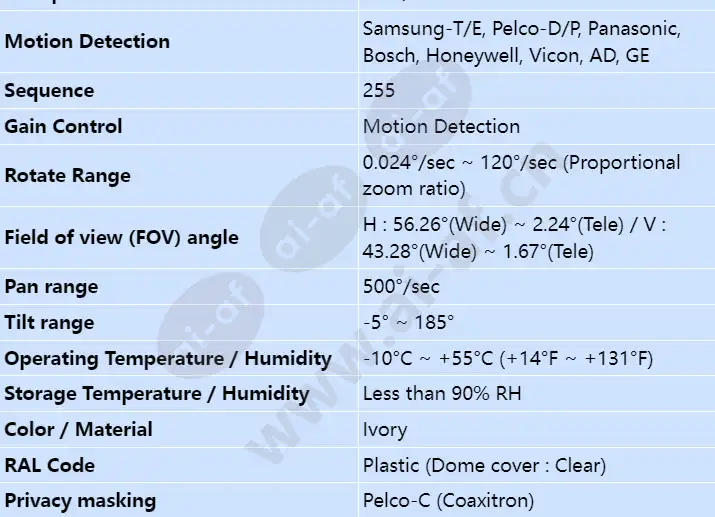

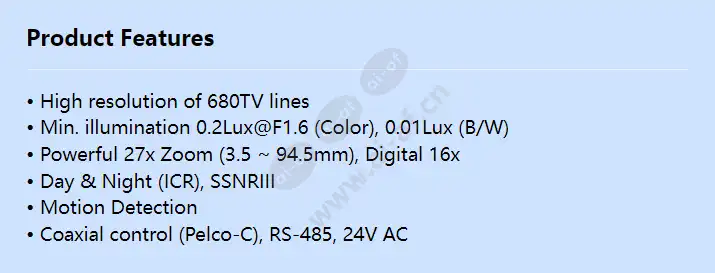

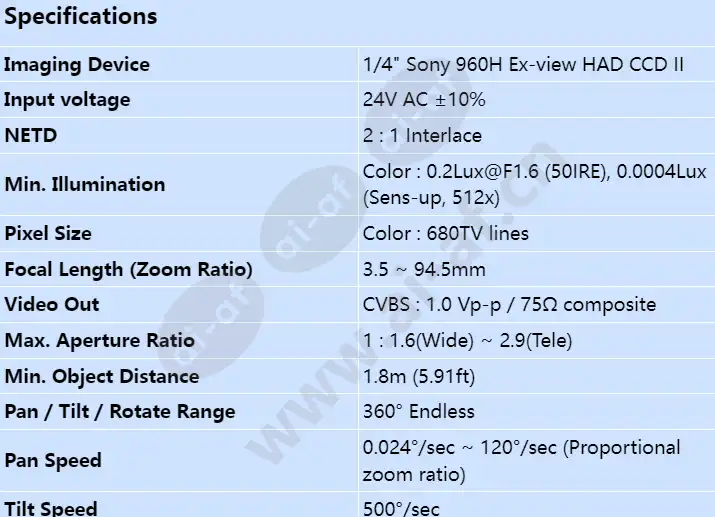

• High resolution of 680TV lines • Min. illumination 0.2Lux@F1.6 (Color), 0.01Lux (B/W) • Powerful 27x Zoom (3.5 ~ 94.5mm), Digital 16x • Day & Night (ICR), SSNRIII • Motion Detection • Coaxial control (Pelco-C), RS-485, 24V AC Imaging Device 1/4" Sony 960H Ex-view HAD CCD II NETD 2 : 1 Interlace Pixel Size Color : 680TV lines Min. Illumination Color : 0.2Lux@F1.6 (50IRE), 0.0004Lux (Sens-up, 512x) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 3.5 ~ 94.5mm Max. Aperture Ratio 1 : 1.6(Wide) ~ 2.9(Tele) Angular Field of View H : 56.26°(Wide) ~ 2.24°(Tele) / V : 43.28°(Wide) ~ 1.67°(Tele) Min. Object Distance 1.8m (5.91ft) Pan / Tilt / Rotate Range 360° Endless Pan Range 500°/sec Pan Speed 0.024°/sec ~ 120°/sec (Proportional zoom ratio) Tilt Range -5° ~ 185° Tilt Speed
