Samsung Hanwha SCD-5082 1000TVL (1280H) Varifocal Dome Camera

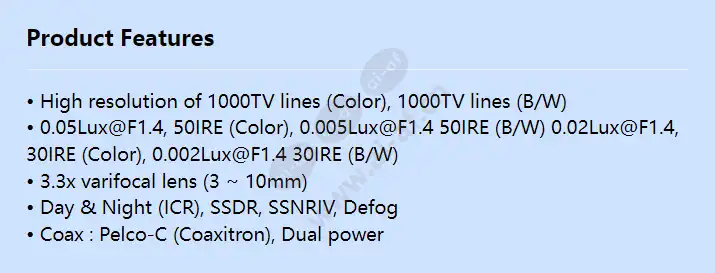

• High resolution of 1000TV lines (Color), 1000TV lines (B/W) • 0.05Lux@F1.4, 50IRE (Color), 0.005Lux@F1.4 50IRE (B/W) 0.02Lux@F1.4, 30IRE (Color), 0.002Lux@F1.4 30IRE (B/W) • 3.3x varifocal lens (3 ~ 10mm) • Day & Night (ICR), SSDR, SSNRIV, Defog • Coax : Pelco-C (Coaxitron), Dual power Imaging Device 1/3" 1.3M CMOS NETD Progressive Pixel Size Color : 1000 TVL, B/W : 1000 TVL Min. Illumination 0.05Lux (F1.4, 50IRE), 0.001Lux (1sec, F1.4, 50IRE) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 3~10mm Max. Aperture Ratio F1.4 Angular Field of View H: 82.0°(Wide)~26.5°(Tele), V: 59.7°(Wide)~19.9°(Tele) Min. Object Distance 0.5m (1.64ft) Lens Type DC Auto Iris Mount Type Board type Privacy Masking Pelco-C (Coaxitron) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~
