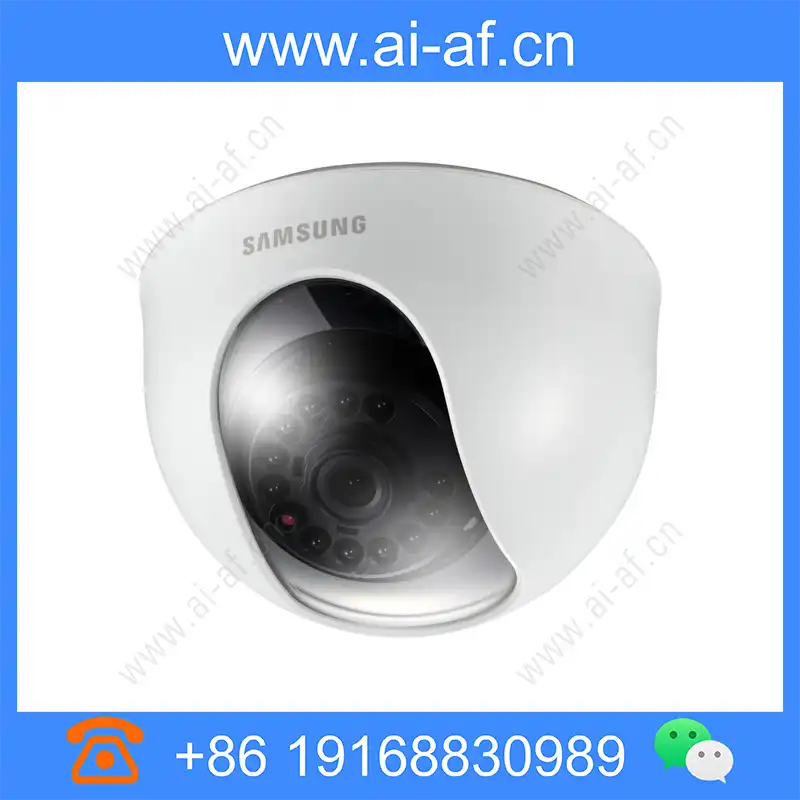

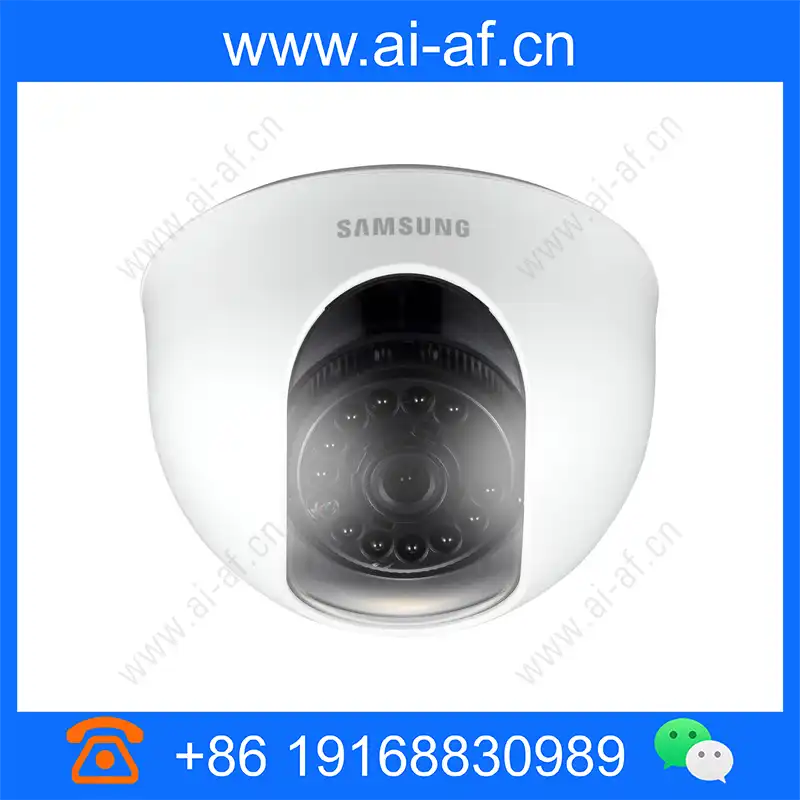

Samsung Hanwha SCD-1020R Small IR Dome Camera

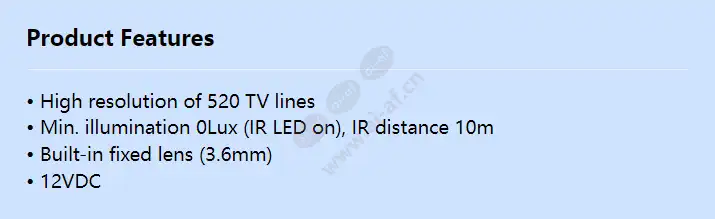

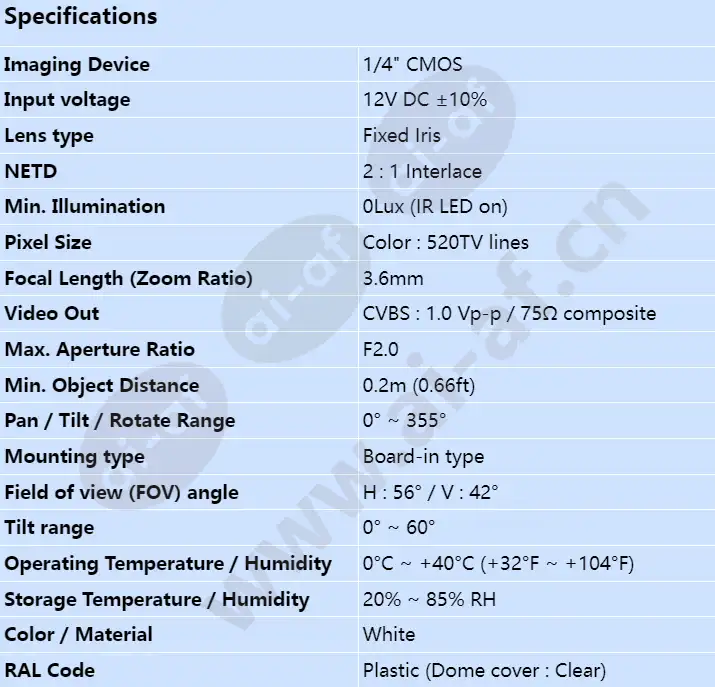

• High resolution of 520 TV lines • Min. illumination 0Lux (IR LED on), IR distance 10m • Built-in fixed lens (3.6mm) • 12VDC Imaging Device 1/4" CMOS NETD 2 : 1 Interlace Pixel Size Color : 520TV lines Min. Illumination 0Lux (IR LED on) Video Out CVBS : 1.0 Vp-p / 75Ω composite Focal Length (Zoom Ratio) 3.6mm Max. Aperture Ratio F2.0 Angular Field of View H : 56° / V : 42° Min. Object Distance 0.2m (0.66ft) Lens Type Fixed Iris Mount Type Board-in type Pan / Tilt / Rotate Range 0° ~ 355° Tilt Range 0° ~ 60° Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) Storage Temperature / Humidity 20% ~ 85% RH Input Voltage 12V DC ±10% Color / Material White RAL Code Plastic (Dome cover : Clear)
