Samsung Hanwha SCB-5003 1280H WDR Box Camera

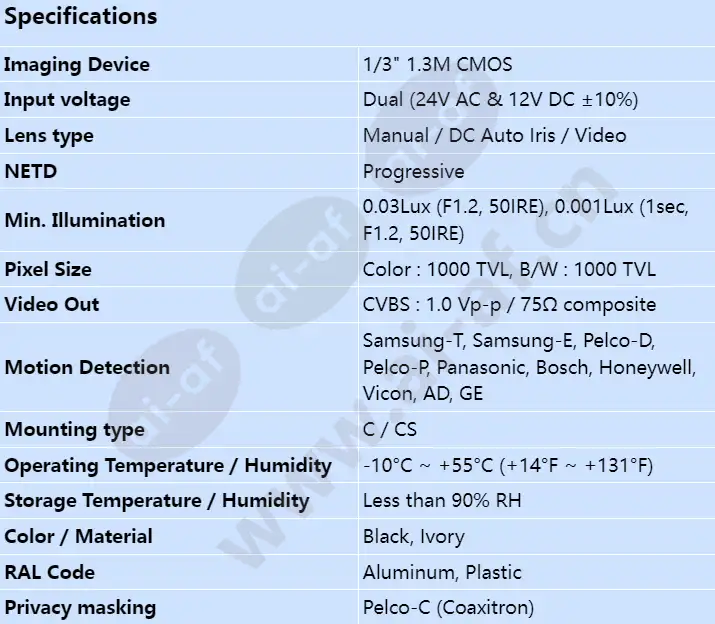

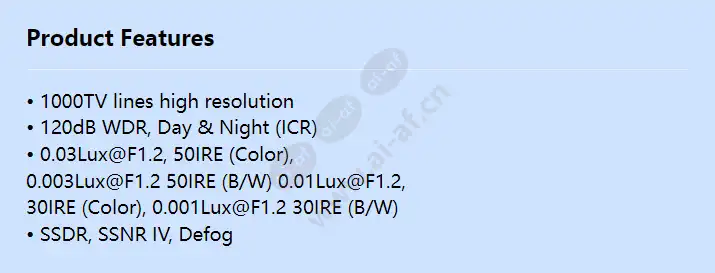

• 1000TV lines high resolution • 120dB WDR, Day & Night (ICR) • 0.03Lux@F1.2, 50IRE (Color), 0.003Lux@F1.2 50IRE (B/W) 0.01Lux@F1.2, 30IRE (Color), 0.001Lux@F1.2 30IRE (B/W) • SSDR, SSNR IV, Defog Imaging Device 1/3" 1.3M CMOS NETD Progressive Pixel Size Color : 1000 TVL, B/W : 1000 TVL Min. Illumination 0.03Lux (F1.2, 50IRE), 0.001Lux (1sec, F1.2, 50IRE) Video Out CVBS : 1.0 Vp-p / 75Ω composite Lens Type Manual / DC Auto Iris / Video Mount Type C / CS Motion Detection Samsung-T, Samsung-E, Pelco-D, Pelco-P, Panasonic, Bosch, Honeywell, Vicon, AD, GE Privacy Masking Pelco-C (Coaxitron) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) Storage Temperature / Humidity Less than 90% RH Input Voltage Dual (24V AC & 12V DC ±10%) Color / Material Black, Ivory RAL Code Aluminum
