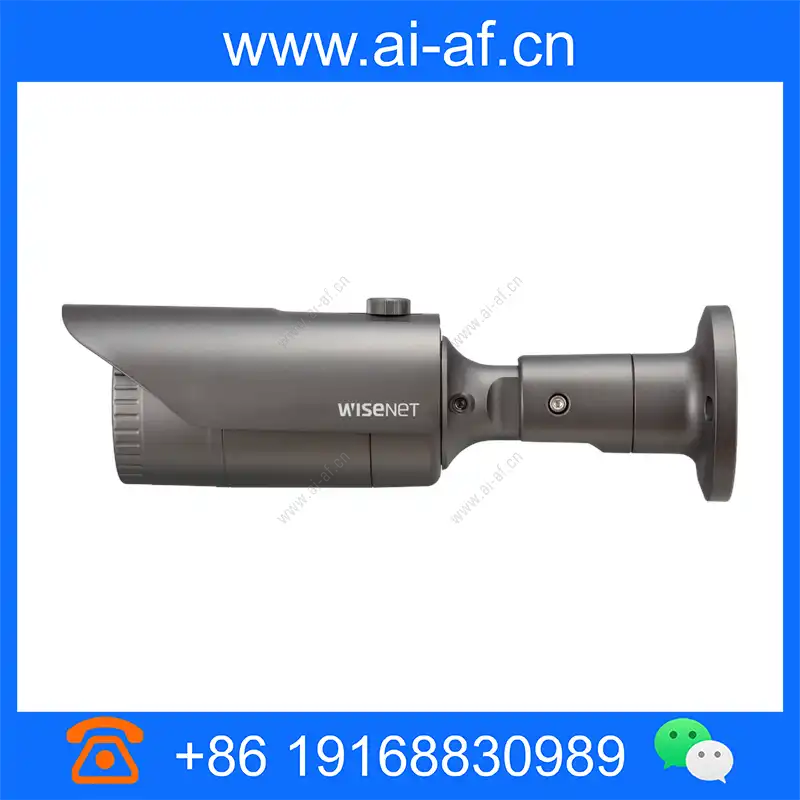

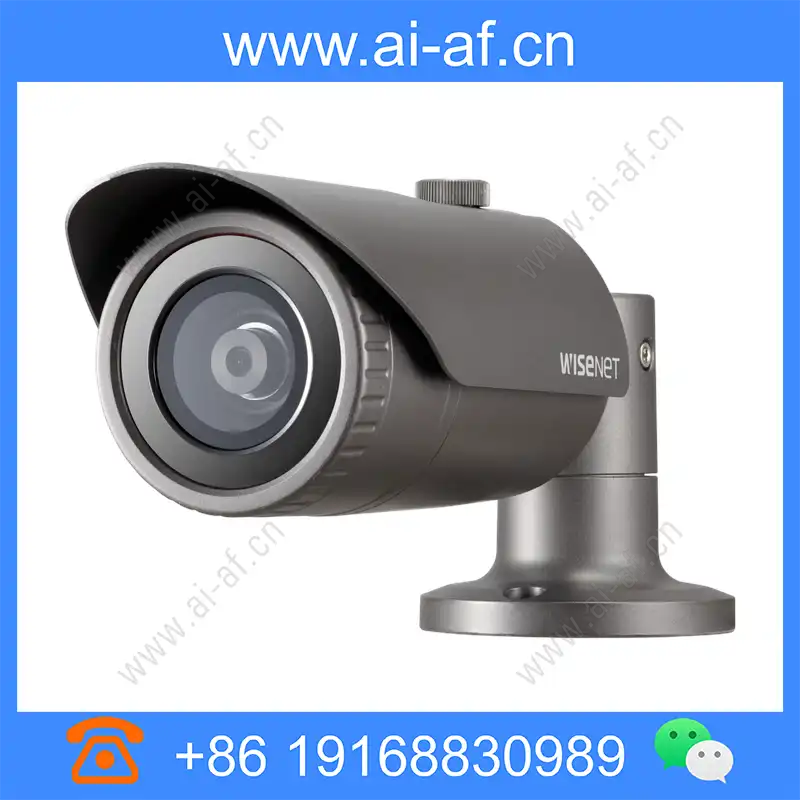

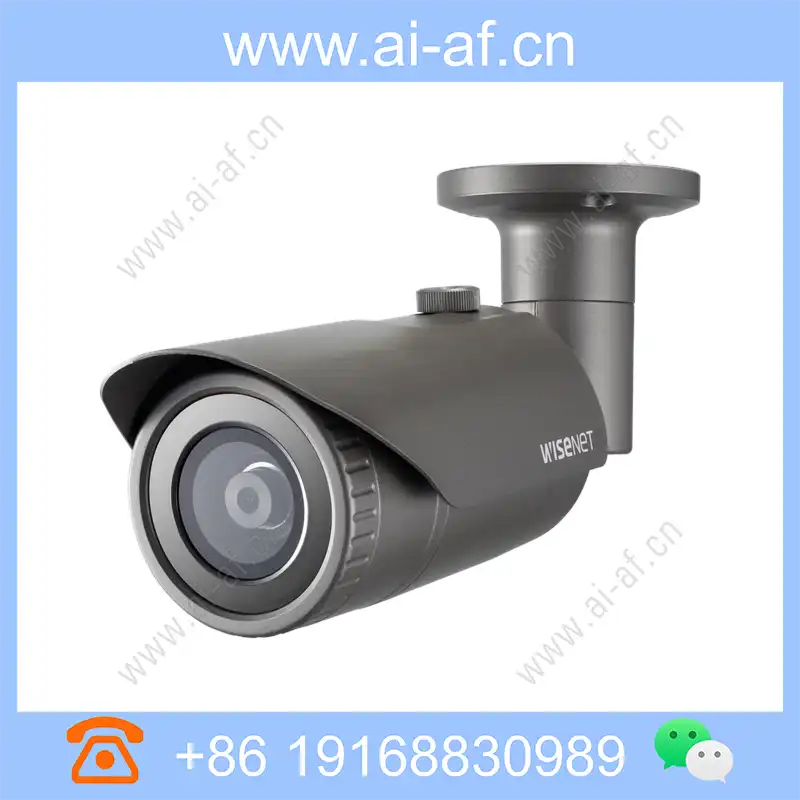

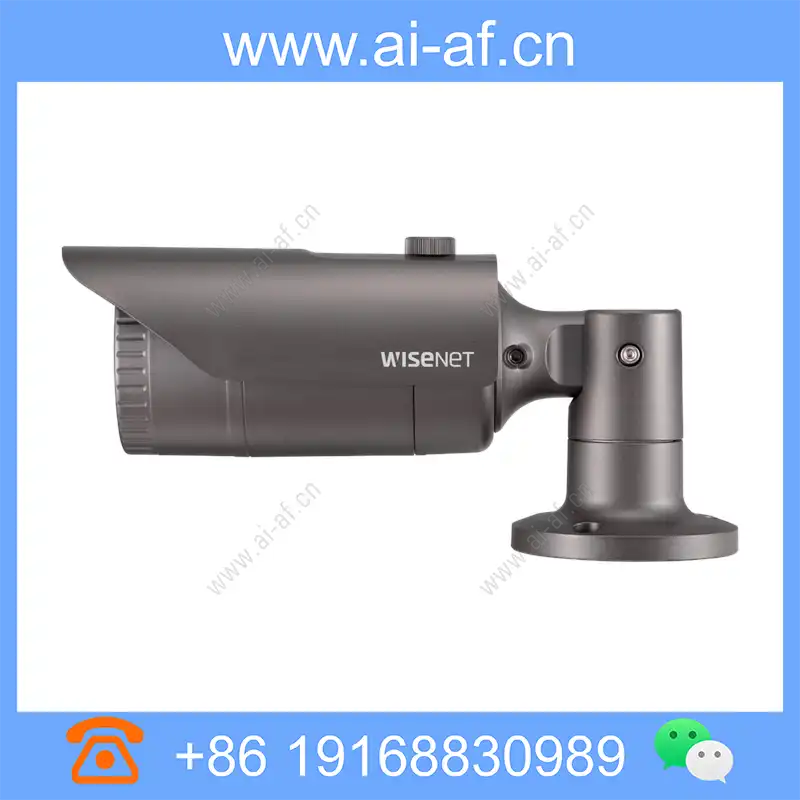

Samsung Hanwha QNO-7022R 4MP IR Bullet Camera

Brand: Hanwha
Model: QNO-7022R

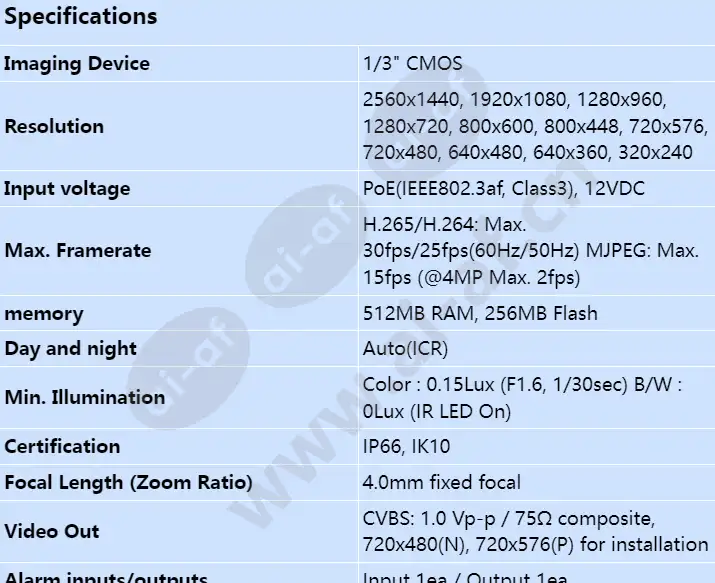

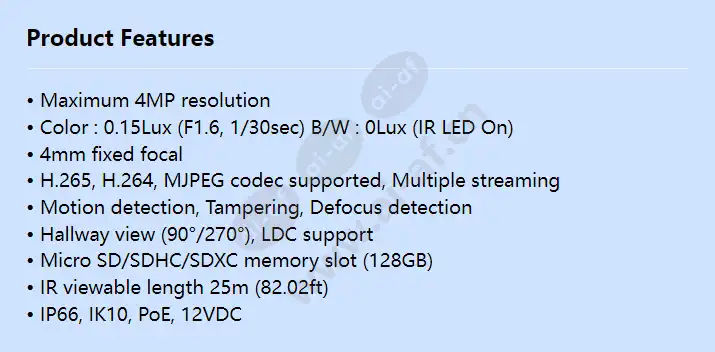

• Maximum 4MP resolution • Color : 0.15Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On) • 4mm fixed focal • H.265, H.264, MJPEG codec supported, Multiple streaming • Motion detection, Tampering, Defocus detection • Hallway view (90°/270°), LDC support • Micro SD/SDHC/SDXC memory slot (128GB) • IR viewable length 25m (82.02ft) • IP66, IK10, PoE, 12VDC Imaging Device 1/3" CMOS Resolution 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@4MP Max. 2fps) Min. Illumination Color : 0.15Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On) Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation Focal Length (Zoom Ratio) 4.0mm fixed focal Max. Aperture Ratio

qno-7022r_f_en.webpqno-7022r_s_en-00.webpqno-7022r_s_en-01.webpqno-7022r_s_en-02.webpqno-7022r_s_en-03.webpqno-7022r_s_en-04.webp
