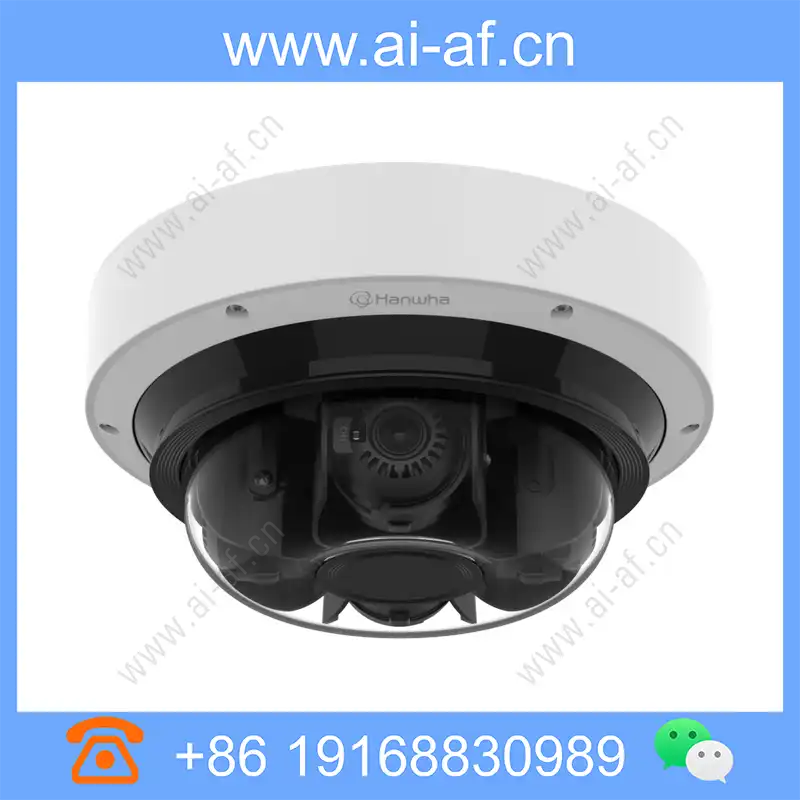

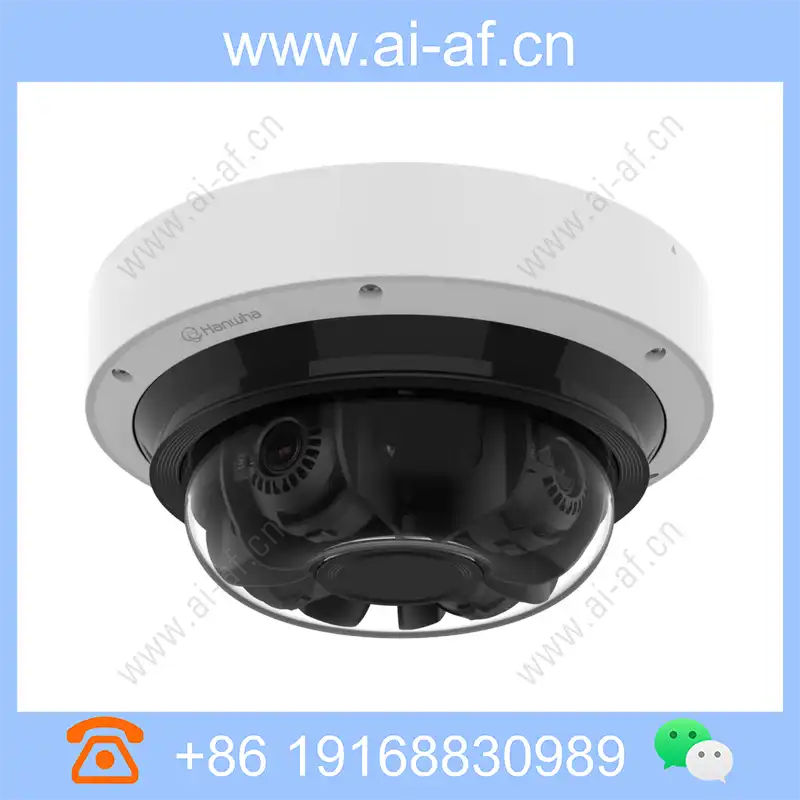

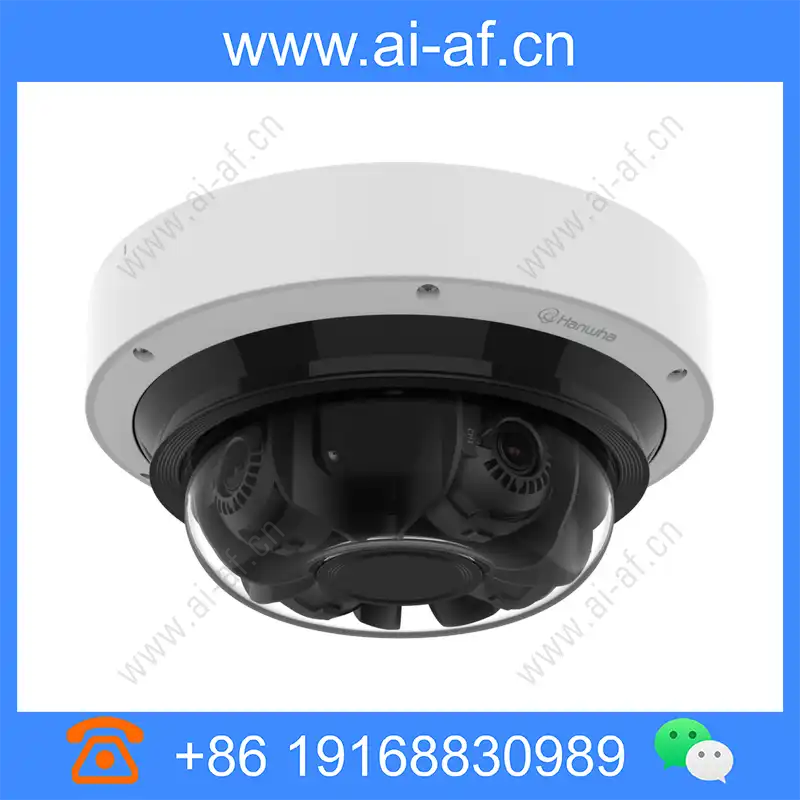

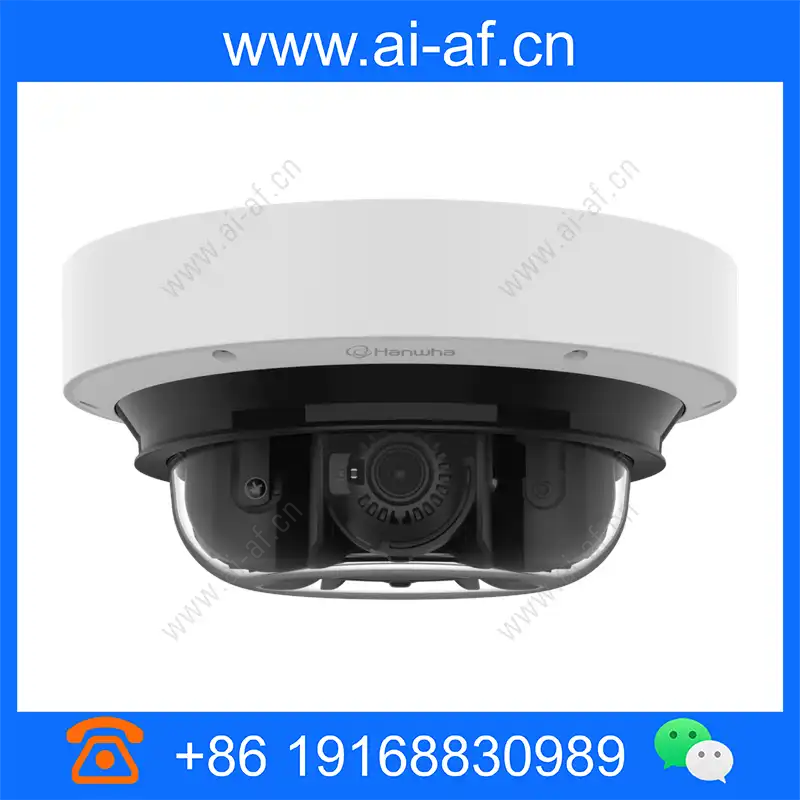

Samsung Hanwha PNM-C32083RVQ 4K x 4-Channel AI Camera

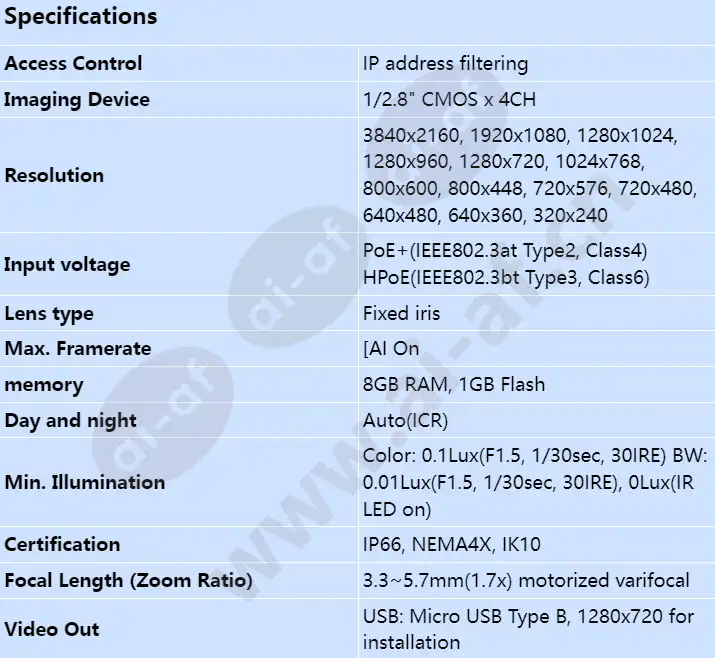

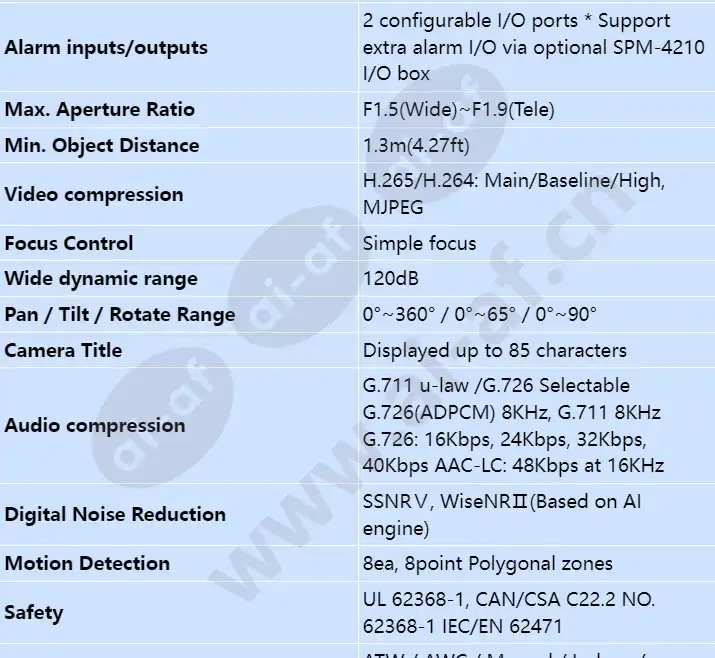

• Analytics events based on AI engine: Classified object (Person/Vehicle) • Attributes (Vehicle type: Car/Bus/Truck/Motorcycle/Bicycle) • Supports BestShot • WiseNRⅡ, Prefer shutter control, WiseStreamⅢ • TPM 2.0 with FIPS 140-2 level2 • IP66, IK10, NEMA4X Imaging Device 1/2.8" CMOS x 4CH Resolution 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate [AI On Min. Illumination Color: 0.1Lux(F1.5, 1/30sec, 30IRE) BW: 0.01Lux(F1.5, 1/30sec, 30IRE), 0Lux(IR LED on) Video Out USB: Micro USB Type B, 1280x720 for installation Focal Length (Zoom Ratio) 3.3~5.7mm(1.7x) motorized varifocal Max. Aperture Ratio F1.5(Wide)~F1.9(Tele) Angular Field of View H: 109°(Wide)~56°(Tele) V: 55°(Wide)~31°(Tele) D:
