Samsung Hanwha HRX-835A 8-Channel Pentabrid Digital Video Recorder

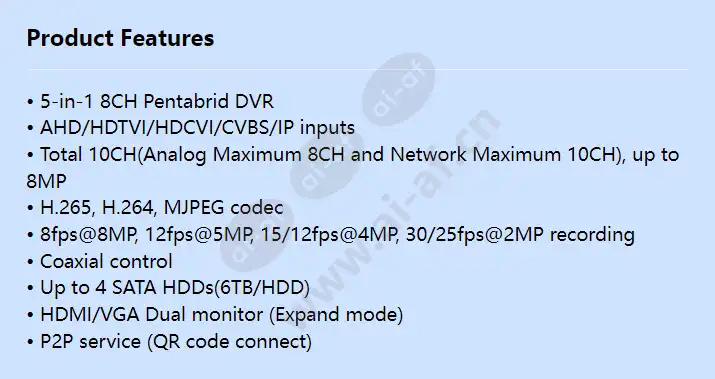

• 5-in-1 8CH Pentabrid DVR • AHD/HDTVI/HDCVI/CVBS/IP inputs • Total 10CH(Analog Maximum 8CH and Network Maximum 10CH), up to 8MP • H.265, H.264, MJPEG codec • 8fps@8MP, 12fps@5MP, 15/12fps@4MP, 30/25fps@2MP recording • Coaxial control • Up to 4 SATA HDDs(6TB/HDD) • HDMI/VGA Dual monitor (Expand mode) • P2P service (QR code connect) Inputs 8CH(1Vp-p 75ohm, BNC) Signal Type AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(8MP, 5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) Resolution 8MP ~ CIF Protocols SUNAPI(Wisenet), ONVIF Local Display 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 Compression H.265, H.264, MJPEG Record Rate(Analog) (Main Stream, NT/PAL) 8M 8/8fps, 5M 12/12fps, 4M
