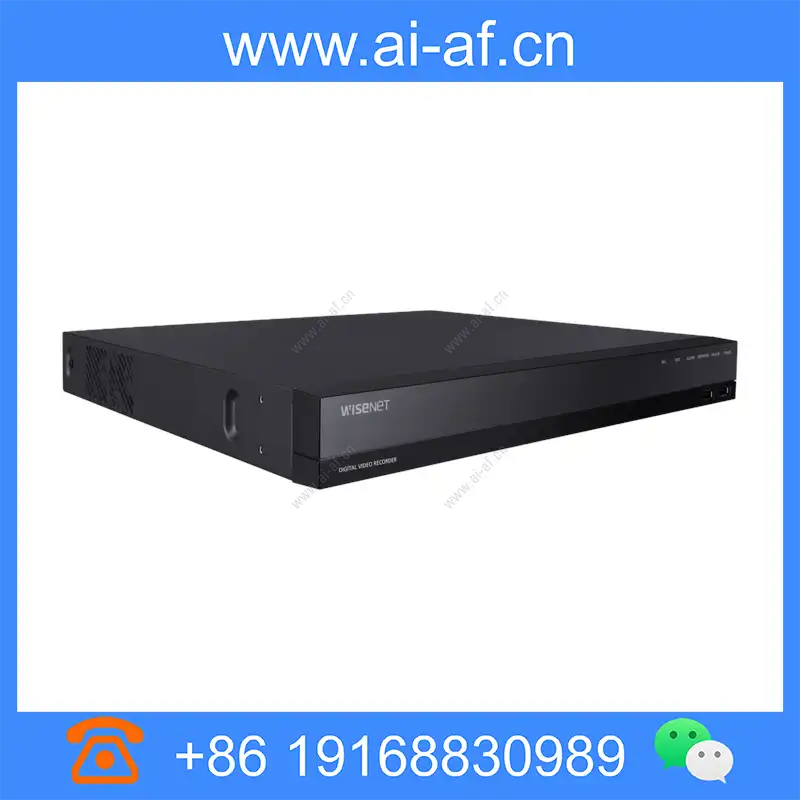

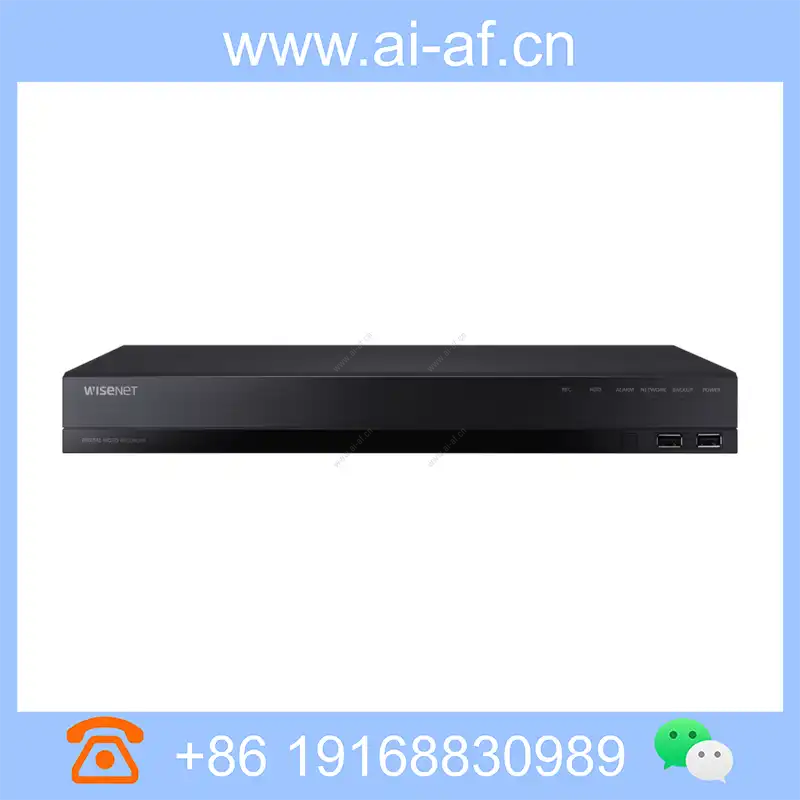

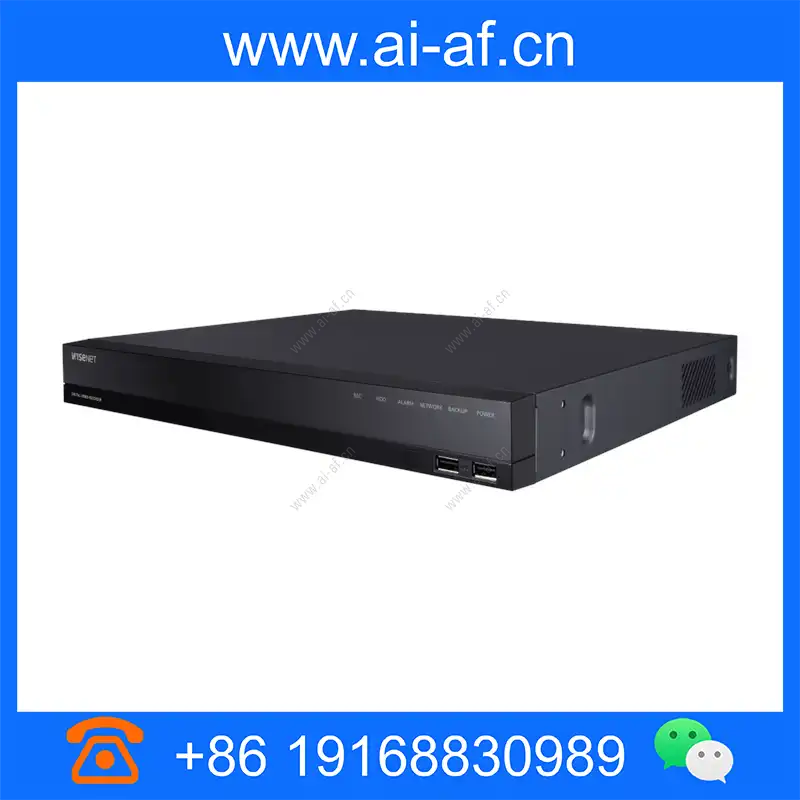

Samsung Hanwha HRX-820 8-Channel Pentabrid Digital Video Recorder

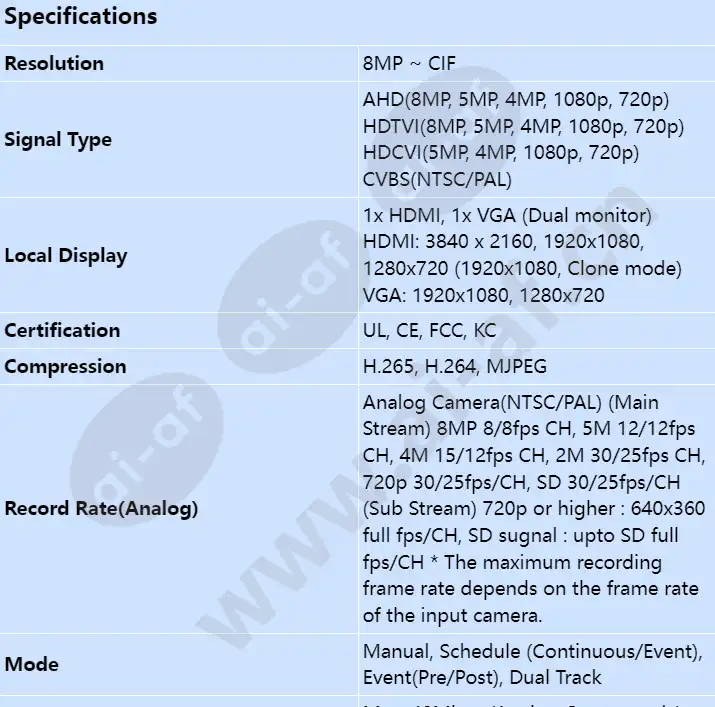

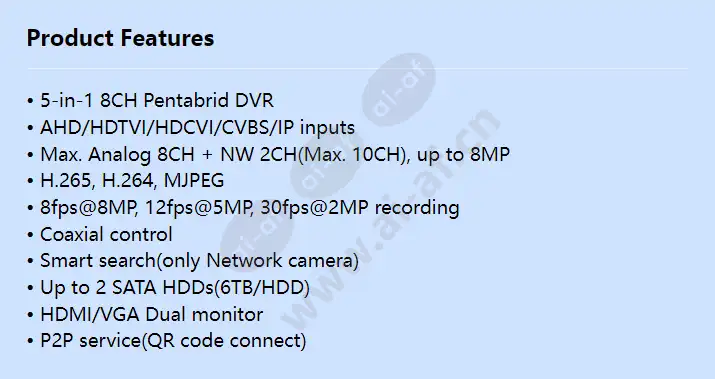

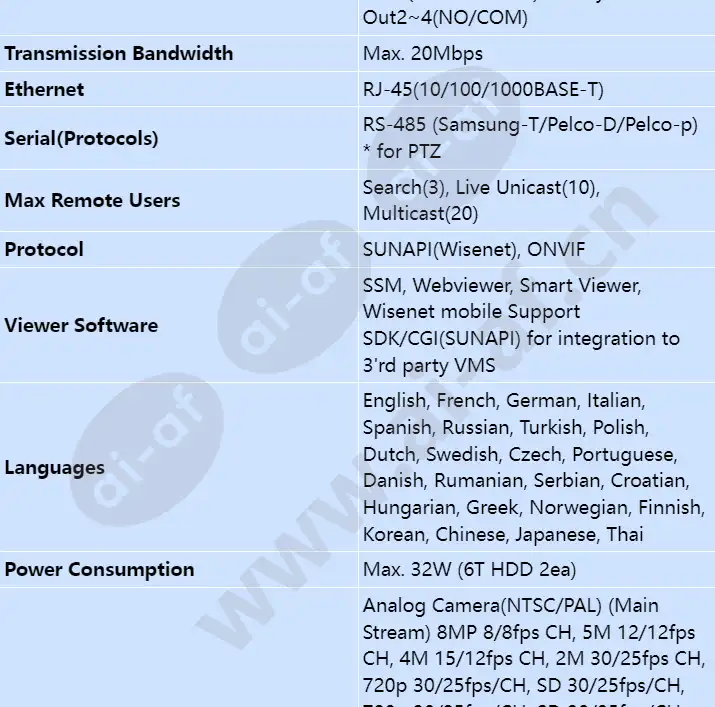

• 5-in-1 8CH Pentabrid DVR • AHD/HDTVI/HDCVI/CVBS/IP inputs • Max. Analog 8CH + NW 2CH(Max. 10CH), up to 8MP • H.265, H.264, MJPEG • 8fps@8MP, 12fps@5MP, 30fps@2MP recording • Coaxial control • Smart search(only Network camera) • Up to 2 SATA HDDs(6TB/HDD) • HDMI/VGA Dual monitor • P2P service(QR code connect) Inputs 8CH(1Vp-p 75ohm, BNC) Signal Type AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) Resolution 8MP ~ CIF Protocols SUNAPI(Wisenet), ONVIF Local Display 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode) VGA: 1920x1080, 1280x720 Compression H.265, H.264, MJPEG Record Rate(Analog) Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps
