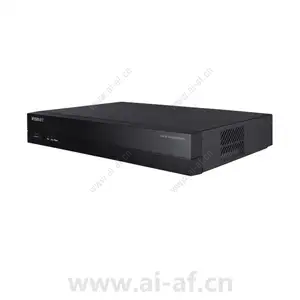

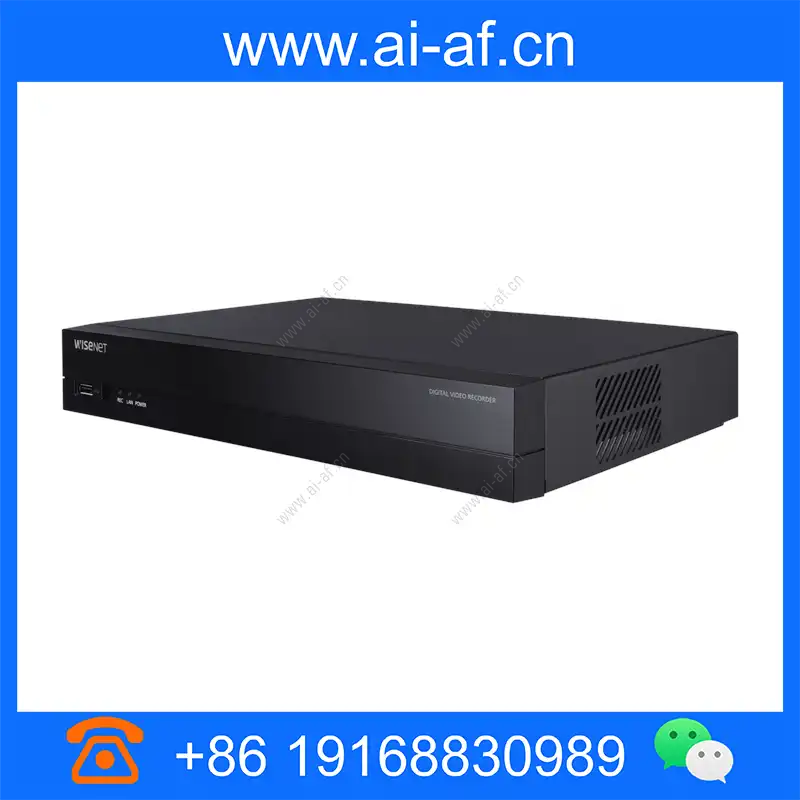

Samsung Hanwha HRX-434 4-Channel Pentabrid Digital Video Recorder

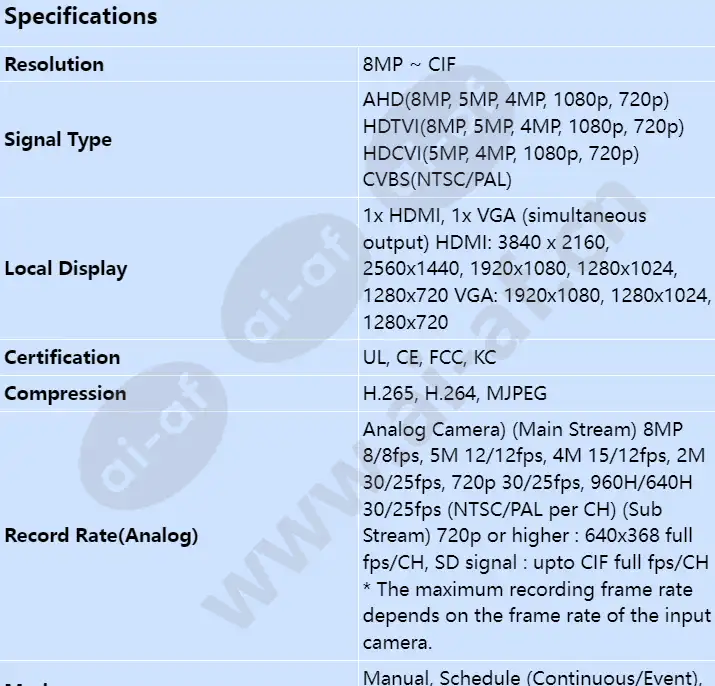

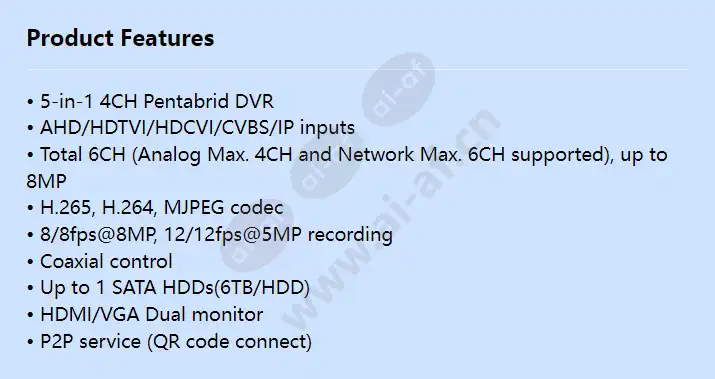

• 5-in-1 4CH Pentabrid DVR • AHD/HDTVI/HDCVI/CVBS/IP inputs • Total 6CH (Analog Max. 4CH and Network Max. 6CH supported), up to 8MP • H.265, H.264, MJPEG codec • 8/8fps@8MP, 12/12fps@5MP recording • Coaxial control • Up to 1 SATA HDDs(6TB/HDD) • HDMI/VGA Dual monitor • P2P service (QR code connect) Inputs 4CH(1Vp-p 75ohm, BNC) Signal Type AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) Resolution 8MP ~ CIF Protocols SUNAPI(Wisenet), ONVIF Local Display 1x HDMI, 1x VGA (simultaneous output) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 Compression H.265, H.264, MJPEG Record Rate(Analog) Analog Camera) (Main Stream) 8MP 8/8fps, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps
