Samsung Hanwha HRX-420 4-Channel Pentabrid Digital Video Recorder

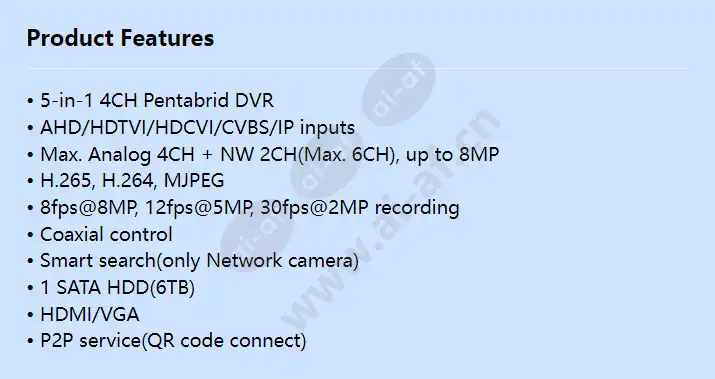

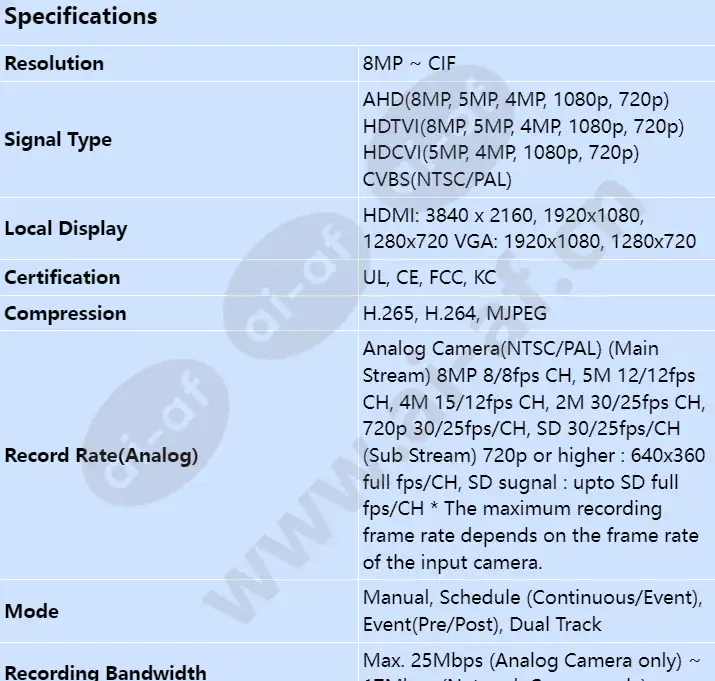

• 5-in-1 4CH Pentabrid DVR • AHD/HDTVI/HDCVI/CVBS/IP inputs • Max. Analog 4CH + NW 2CH(Max. 6CH), up to 8MP • H.265, H.264, MJPEG • 8fps@8MP, 12fps@5MP, 30fps@2MP recording • Coaxial control • Smart search(only Network camera) • 1 SATA HDD(6TB) • HDMI/VGA • P2P service(QR code connect) Inputs 4CH(1Vp-p 75ohm, BNC) Signal Type AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) Resolution 8MP ~ CIF Protocols SUNAPI(Wisenet), ONVIF Local Display HDMI: 3840 x 2160, 1920x1080, 1280x720 VGA: 1920x1080, 1280x720 Compression H.265, H.264, MJPEG Record Rate(Analog) Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full
