Samsung Hanwha HRX-1635 16-Channel Pentabrid Digital Video Recorder

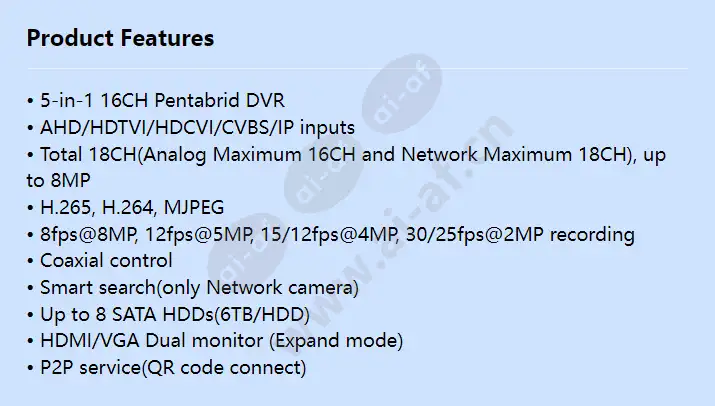

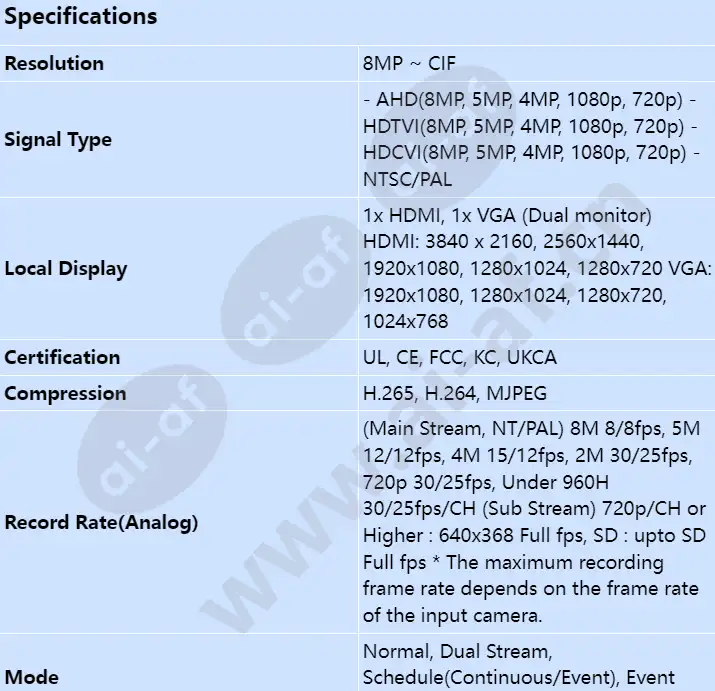

• 5-in-1 16CH Pentabrid DVR • AHD/HDTVI/HDCVI/CVBS/IP inputs • Total 18CH(Analog Maximum 16CH and Network Maximum 18CH), up to 8MP • H.265, H.264, MJPEG • 8fps@8MP, 12fps@5MP, 15/12fps@4MP, 30/25fps@2MP recording • Coaxial control • Smart search(only Network camera) • Up to 8 SATA HDDs(6TB/HDD) • HDMI/VGA Dual monitor (Expand mode) • P2P service(QR code connect) Inputs 16CH(1Vp-p 75ohm, BNC) Signal Type - AHD(8MP, 5MP, 4MP, 1080p, 720p) - HDTVI(8MP, 5MP, 4MP, 1080p, 720p) - HDCVI(8MP, 5MP, 4MP, 1080p, 720p) - NTSC/PAL Resolution 8MP ~ CIF Protocols SUNAPI(Wisenet), ONVIF Local Display 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 Compression H.265, H.264, MJPEG Record Rate(Analog) (Main Stream
