Samsung Hanwha HRX-1632 16-Channel Pentabrid Digital Video Recorder

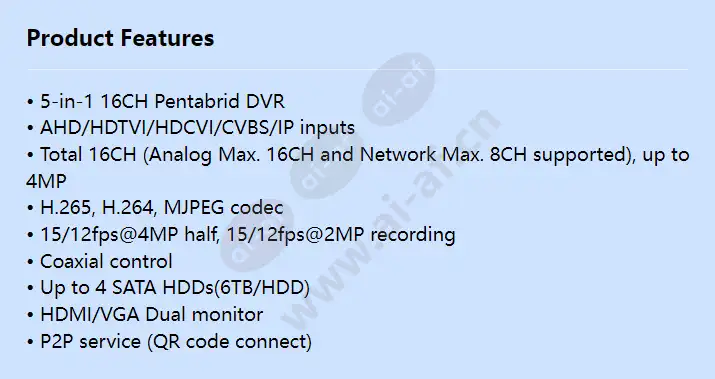

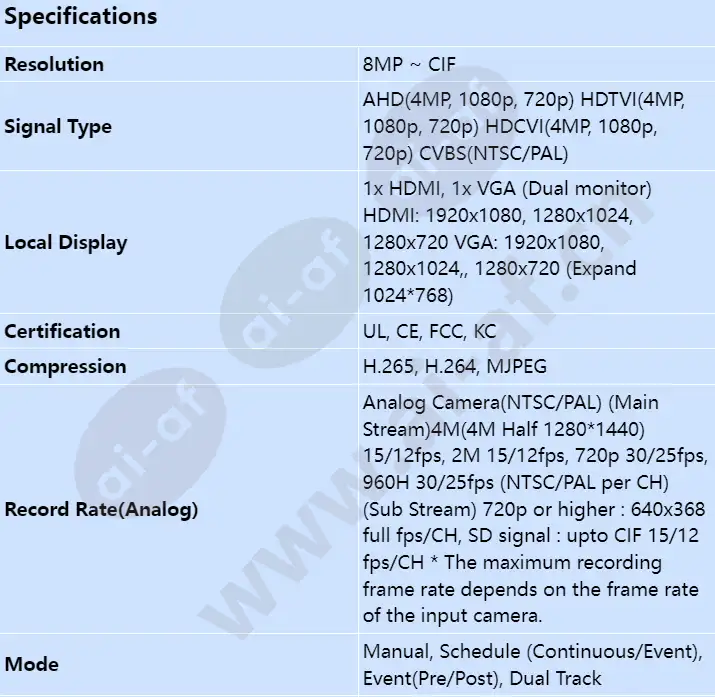

• 5-in-1 16CH Pentabrid DVR • AHD/HDTVI/HDCVI/CVBS/IP inputs • Total 16CH (Analog Max. 16CH and Network Max. 8CH supported), up to 4MP • H.265, H.264, MJPEG codec • 15/12fps@4MP half, 15/12fps@2MP recording • Coaxial control • Up to 4 SATA HDDs(6TB/HDD) • HDMI/VGA Dual monitor • P2P service (QR code connect) Inputs 16CH(1Vp-p 75ohm, BNC) Signal Type AHD(4MP, 1080p, 720p) HDTVI(4MP, 1080p, 720p) HDCVI(4MP, 1080p, 720p) CVBS(NTSC/PAL) Resolution 8MP ~ CIF Protocols SUNAPI(Wisenet), ONVIF Local Display 1x HDMI, 1x VGA (Dual monitor) HDMI: 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024,, 1280x720 (Expand 1024*768) Compression H.265, H.264, MJPEG Record Rate(Analog) Analog Camera(NTSC/PAL) (Main Stream)4M(4M Half 1280*1440) 15/12fps, 2M 15/12fps, 720p 30/25fps, 960H 30/25fps
