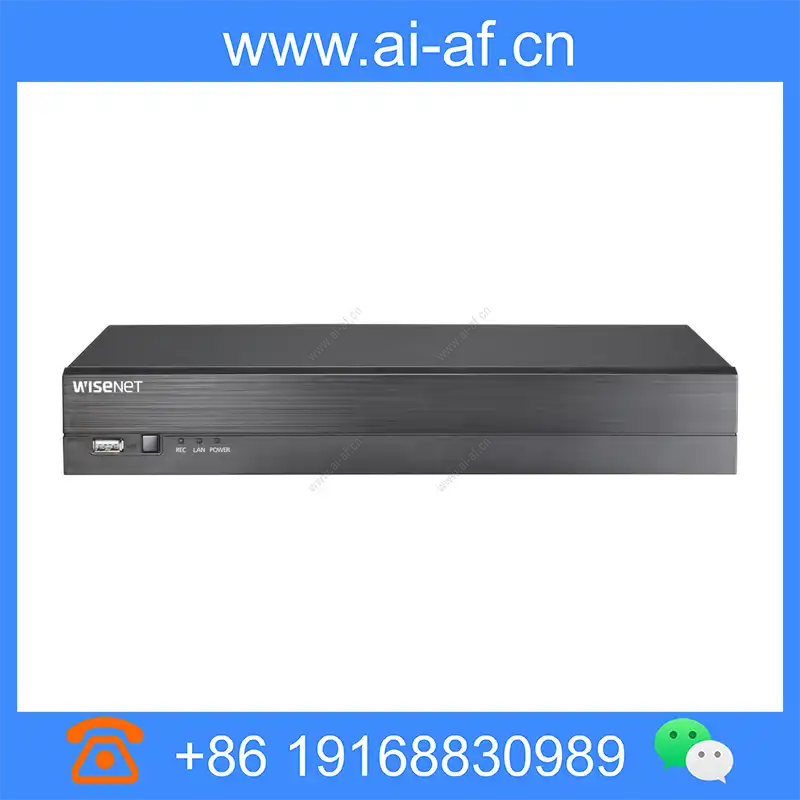

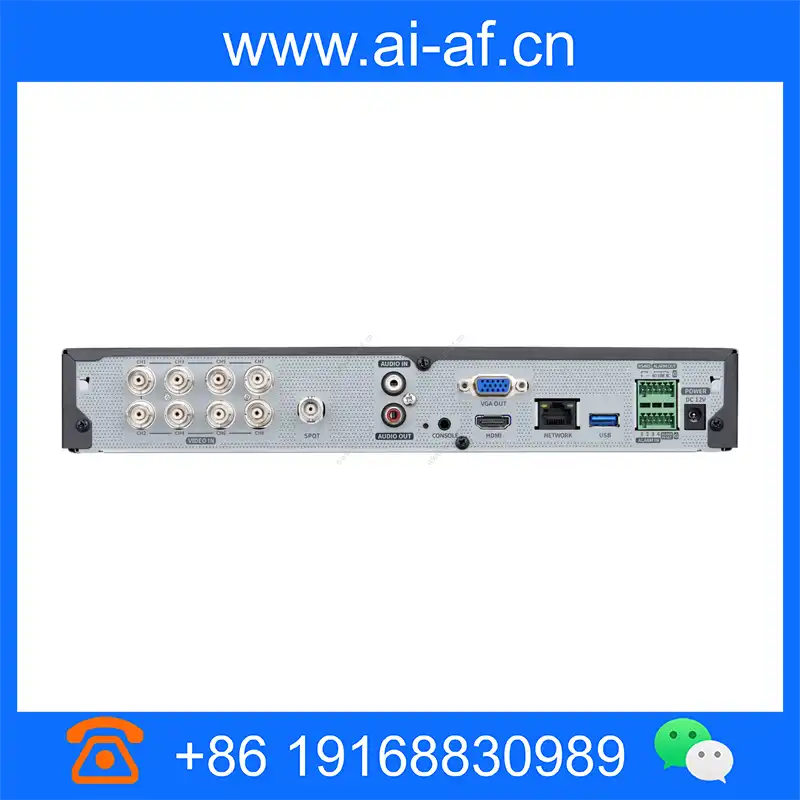

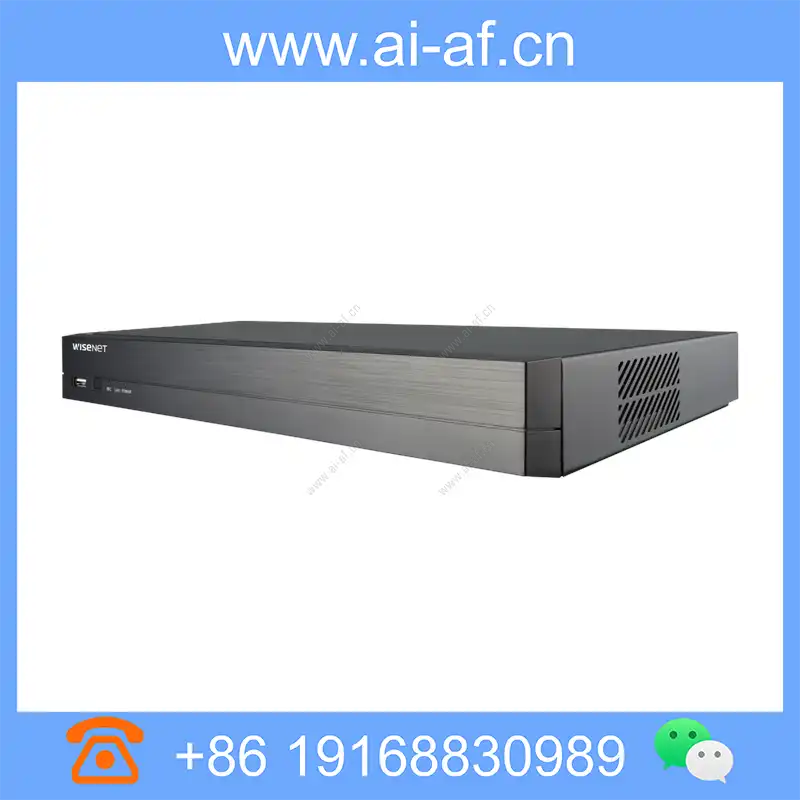

Samsung Hanwha HRD-840 8-Channel H.264 AHD Digital Video Recorder

Brand: Hanwha

Model: HRD-840

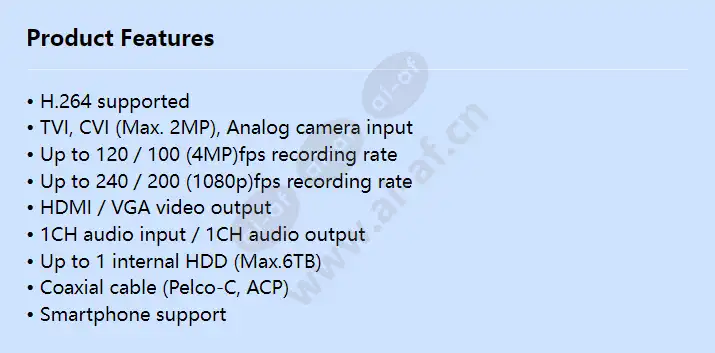

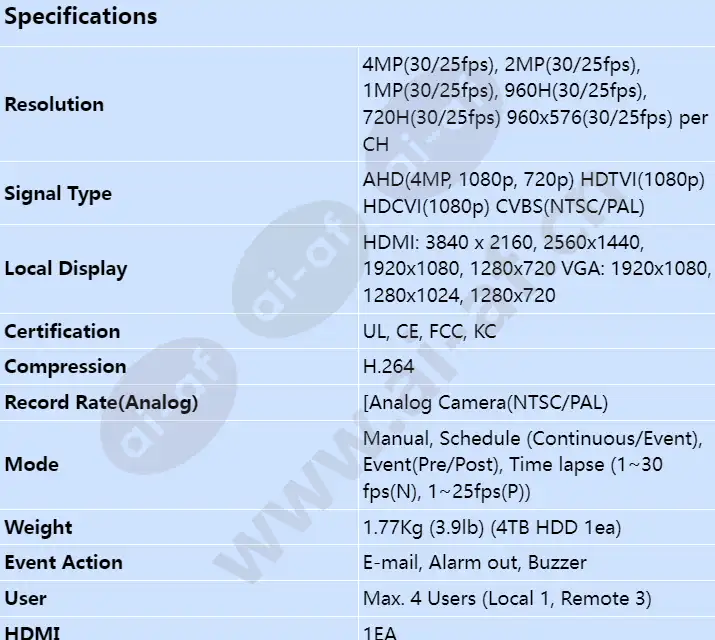

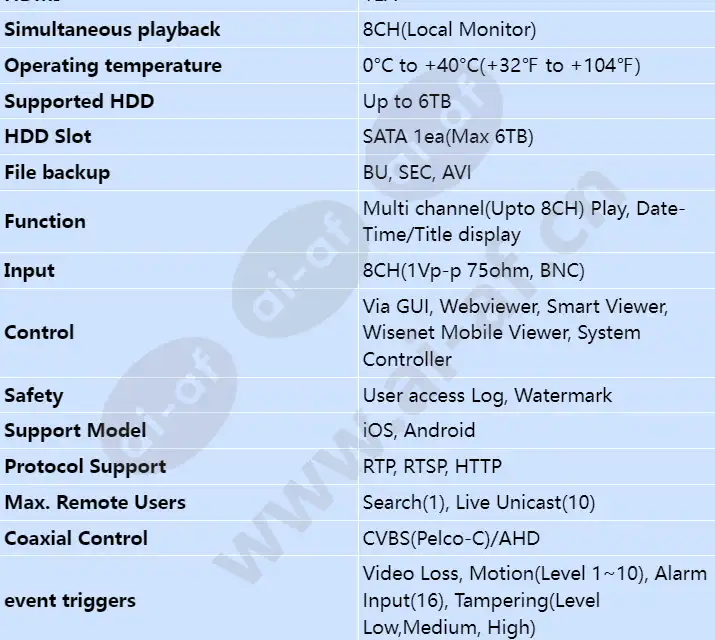

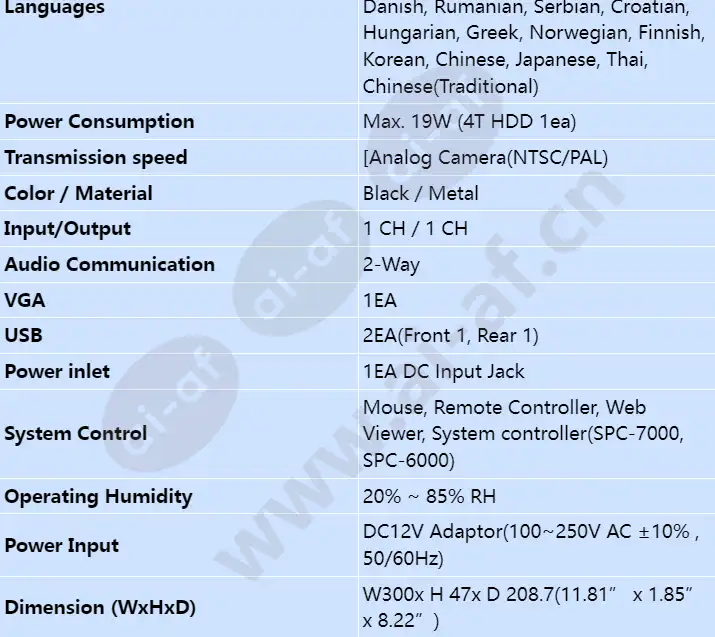

• H.264 supported • TVI, CVI (Max. 2MP), Analog camera input • Up to 120 / 100 (4MP)fps recording rate • Up to 240 / 200 (1080p)fps recording rate • HDMI / VGA video output • 1CH audio input / 1CH audio output • Up to 1 internal HDD (Max.6TB) • Coaxial cable (Pelco-C, ACP) • Smartphone support Inputs 8CH(1Vp-p 75ohm, BNC) Signal Type AHD(4MP, 1080p, 720p) HDTVI(1080p) HDCVI(1080p) CVBS(NTSC/PAL) Local Display HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 Resolution 4MP(30/25fps), 2MP(30/25fps), 1MP(30/25fps), 960H(30/25fps), 720H(30/25fps) 960x576(30/25fps) per CH Compression H.264 Record Rate(Analog) [Analog Camera(NTSC/PAL) Mode Manual, Schedule (Continuous/Event), Event(Pre/Post), Time lapse (1~30 fps(N), 1~25fps(P)) Event Trigger Video Loss
