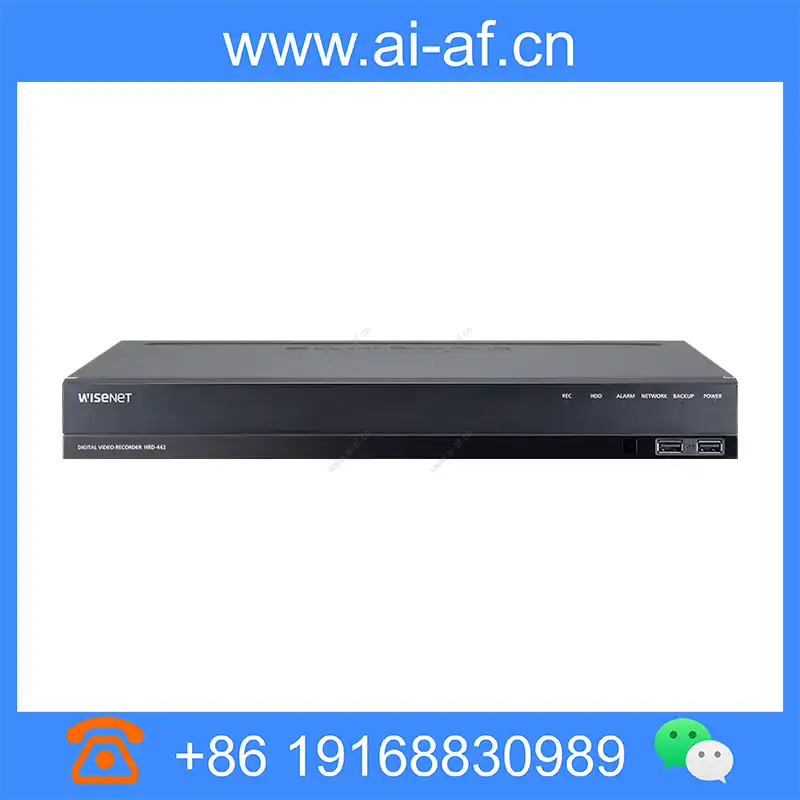

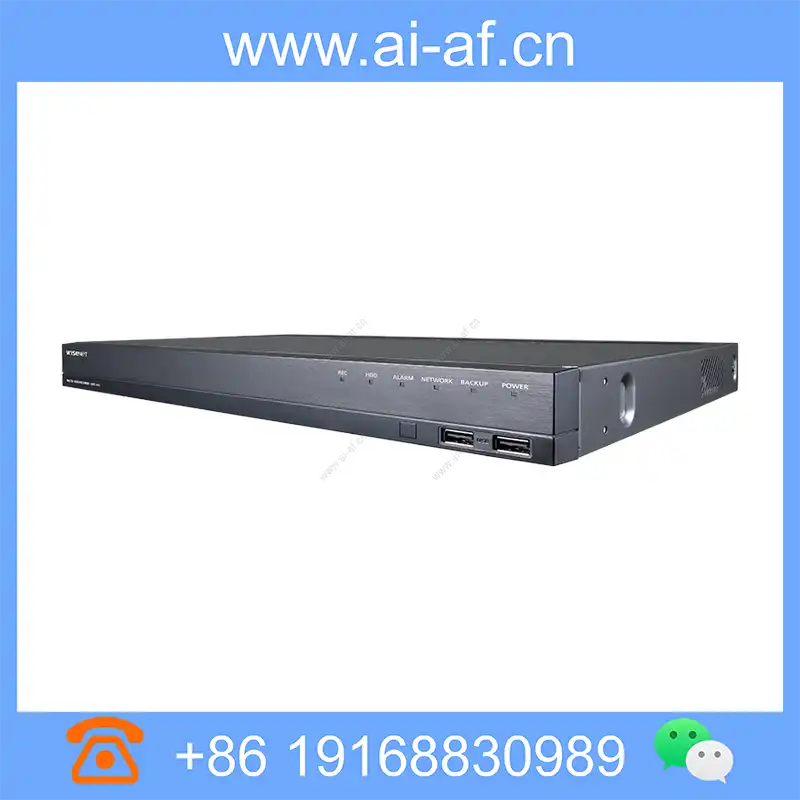

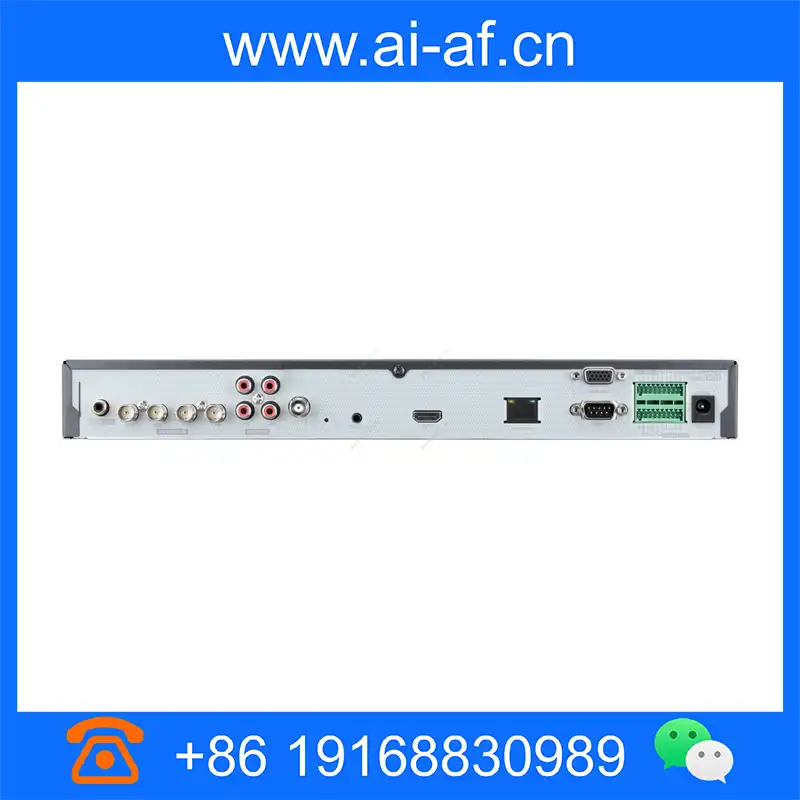

Samsung Hanwha HRD-442 4-Channel H.264 AHD Digital Video Recorder

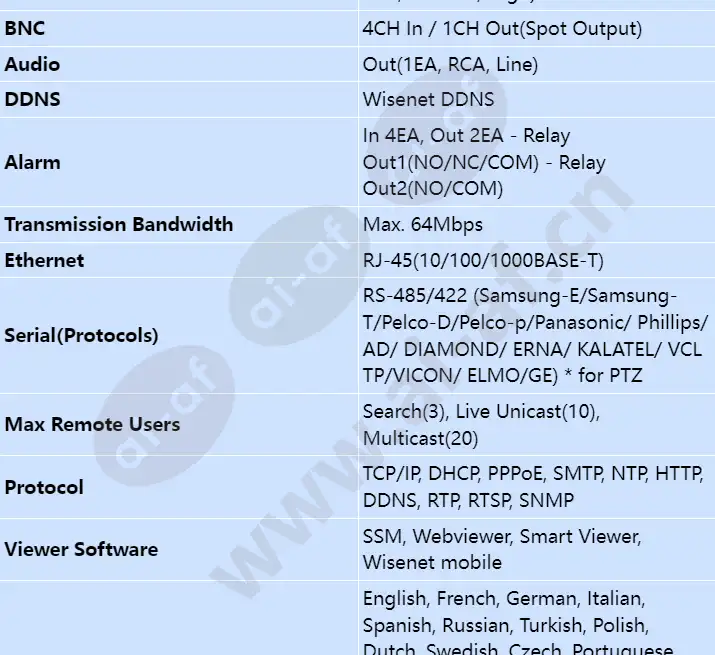

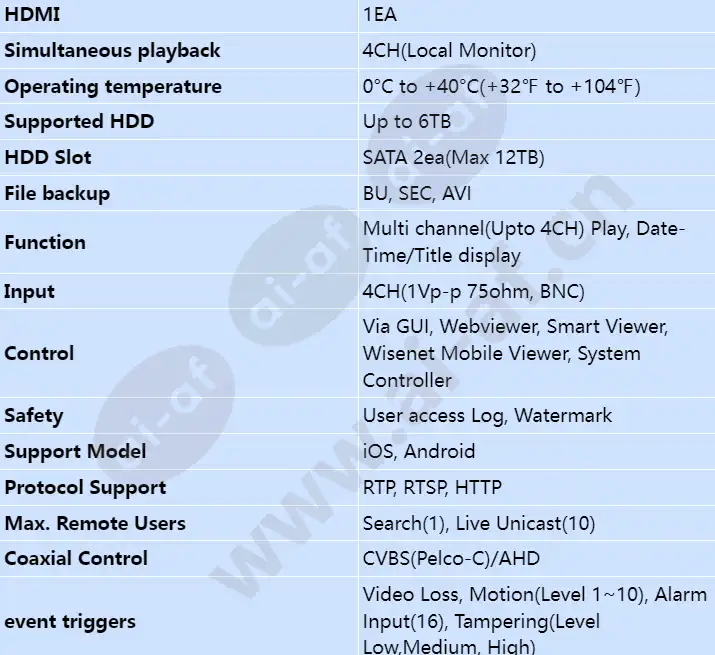

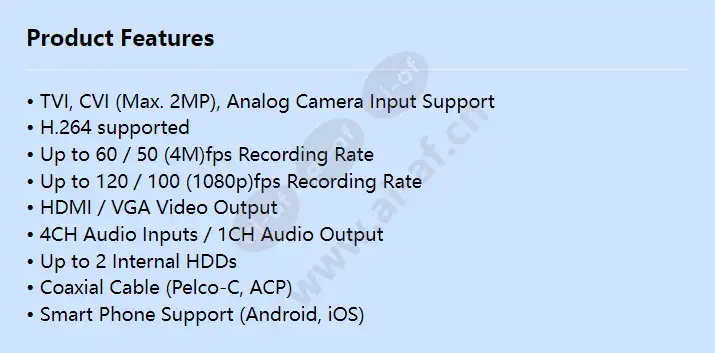

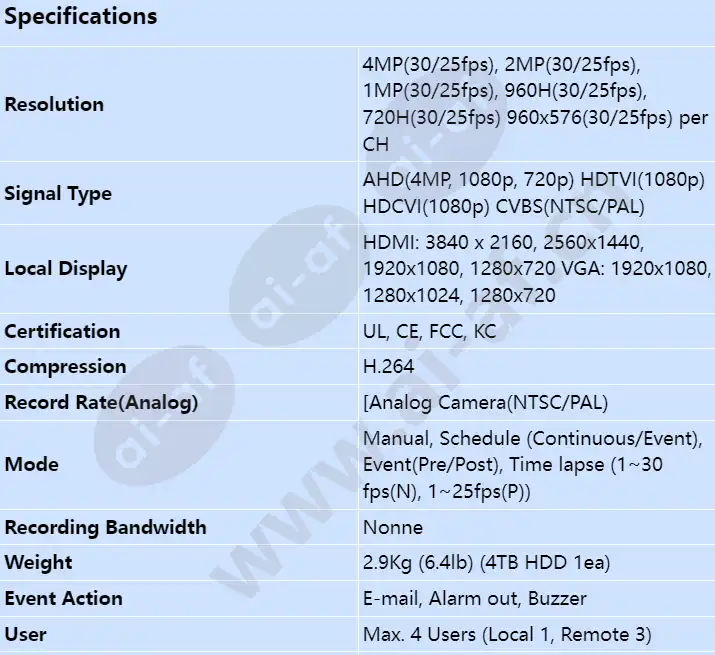

• TVI, CVI (Max. 2MP), Analog Camera Input Support • H.264 supported • Up to 60 / 50 (4M)fps Recording Rate • Up to 120 / 100 (1080p)fps Recording Rate • HDMI / VGA Video Output • 4CH Audio Inputs / 1CH Audio Output • Up to 2 Internal HDDs • Coaxial Cable (Pelco-C, ACP) • Smart Phone Support (Android, iOS) Inputs 4CH(1Vp-p 75ohm, BNC) Signal Type AHD(4MP, 1080p, 720p) HDTVI(1080p) HDCVI(1080p) CVBS(NTSC/PAL) Local Display HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 Resolution 4MP(30/25fps), 2MP(30/25fps), 1MP(30/25fps), 960H(30/25fps), 720H(30/25fps) 960x576(30/25fps) per CH Compression H.264 Record Rate(Analog) [Analog Camera(NTSC/PAL) Recording Bandwidth Nonne Mode Manual, Schedule (Continuous/Event), Event(Pre/Post), Time lapse (1~30 fps(N)
