Samsung Hanwha HCV-7020RA QHD 4MP Analog Vandal-resistant IR Dome Camera

Brand: Hanwha

Model: HCV-7020RA

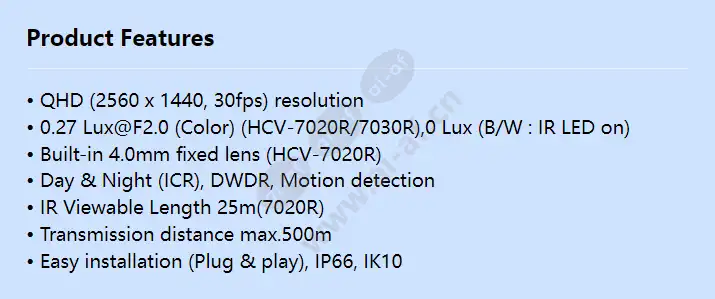

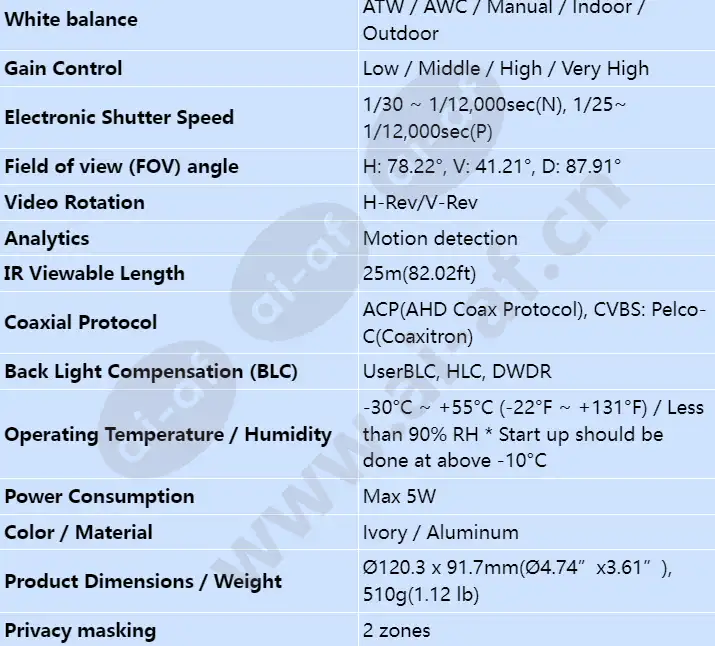

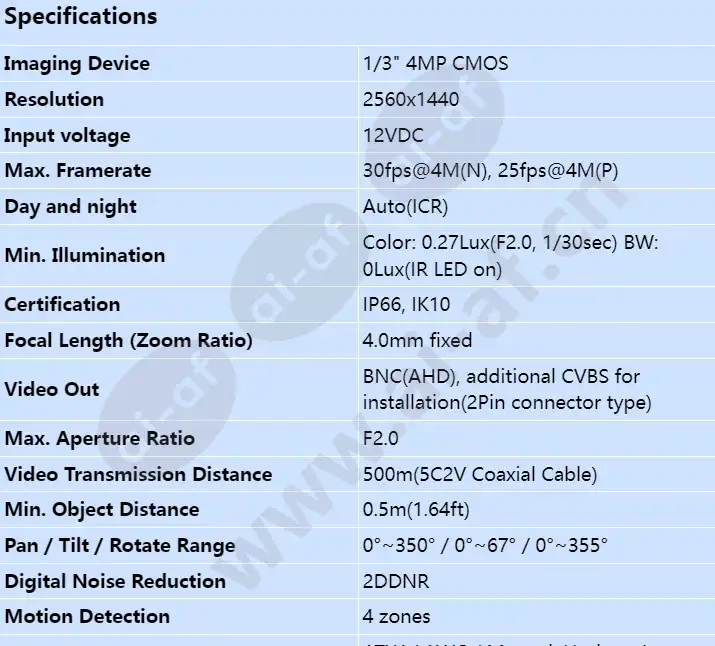

• QHD (2560 x 1440, 30fps) resolution • 0.27 Lux@F2.0 (Color) (HCV-7020R/7030R),0 Lux (B/W : IR LED on) • Built-in 4.0mm fixed lens (HCV-7020R) • Day & Night (ICR), DWDR, Motion detection • IR Viewable Length 25m(7020R) • Transmission distance max.500m • Easy installation (Plug & play), IP66, IK10 Imaging Device 1/3" 4MP CMOS Resolution 2560x1440 Max. Framerate 30fps@4M(N), 25fps@4M(P) Min. Illumination Color: 0.27Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) Video Out BNC(AHD), additional CVBS for installation(2Pin connector type) Video Transmission Distance 500m(5C2V Coaxial Cable) Focal Length (Zoom Ratio) 4.0mm fixed Max. Aperture Ratio F2.0 Angular Field of View H: 78.22°, V: 41.21°, D: 87.91° Min. Object Distance 0.5m(1.64ft) Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355° Day &
