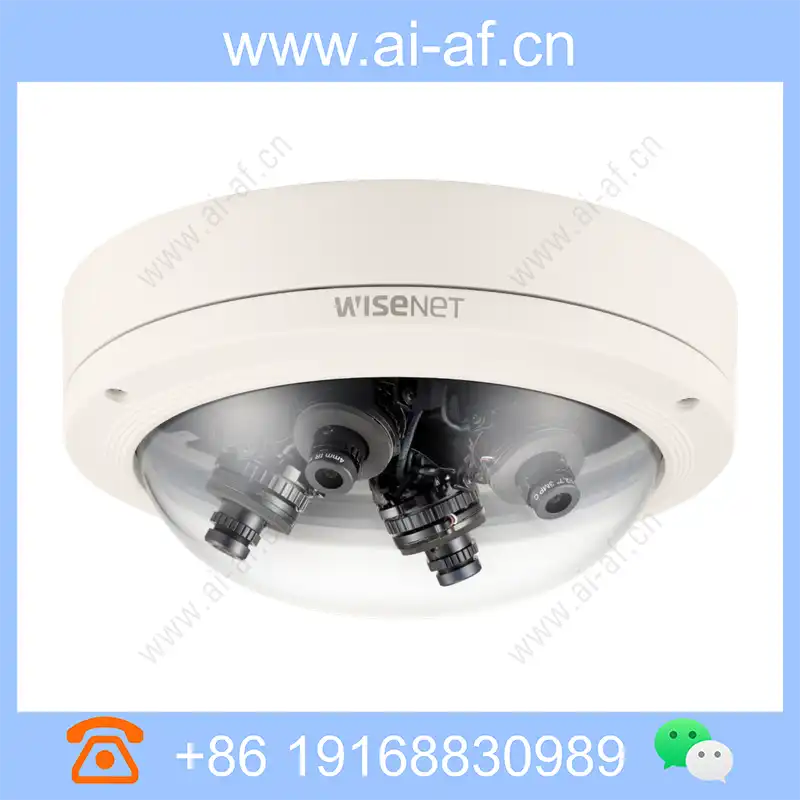

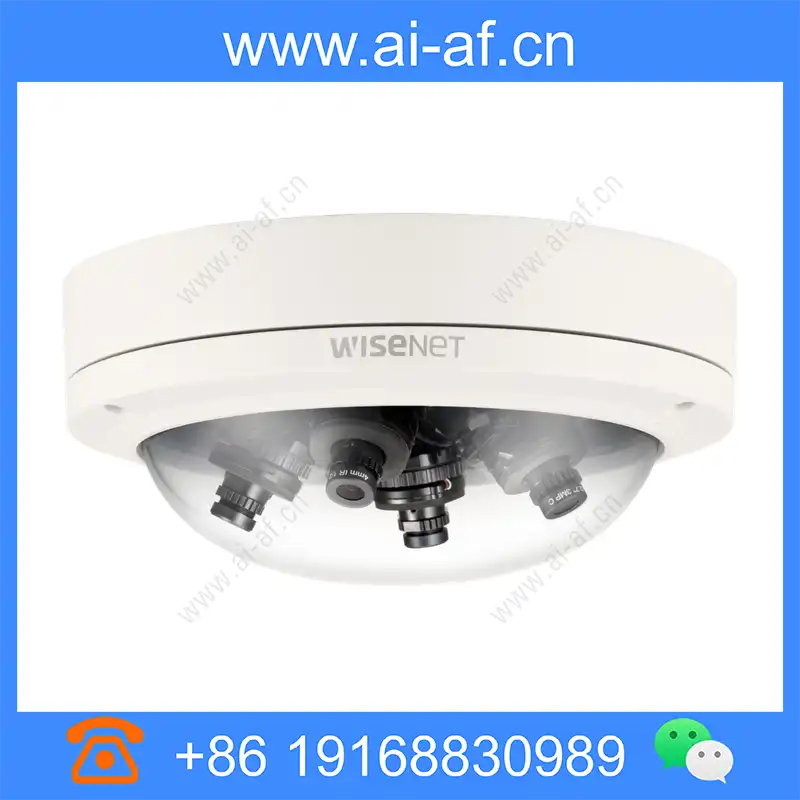

Samsung Hanwha HCM-9020VQ 1080p 360˚ multi-directional camera

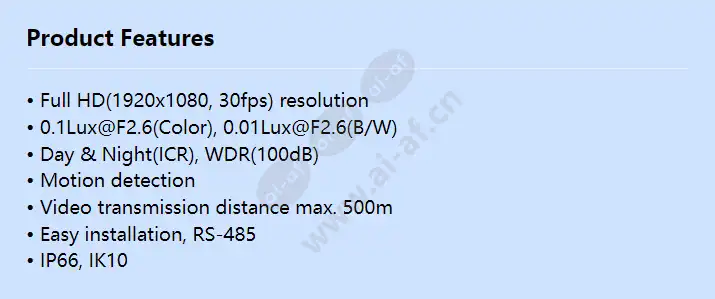

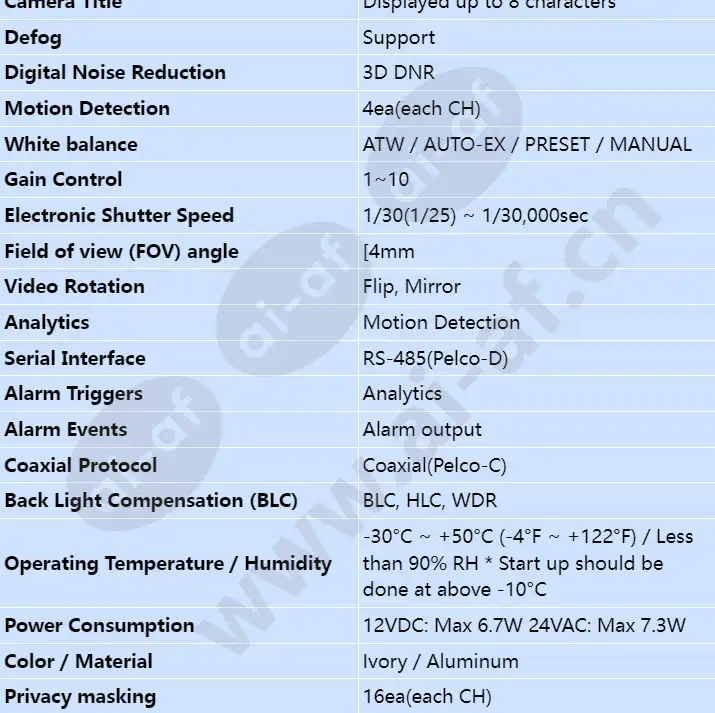

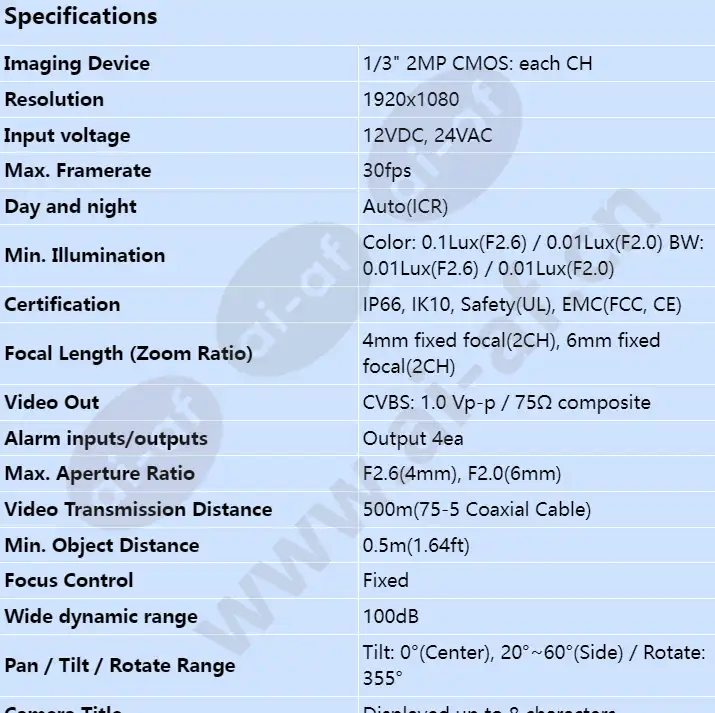

• Full HD(1920x1080, 30fps) resolution • 0.1Lux@F2.6(Color), 0.01Lux@F2.6(B/W) • Day & Night(ICR), WDR(100dB) • Motion detection • Video transmission distance max. 500m • Easy installation, RS-485 • IP66, IK10 Imaging Device 1/3" 2MP CMOS: each CH Resolution 1920x1080 Max. Framerate 30fps Min. Illumination Color: 0.1Lux(F2.6) / 0.01Lux(F2.0) BW: 0.01Lux(F2.6) / 0.01Lux(F2.0) Video Out CVBS: 1.0 Vp-p / 75Ω composite Video Transmission Distance 500m(75-5 Coaxial Cable) Focal Length (Zoom Ratio) 4mm fixed focal(2CH), 6mm fixed focal(2CH) Max. Aperture Ratio F2.6(4mm), F2.0(6mm) Angular Field of View [4mm Min. Object Distance 0.5m(1.64ft) Focus Control Fixed Pan / Tilt / Rotate Range Tilt: 0°(Center), 20°~60°(Side) / Rotate: 355° Camera Title Displayed up to 8 characters Day & Night
