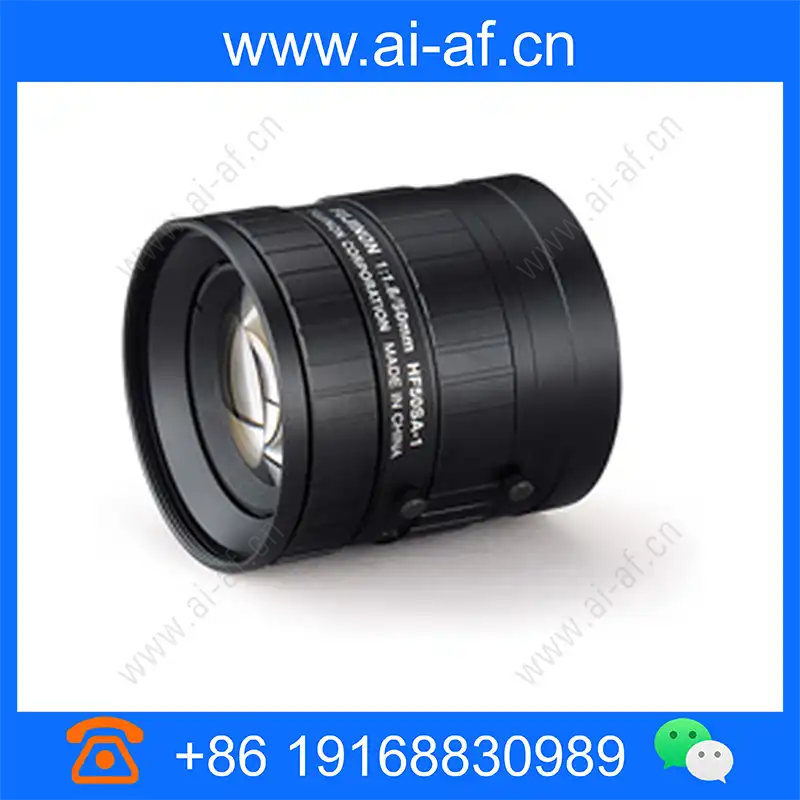

FUJINON HF50SA-1 Machine Vision Lens 50mm F1.8-F22 C-mount

Focal length (mm) 50 Iris range (F. no) F1.8-F22 Angle of view 9.7°x 7.3° (2/3") Working Distance (mm) ∞-400 Operation of focus Manual Operation of iris Manual Filter thread (mm) M49 x 0.75 Mount C-mount Weight (approx.) (g) 240 Sensor size (std.) 2/3" (3.45μm) Sensor size (max.) 2/3" (3.45μm) TV distortion (%) 0.08 Dimension (mm) Φ51×55.5 *2 From front of lens barrel *3 Sensor size (std.): Ideal size to maximize the target resolution. *4 Sensor size (max.): Adaptable sensor size varies depending on the model. Please check the amount of light and resolution on the edges pertaining to your particular application.
