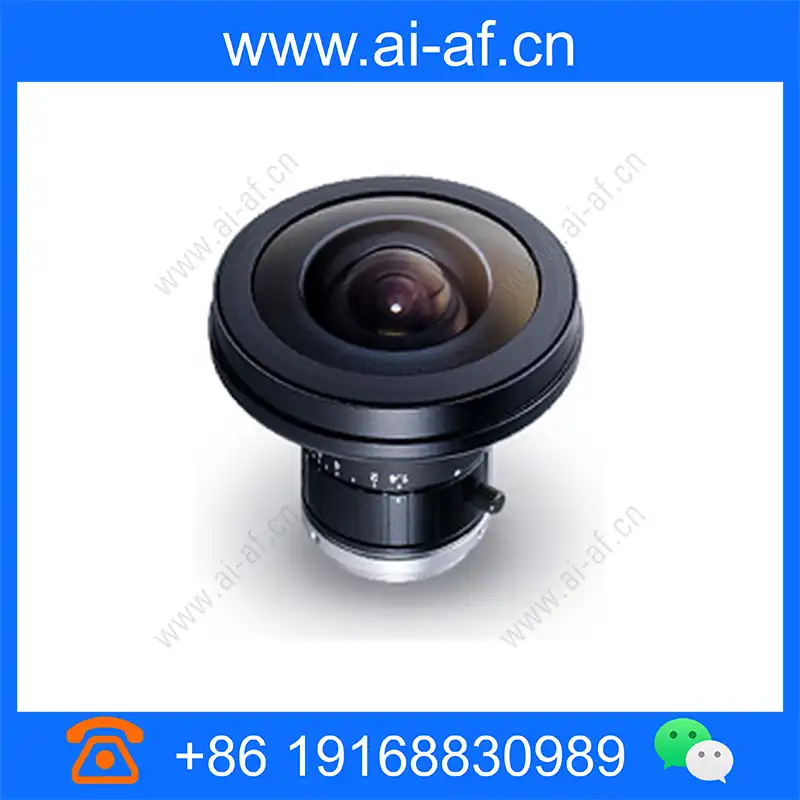

FUJINON FE185C086HA-1 Machine Vision Lens 2.7mm F1.8-F16 C-mount

Focal length (mm) 2.7 Iris range F1.8 - F16 Mount C-mount Operation focus Fixed iris Manual Angle of view 1” 185.0° x 185.0° (Ø8.6mm) 2/3” 185.0° x 140.6° 1/2” 136.3° x 102.3° Working Distance (mm) ∞‐200 Sensor size (std.) ‐ Sensor size (max.) 1" (5μm) Weight (g) 160 Working temperature -10°C - +50°C *1 From front of lens barrel. *2 Sensor size (std.): Ideal size to maximize the target resolution. *3 Sensor size (max.): Adaptable sensor size varies depending on the model. Please check the amount of light and resolution on the edges pertaining to your particular application.
