Bosch VIP-X1600-XFM4B VIP X1600 XF 4-channel Encoder module with audio/BILINX F.01U.064.460

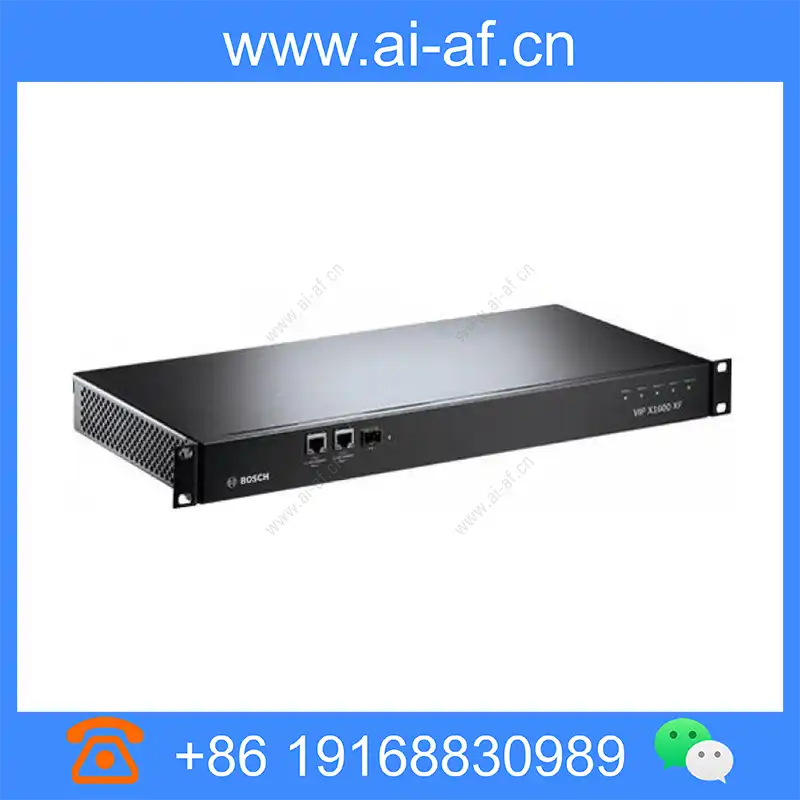

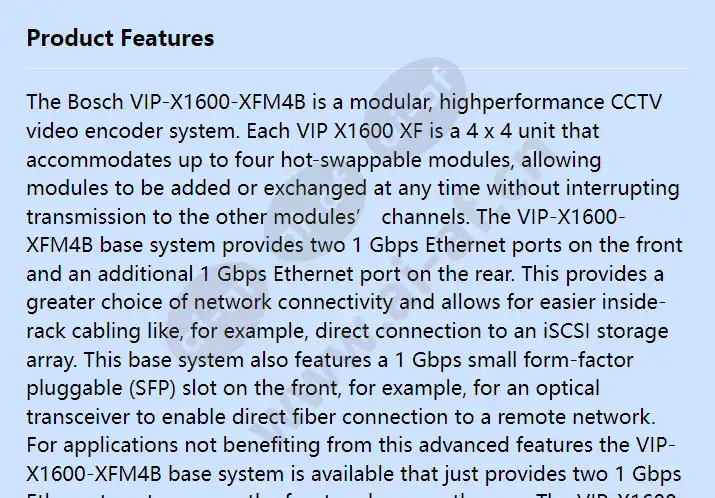

The Bosch VIP-X1600-XFM4B is a modular, highperformance CCTV video encoder system. Each VIP X1600 XF is a 4 x 4 unit that accommodates up to four hot-swappable modules, allowing modules to be added or exchanged at any time without interrupting transmission to the other modules’ channels. The VIP-X1600-XFM4B base system provides two 1 Gbps Ethernet ports on the front and an additional 1 Gbps Ethernet port on the rear. This provides a greater choice of network connectivity and allows for easier inside-rack cabling like, for example, direct connection to an iSCSI storage array. This base system also features a 1 Gbps small form-factor pluggable (SFP) slot on the front, for example, for an optical transceiver to enable direct fiber connection to a remote network. For applications not
