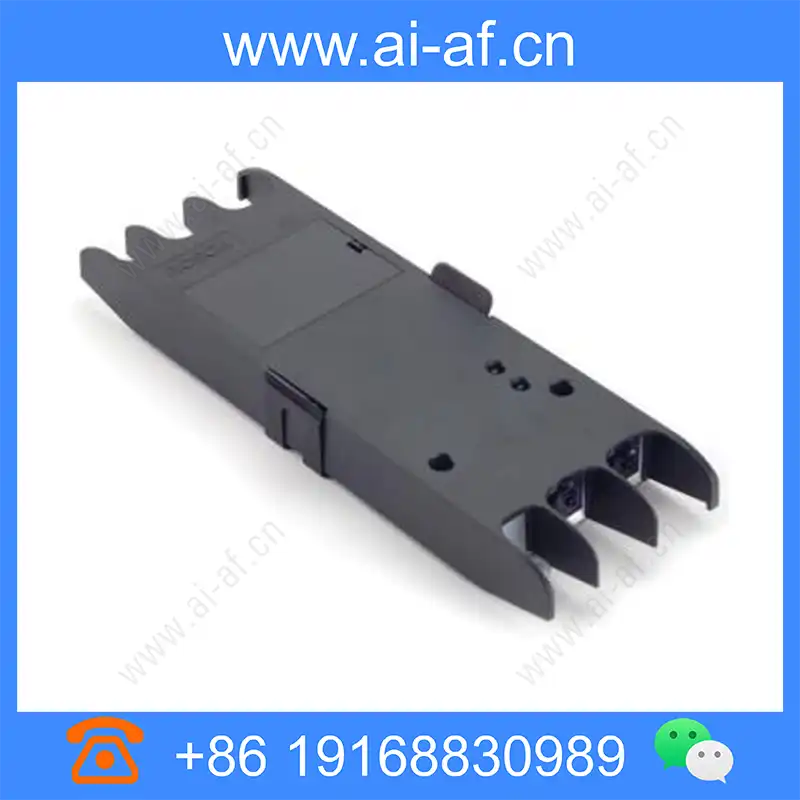

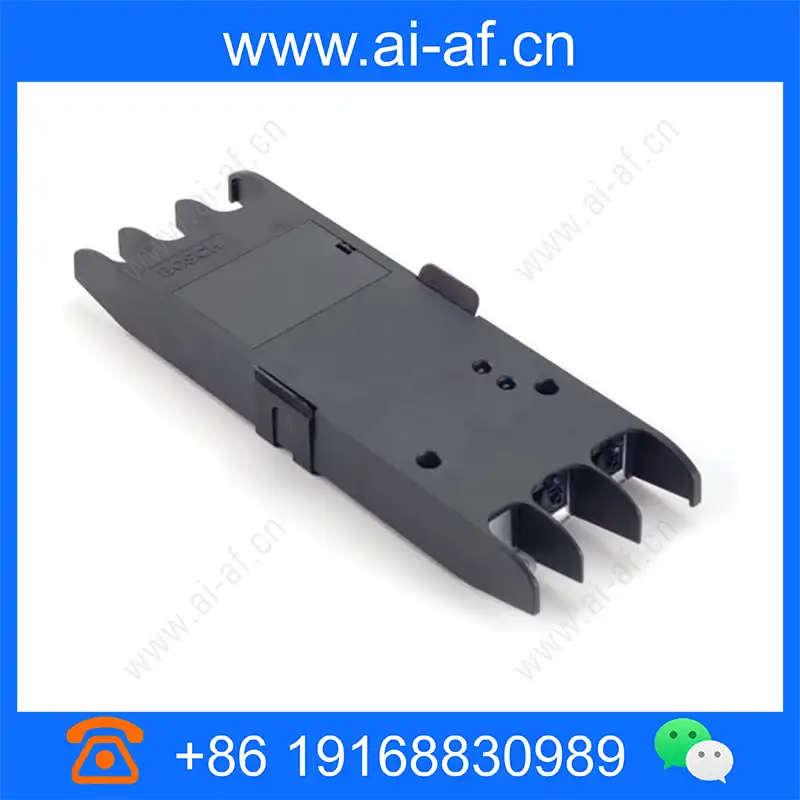

Bosch PRS-NSP Network Splitter F.01U.126.291

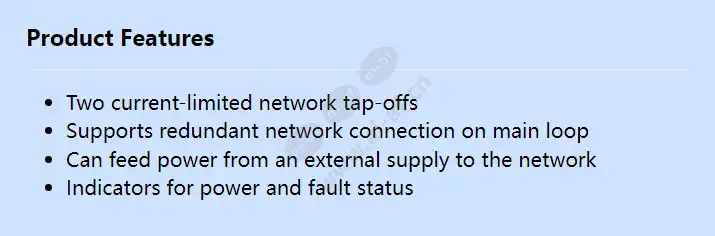

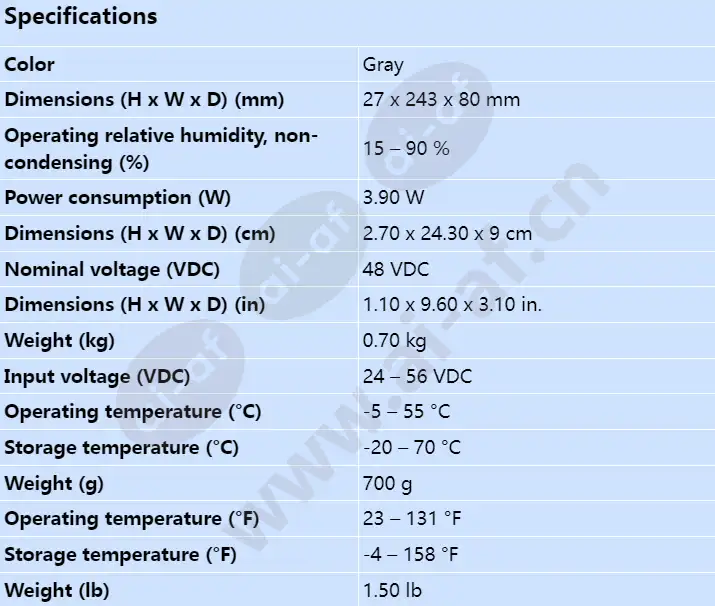

Two current-limited network tap-offs Supports redundant network connection on main loop Can feed power from an external supply to the network Indicators for power and fault status Color Gray Dimension (H x W x D) (cm) 2.70 x 24.30 x 9 cm Dimension (H x W x D) (in) 1.10 x 9.60 x 3.10 in. Dimension (H x W x D) (mm) 27 x 243 x 80 mm Input voltage (VDC) 24 – 56 VDC Nominal voltage (VDC) 48 VDC Operating relative humidity, non-condensing (%) 15 – 90 % Operating temperature (°C) -5 – 55 °C Operating temperature (°F) 23 – 131 °F Power consumption (W) 3.90 W Storage temperature (°C) -20 – 70 °C Storage temperature (°F) -4 – 158 °F Weight (g) 700 g Weight (kg) 0.70 kg Weight (lb) 1.50 lb
