Bosch PRS-CSKPM Call station keypad module Commercial F.01U.214.861

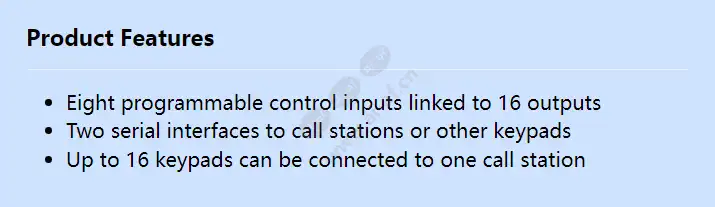

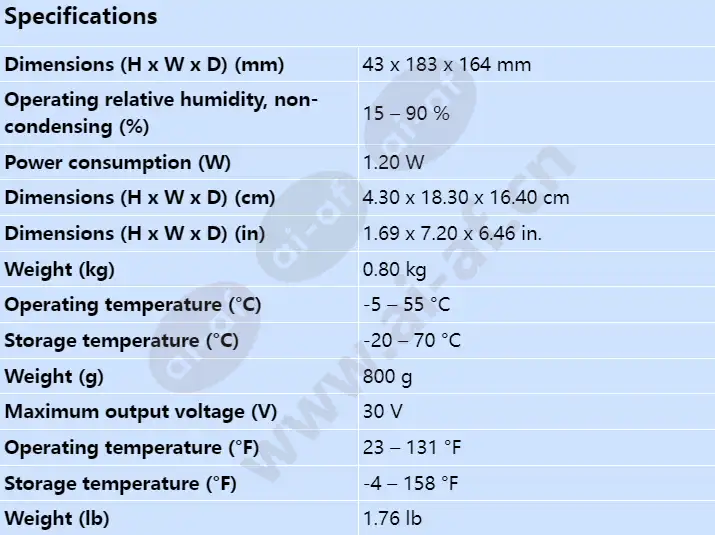

Eight programmable control inputs linked to 16 outputs Two serial interfaces to call stations or other keypads Up to 16 keypads can be connected to one call station Dimension (H x W x D) (cm) 4.30 x 18.30 x 16.40 cm Dimension (H x W x D) (in) 1.69 x 7.20 x 6.46 in. Dimension (H x W x D) (mm) 43 x 183 x 164 mm Maximum output voltage (V) 30 V Operating relative humidity, non-condensing (%) 15 – 90 % Operating temperature (°C) -5 – 55 °C Operating temperature (°F) 23 – 131 °F Power consumption (W) 1.20 W Storage temperature (°C) -20 – 70 °C Storage temperature (°F) -4 – 158 °F Weight (g) 800 g Weight (kg) 0.80 kg Weight (lb) 1.76 lb
