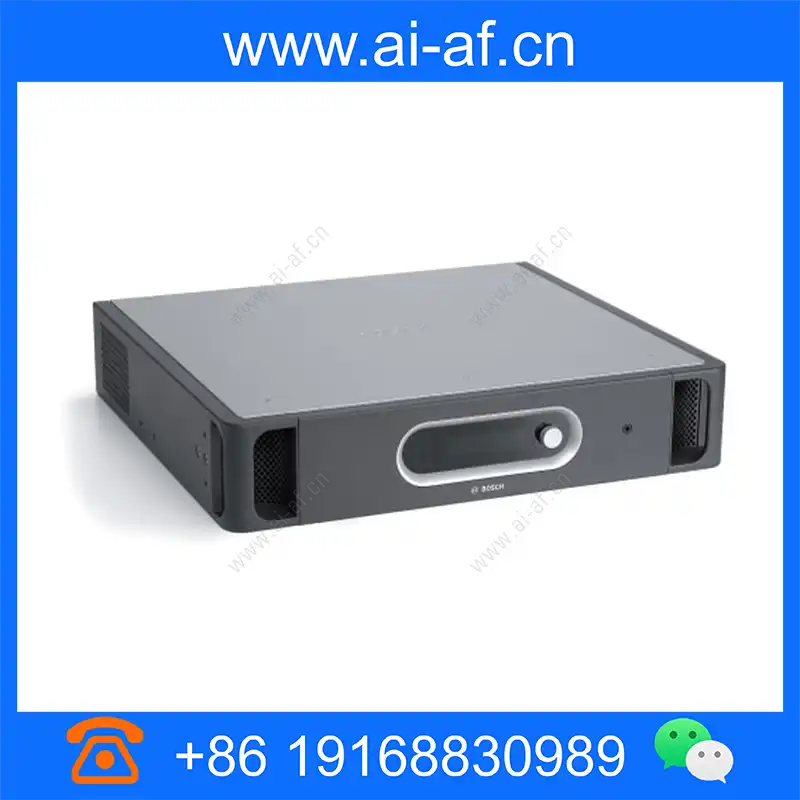

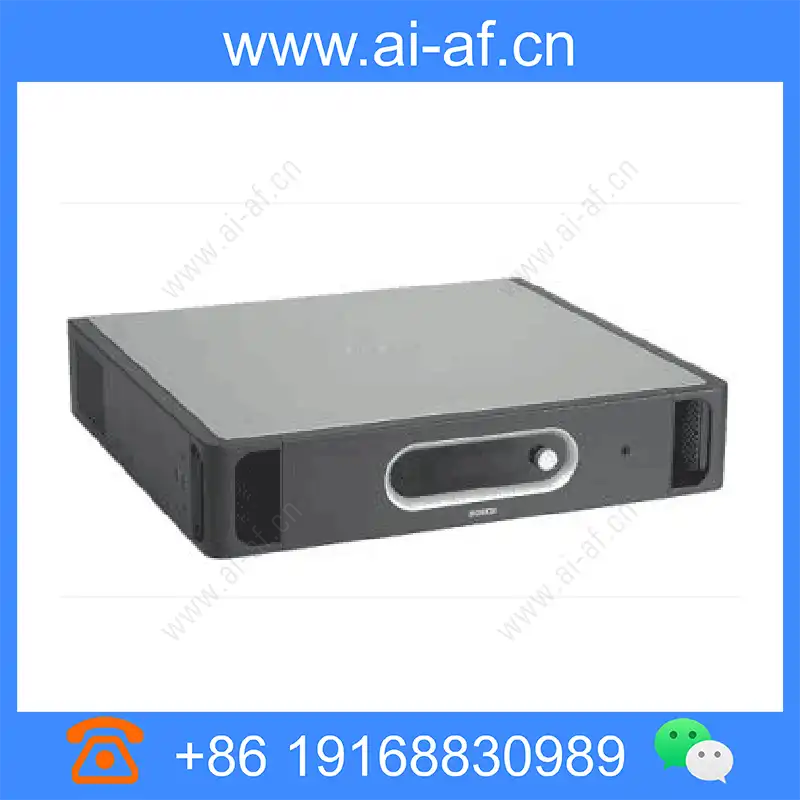

Bosch PRS-4AEX4 Analog Audio Expander F.01U.290.344

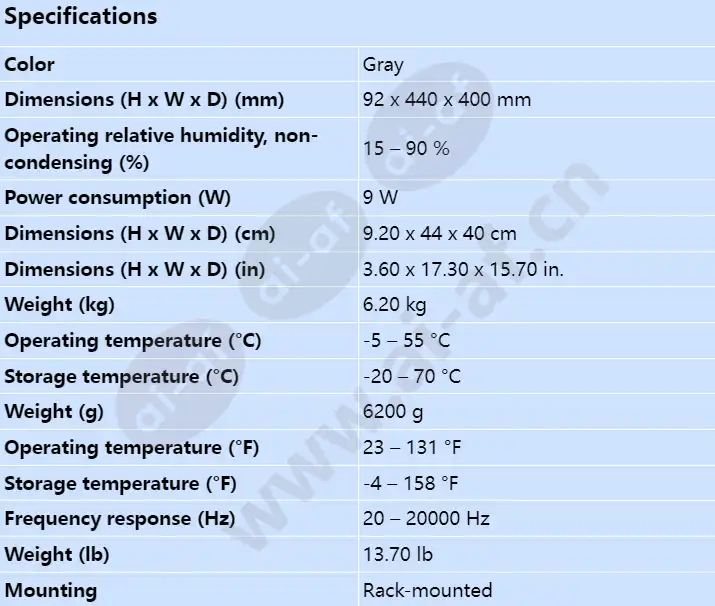

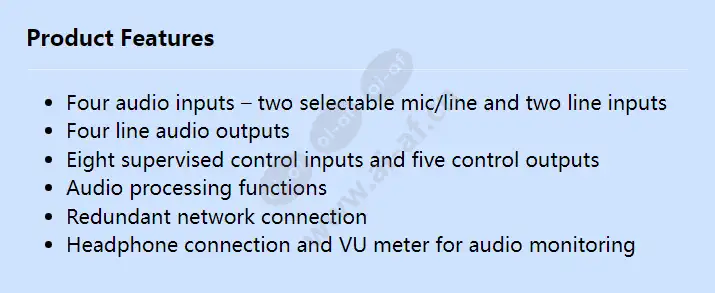

Four audio inputs – two selectable mic/line and two line inputs Four line audio outputs Eight supervised control inputs and five control outputs Audio processing functions Redundant network connection Headphone connection and VU meter for audio monitoring Color Gray Dimension (H x W x D) (cm) 9.20 x 44 x 40 cm Dimension (H x W x D) (in) 3.60 x 17.30 x 15.70 in. Dimension (H x W x D) (mm) 92 x 440 x 400 mm Frequency response (Hz) 20 – 20000 Hz Mounting type Rack-mounted Operating relative humidity, non-condensing (%) 15 – 90 % Operating temperature (°C) -5 – 55 °C Operating temperature (°F) 23 – 131 °F Power consumption (W) 9 W Storage temperature (°C) -20 – 70 °C Storage temperature (°F) -4 – 158 °F Weight (g) 6200 g Weight (kg) 6.20 kg Weight (lb) 13.70 lb
