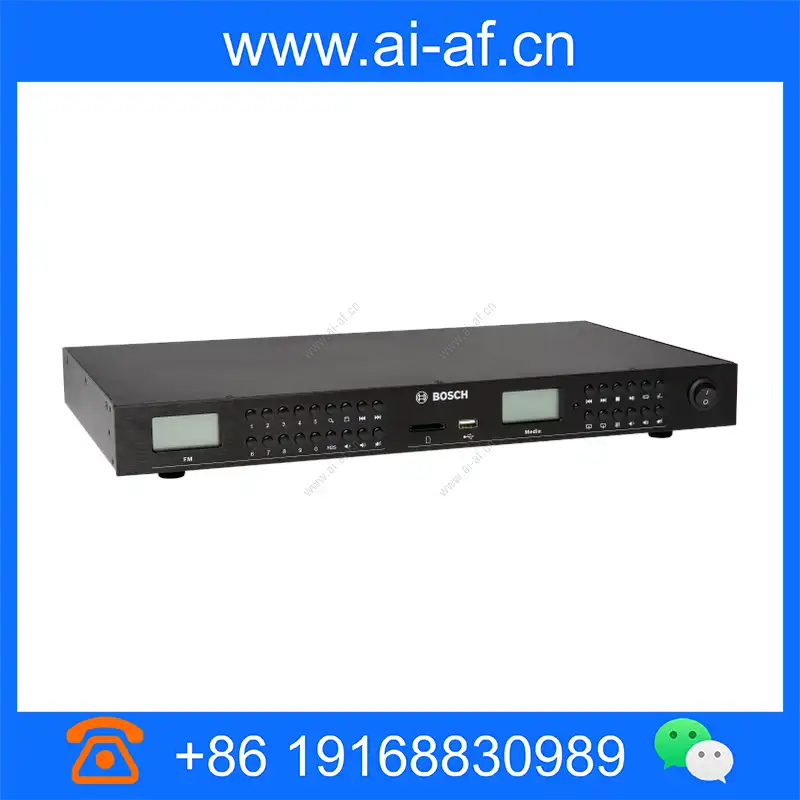

Bosch PRM-USTB PLENA solutions Music source USB SD Tuner Bluetooth F.01U.398.584

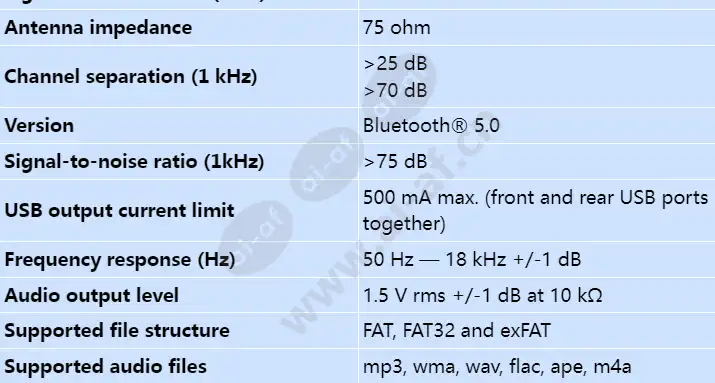

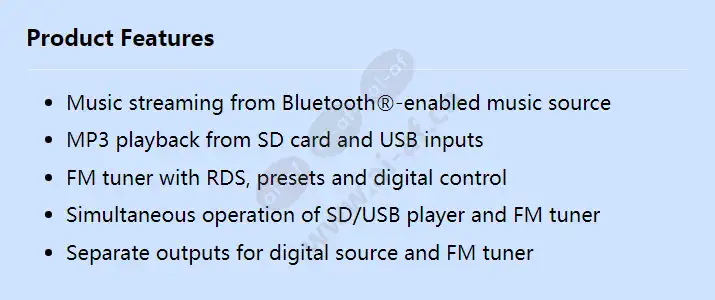

Music streaming from Bluetooth®-enabled music source MP3 playback from SD card and USB inputs FM tuner with RDS, presets and digital control Simultaneous operation of SD/USB player and FM tuner Separate outputs for digital source and FM tuner Voltage range 110 — 120 VAC +/-10%, 50 — 60 Hz 220 — 240 VAC +/-10%, 50 — 60 Hz Power supply fuse 0.63 A / 250 V Power consumption (W) 15 W FM frequency range 87.5 — 108 MHz Frequency response 50 Hz — 12 kHz +/-3 dB Channel separation (1 kHz) >25 dB
>70 dB Signal-to-noise ratio >50 dB FM input sensitivity 26 dBu Antenna impedance 75 ohm Audio output level 1.5 V rms +/-1 dB at 10 kΩ Frequency response (Hz) 50 Hz — 18 kHz +/-1 dB Signal-to-noise ratio (1kHz) >75 dB Total harmonic distortion (1 kHz) <0.5% USB output current limit 500
