Bosch PLE-SDT Music source USB/SD/Tuner F.01U.252.620

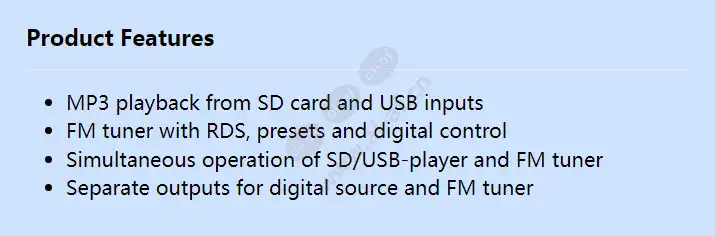

MP3 playback from SD card and USB inputs FM tuner with RDS, presets and digital control Simultaneous operation of SD/USB-player and FM tuner Separate outputs for digital source and FM tuner Voltage 115 - 230 VAC ±10%, 50/60 Hz Power supply fuses 230 VAC 0.63 AT / 250 V Power consumtion (typical) 10 W Power consumption (Max.) 50 VA Distortion < 1 % Total harmonic distortion (1 kHz) < 0.8 % FM range 87.5 ÷ 108 MHz Frequency response 50 Hz ÷ 12 kHz Channel separation (1 kHz) ≥ 40 dB Intermediate rejection ≥ 70 dB Signal / noise ratio ≥ 50 dB Intermediate frequency 10.7 MHz Input sensitivity 6 μV e.m.f. (2 uV) Automatic tuning sensitivity ≤ 50 μV Antenna input 75 ohms (coaxial) Audio output level - 10 dBV Maximum storage capacity 32 GB Maximum number of tracks 2000
