Bosch MPC-1300-C Panel controller English

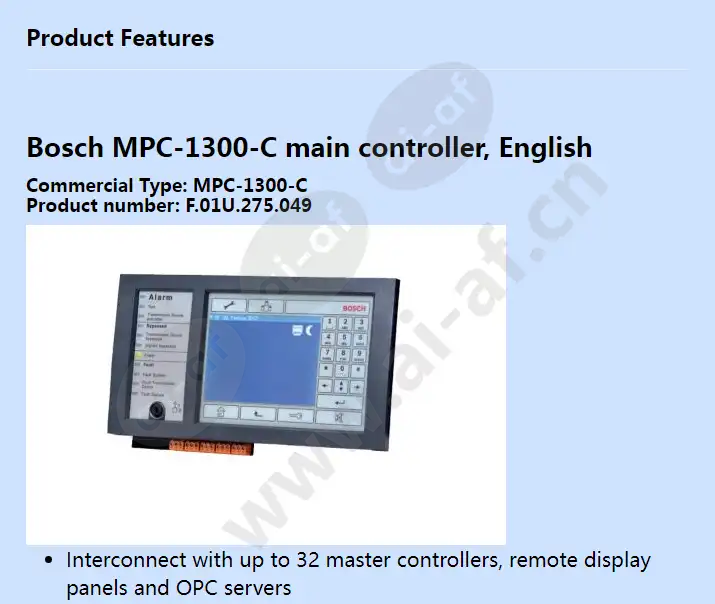

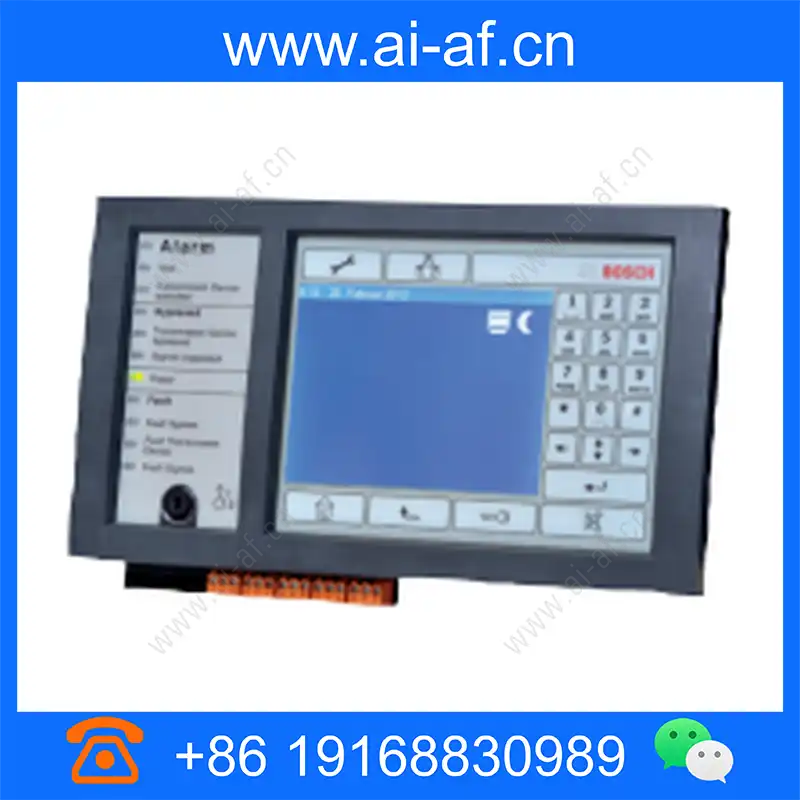

Bosch MPC-1300-C main controller, English Commercial Type: MPC-1300-C Product number: F.01U.275.049 Interconnect with up to 32 master controllers, remote display panels and OPC servers Ethernet interface for network interconnection and OPC connection 14.5 cm (5.7 in) multi-color TFT touch screen with 22 fixed keys for standard input Ease of use thanks to simple menu structure HK-US 6560 Operating voltage 20 V DC to 30 V DC Maximum current draw Standby operation 136 mA (24 V DC) When an alarm occurs 226 mA (24 V DC) Maximum cable length CAN network interconnection 1000m depends on configuration, topology and cable type Ethernet/IP network interconnection using optical fiber 24 to 40 km display components 14.5 cm (5.7 in) multicolor TFT display with 320 x 240 pixels operating elements
