Bosch MIC-ALM-WAS-24 MIC Alarm/Washer Interface Unit Interface box alarm washer pump 24VAC F.01U.286.248

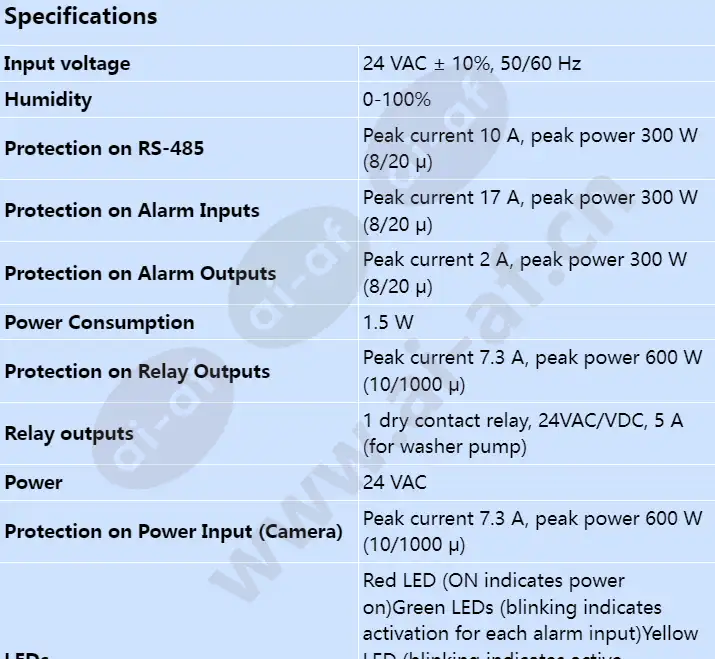

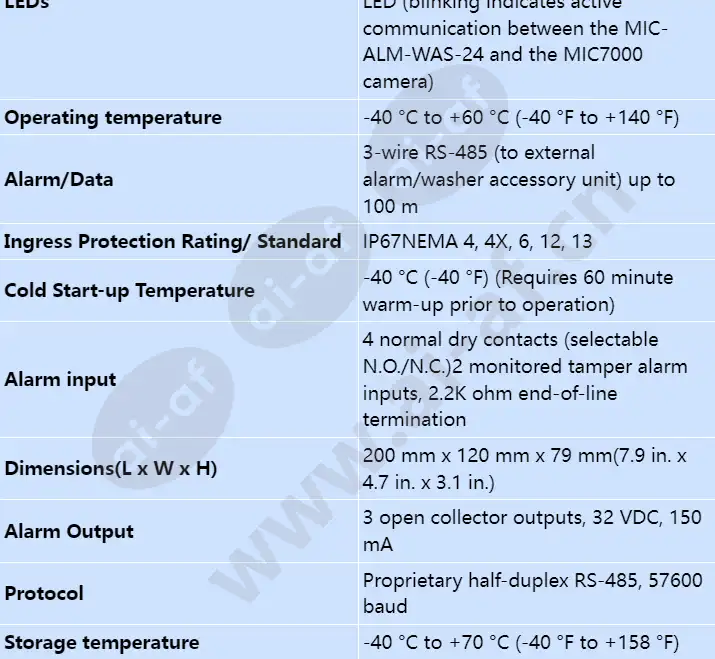

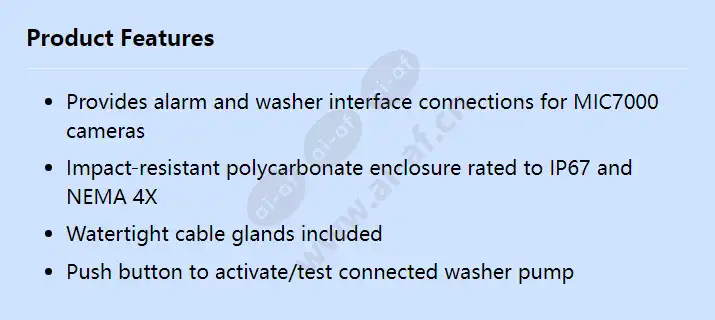

Provides alarm and washer interface connections for MIC7000 cameras Impact-resistant polycarbonate enclosure rated to IP67 and NEMA 4X Watertight cable glands included Push button to activate/test connected washer pump Input voltage 24 VAC ± 10%, 50/60 Hz Power consumption 1.5 W Protection on RS-485 Peak current 10 A, peak power 300 W (8/20 μ) Protection on Alarm Inputs Peak current 17 A, peak power 300 W (8/20 μ) Protection on Alarm Outputs Peak current 2 A, peak power 300 W (8/20 μ) Protection on Relay Outputs Peak current 7.3 A, peak power 600 W (10/1000 μ) Protection on Power Input (Camera) Peak current 7.3 A, peak power 600 W (10/1000 μ) LEDs Red LED (ON indicates power on)Green LEDs (blinking indicates activation for each alarm input)Yellow LED (blinking indicates active
