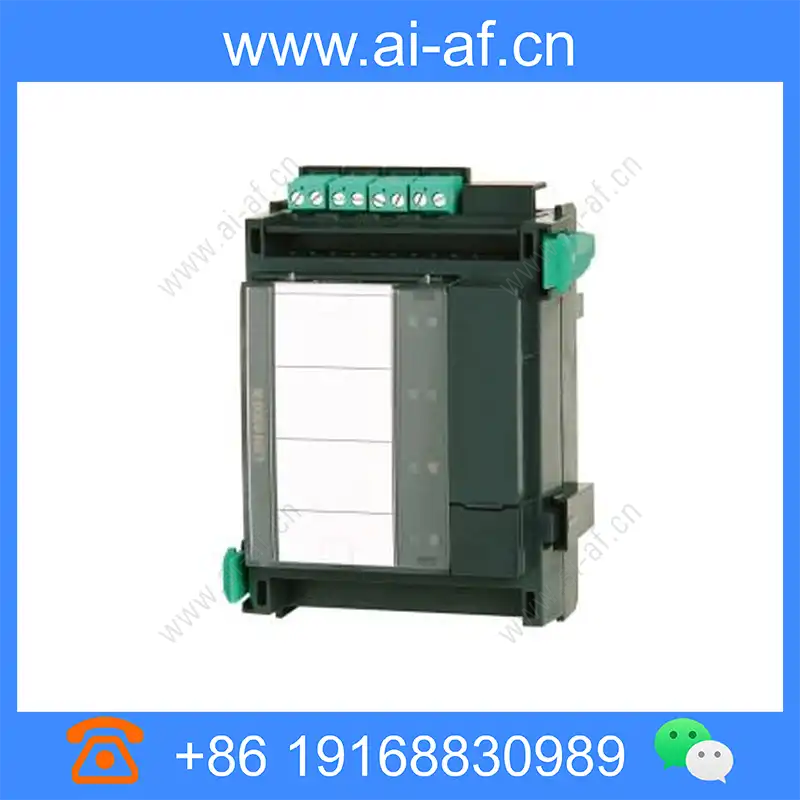

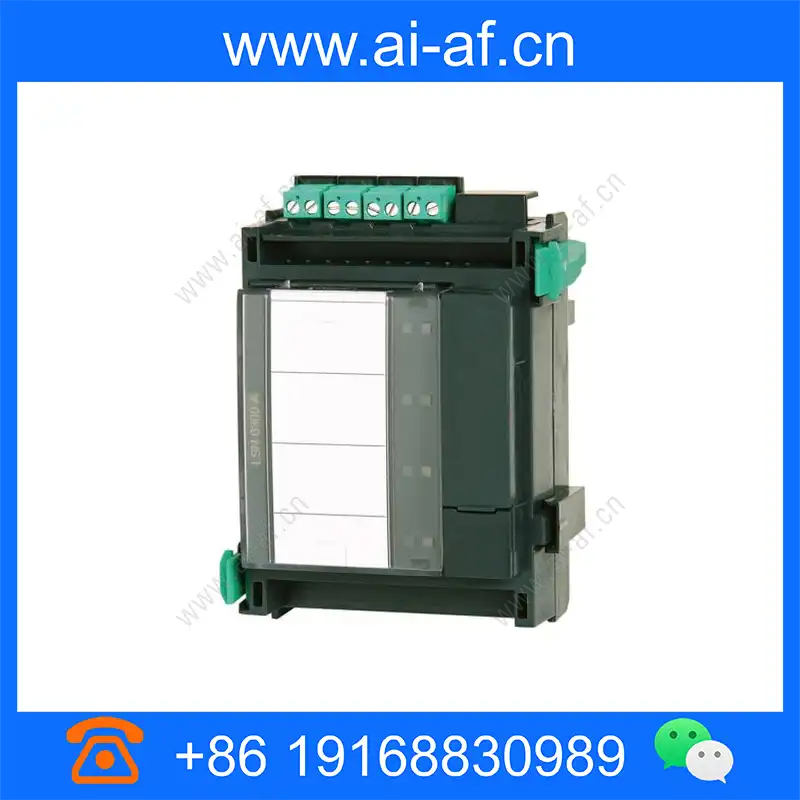

Bosch LSN-0300-A LSN bus module 300mA 4.998.137.277

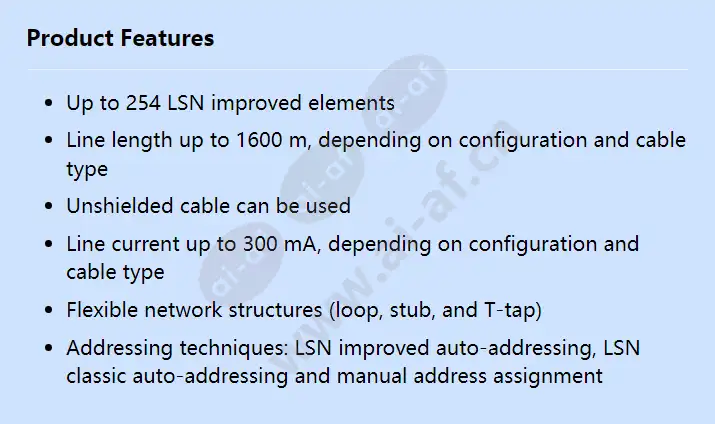

Up to 254 LSN improved elements Line length up to 1600 m, depending on configuration and cable type Unshielded cable can be used Line current up to 300 mA, depending on configuration and cable type Flexible network structures (loop, stub, and T-tap) Addressing techniques: LSN improved auto-addressing, LSN classic auto-addressing and manual address assignment Cable length (m) 1600 m Color Gray Color in RAL RAL 7016 Anthracite gray Dimensions (H x W x D) (mm) 127 x 96 x 60 mm Input voltage (VDC) 20 – 30 VDC IP rating IP30 LED color Red; Yellow Material Plastic Operating relative humidity, non-condensing (%) 0 – 95 % Operating temperature (°C) -5 – 50 °C Output voltage (VDC) 27 – 30 VDC Storage temperature (°C) -20 – 60 °C Weight (g) 225 g
