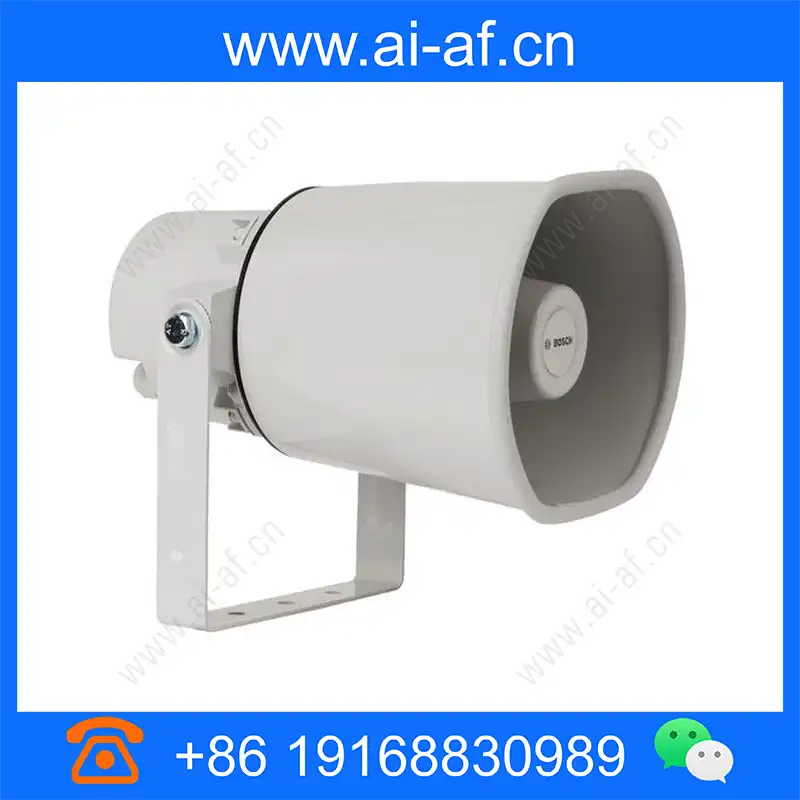

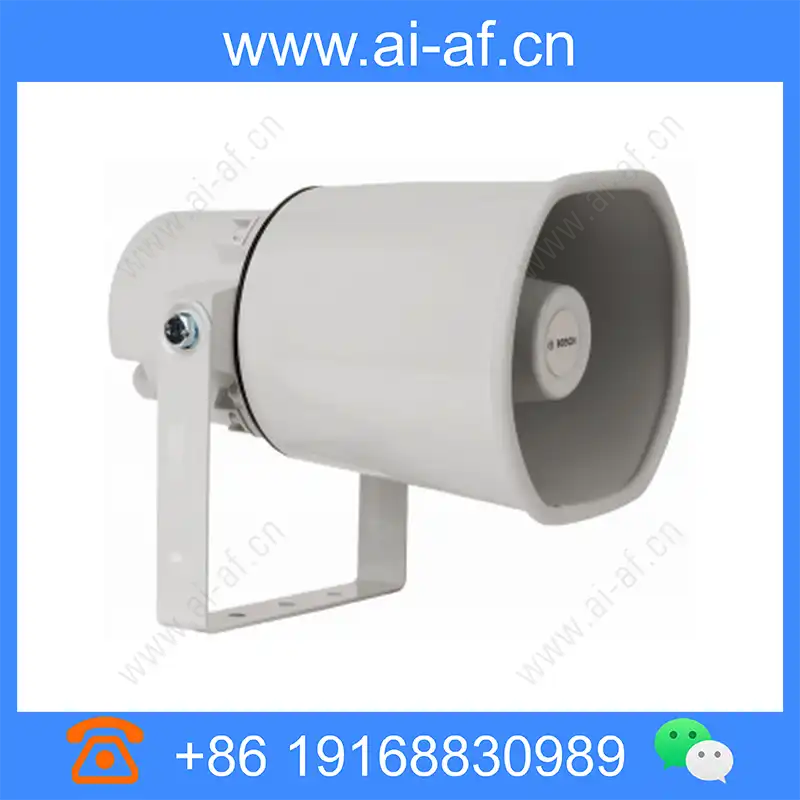

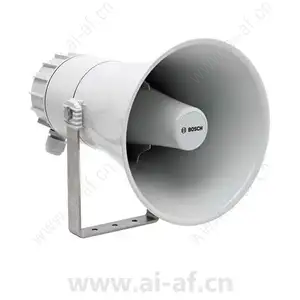

Bosch LH1-10M10E Horn loudspeaker 10W 7x8 inch F.01U.074.281
Brand: Bosch
Model: LH1-10M10E
Weight: 3600g

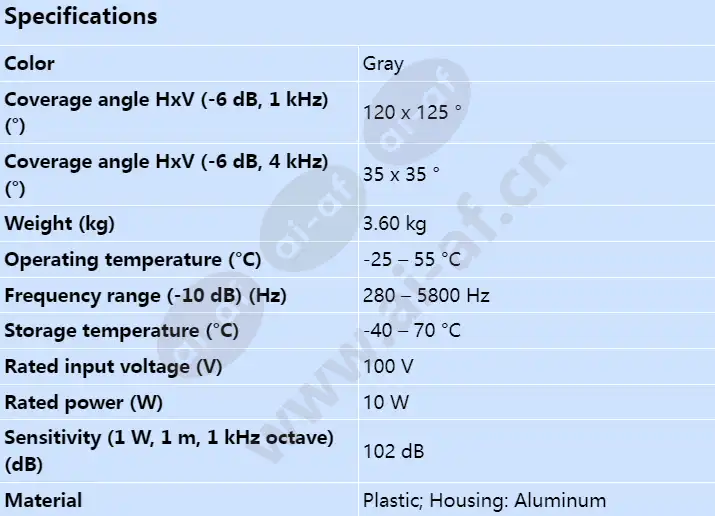

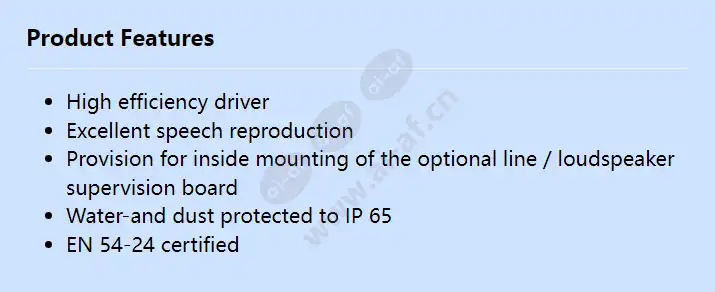

High efficiency driver Excellent speech reproduction Provision for inside mounting of the optional line / loudspeaker supervision board Water-and dust protected to IP 65 EN 54-24 certified Color Gray Coverage angle HxV (-6 dB, 1 kHz) (°) 120 x 125 ° Coverage angle HxV (-6 dB, 4 kHz) (°) 35 x 35 ° Frequency range (-10 dB) (Hz) 280 – 5800 Hz Material Plastic; Housing: Aluminum Operating temperature (°C) -25 – 55 °C Rated input voltage (V) 100 V Rated power (W) 10 W Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 102 dB Storage temperature (°C) -40 – 70 °C Weight (kg) 3.60 kg
