Bosch LBC3483/00 Horn Loudspeaker 35W F.01U.522.000
Brand: Bosch
Model: LBC3483_00
Weight: 4500g

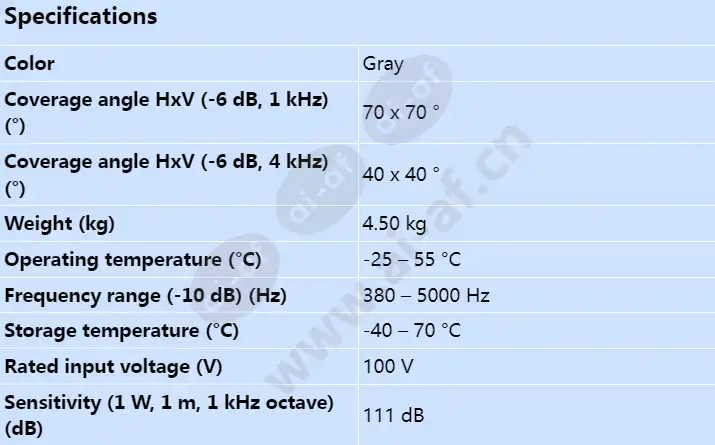

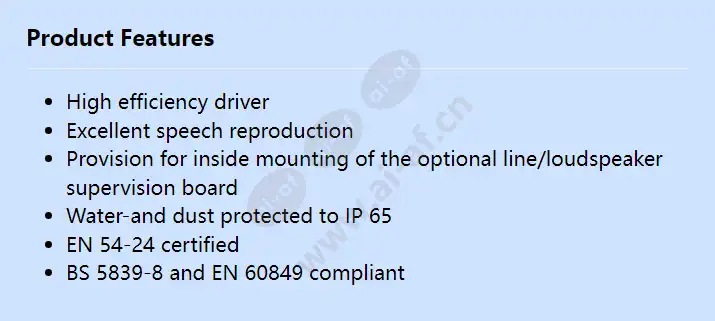

High efficiency driver Excellent speech reproduction Provision for inside mounting of the optional line/loudspeaker supervision board Water-and dust protected to IP 65 EN 54-24 certified BS 5839-8 and EN 60849 compliant Color Gray Coverage angle HxV (-6 dB, 1 kHz) (°) 70 x 70 ° Coverage angle HxV (-6 dB, 4 kHz) (°) 40 x 40 ° Frequency range (-10 dB) (Hz) 380 – 5000 Hz Operating temperature (°C) -25 – 55 °C Rated input voltage (V) 100 V Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 111 dB Storage temperature (°C) -40 – 70 °C Weight (kg) 4.50 kg
