Bosch LBC3094/15 Sound projector loudspeaker 10W F.01U.012.716

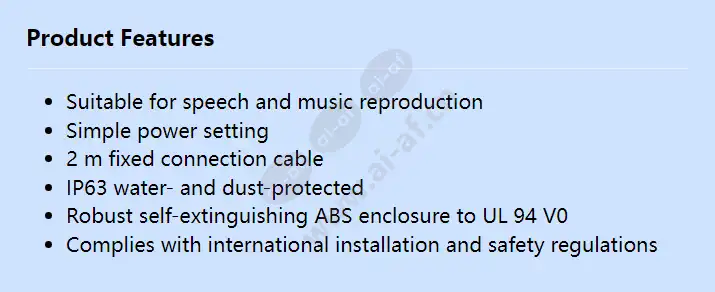

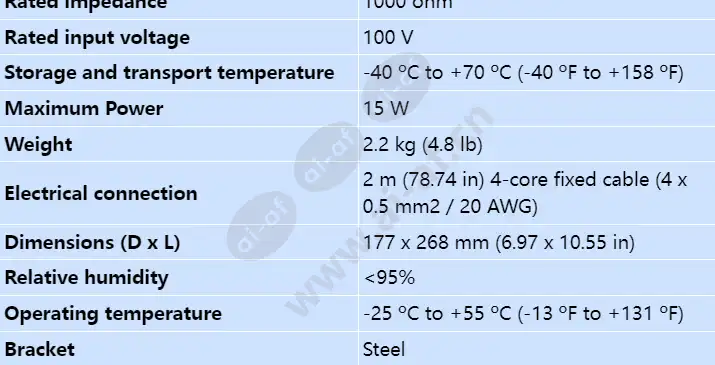

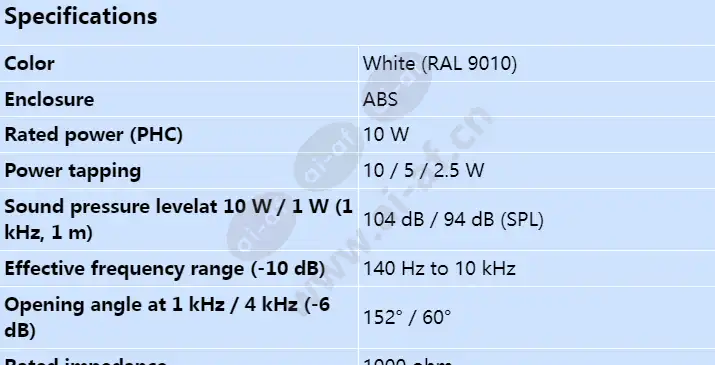

Suitable for speech and music reproduction Simple power setting 2 m fixed connection cable IP63 water- and dust-protected Robust self-extinguishing ABS enclosure to UL 94 V0 Complies with international installation and safety regulations Maximum power 15 W Rated power (PHC) 10 W Power tapping 10 / 5 / 2.5 W Sound pressure levelat 10 W / 1 W (1 kHz, 1 m) 104 dB / 94 dB (SPL) Effective frequency range (-10 dB) 140 Hz to 10 kHz Opening angle at 1 kHz / 4 kHz (-6 dB) 152° / 60° Rated input voltage 100 V Rated impedance 1000 ohm Electrical connection 2 m (78.74 in) 4-core fixed cable (4 x 0.5 mm2 / 20 AWG) Dimensions (D x L) 177 x 268 mm (6.97 x 10.55 in) Weight 2.2 kg (4.8 lb) Color White (RAL 9010) Enclosure ABS Bracket Steel Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF) Storage
