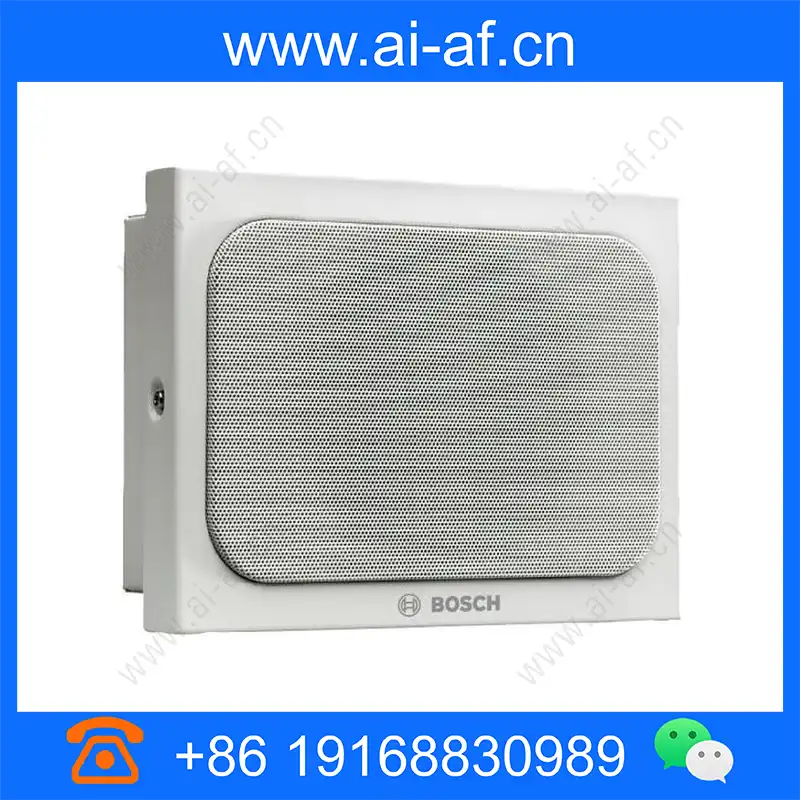

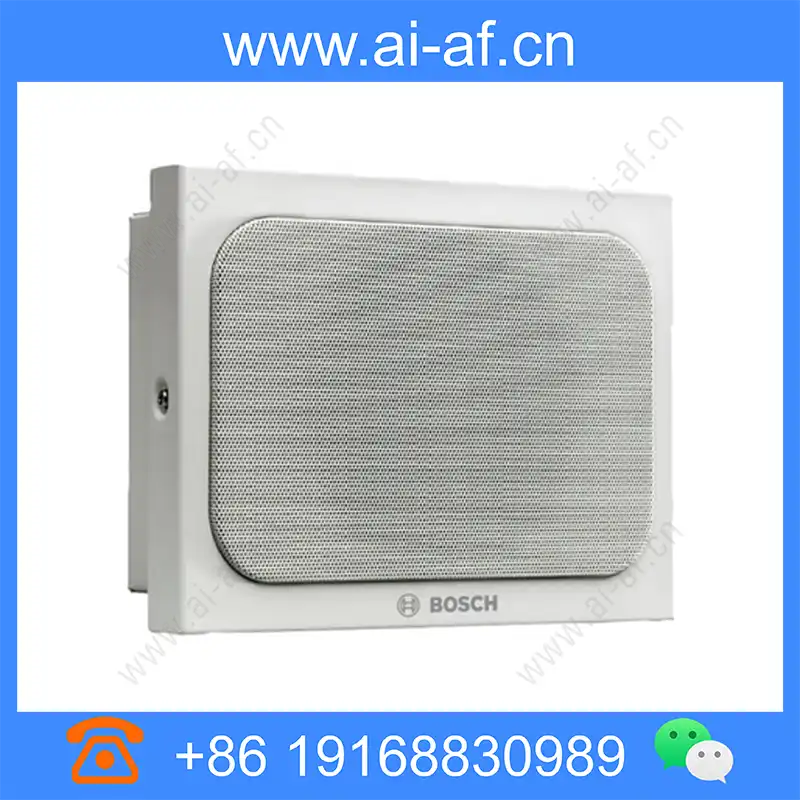

Bosch LBC3018/01 Cabinet loudspeaker metal rectangular F.01U.167.947

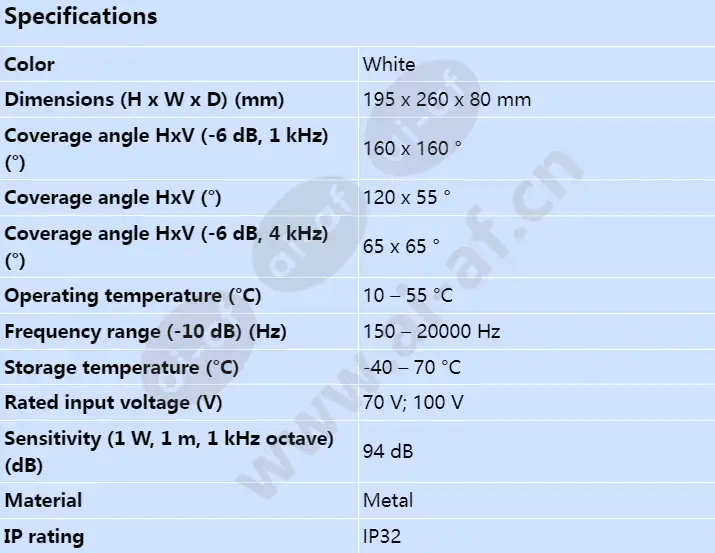

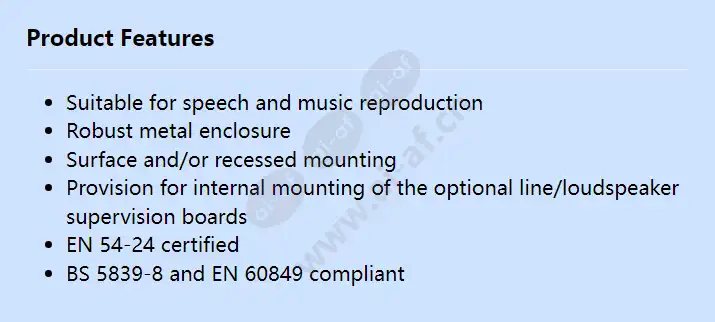

Suitable for speech and music reproduction Robust metal enclosure Surface and/or recessed mounting Provision for internal mounting of the optional line/loudspeaker supervision boards EN 54-24 certified BS 5839-8 and EN 60849 compliant Color White Coverage angle HxV (-6 dB, 1 kHz) (°) 160 x 160 ° Coverage angle HxV (-6 dB, 4 kHz) (°) 65 x 65 ° Coverage angle HxV (°) 120 x 55 ° Dimensions (H x W x D) (mm) 195 x 260 x 80 mm Frequency range (-10 dB) (Hz) 150 – 20000 Hz IP rating IP32 Material Metal Operating temperature (°C) 10 – 55 °C Rated input voltage (V) 70 V; 100 V Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 94 dB Storage temperature (°C) -40 – 70 °C
