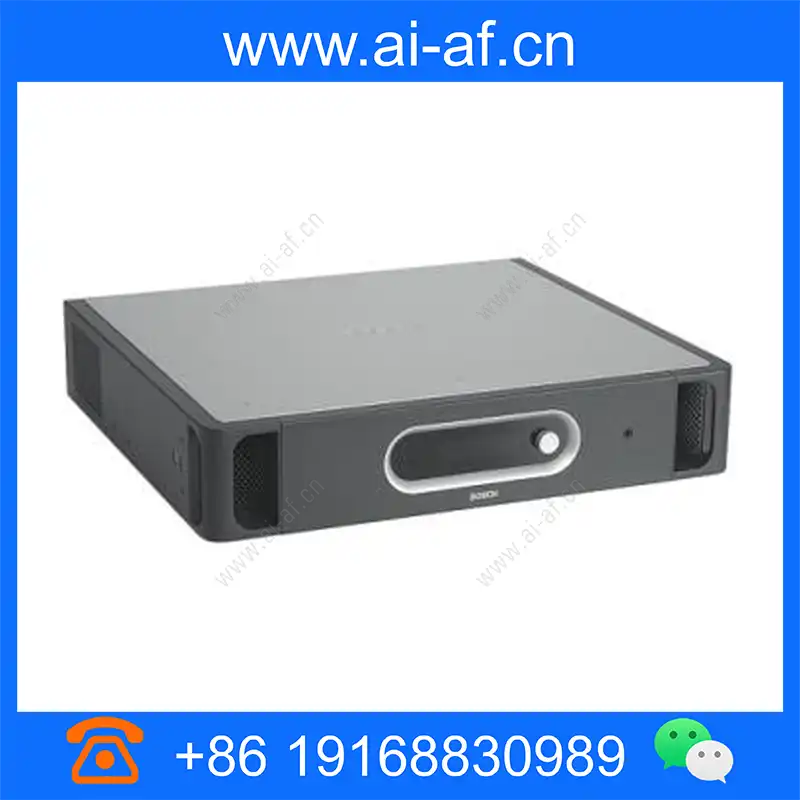

Bosch LBB4402/00 Analog audio expander F.01U.126.537

Bosch LBB 4402/00 Analog Audio Expander Business type: LBB4402/00 Product number: F.01U.126.537 Fashionable Design (IF Award) Conference room connection function Multipurpose audio distribution function Fiber optic network for connection to CCU Redundant network function Supply voltage 24 to 48 VDC Power consumption 7.6 W (DC) Frequency response 30 Hz – 20 kHz (-3 dB, nominal level) THD at rated level <0.5% Crosstalk attenuation > 85 dB,1 kHz Dynamic range >90 dB S/N ratio >87 dBA Audio line in XLR rated input 0 dBV (±6 dB) XLR max input +12 dBV Rated input of lotus socket +12 dBV (±6 dB) Lotus socket maximum input 0 dBV Audio Mic Input Rated Input 57 dBV (±6 dB) Maximum input 26 dBV Phantom power 12 V ± 1 V,15 mA Audio line out XLR rated output 12 dBV (+6 / -24 dB) XLR max output +12 dBV
