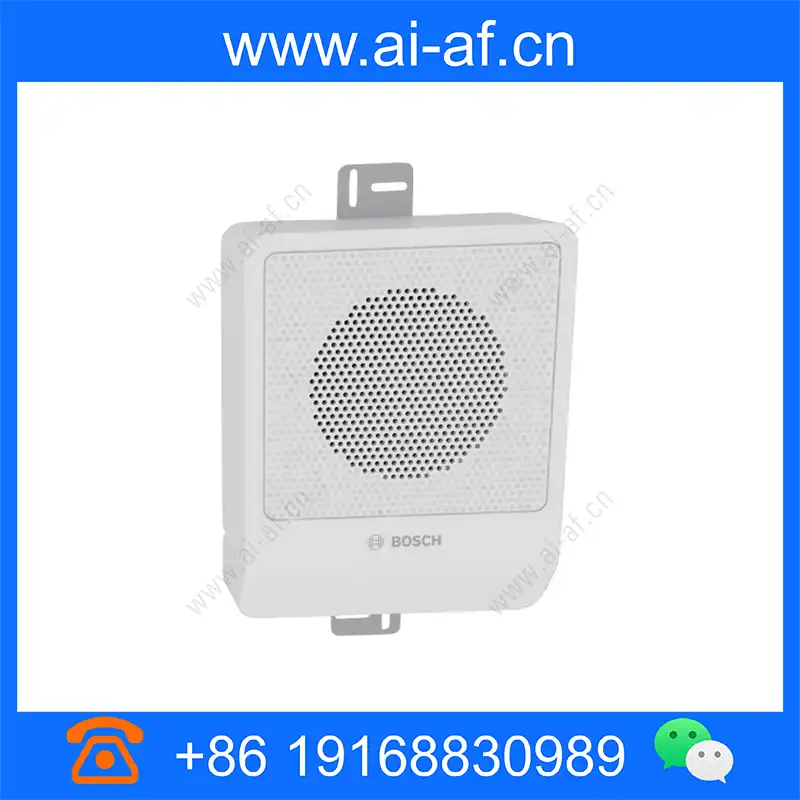

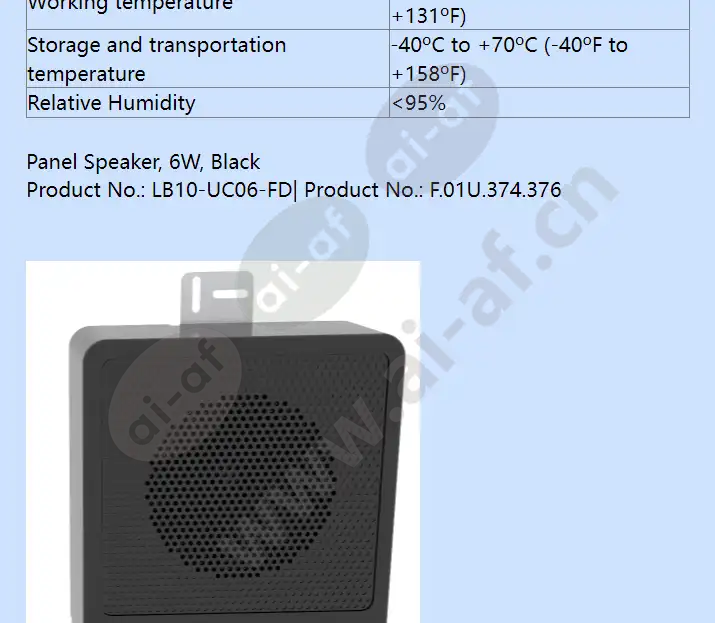

Bosch LB10-UC06-FL White LB10-UC06-FD Black Speaker 6W Flat Mount

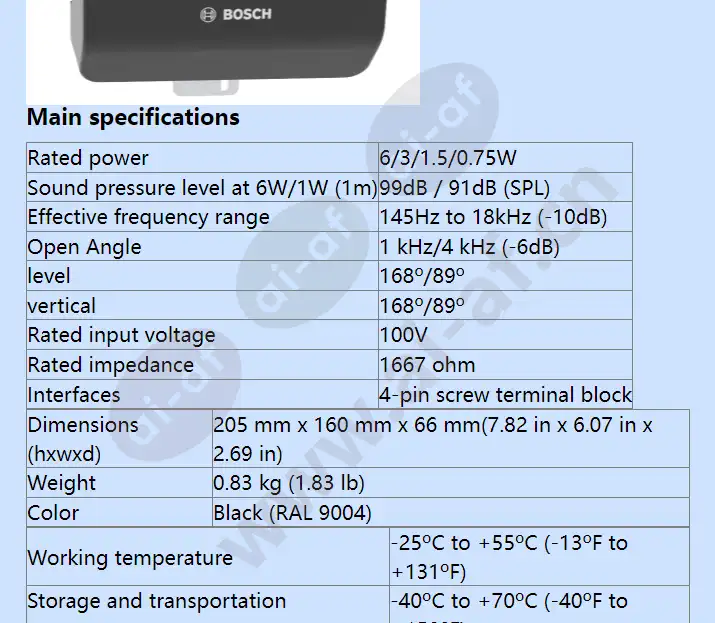

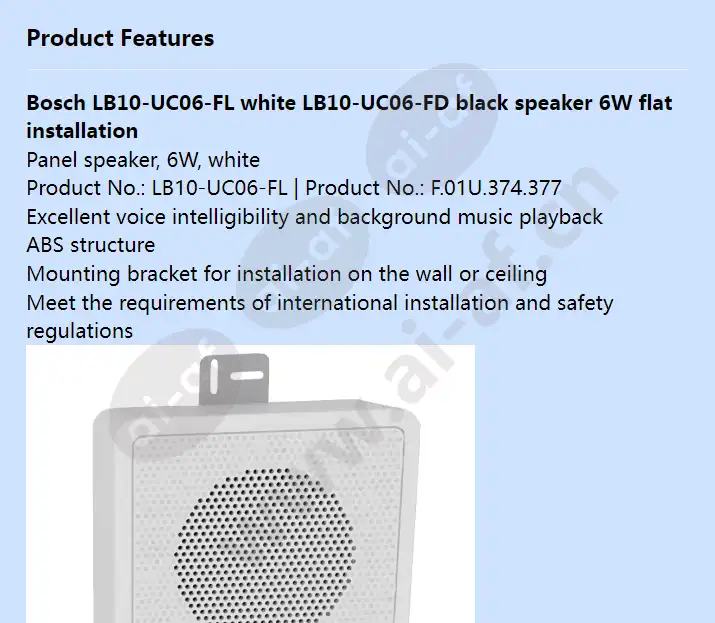

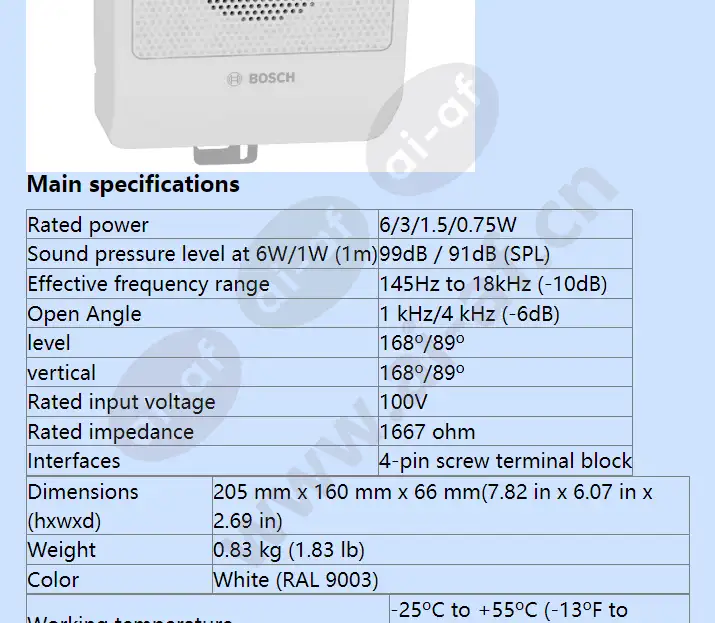

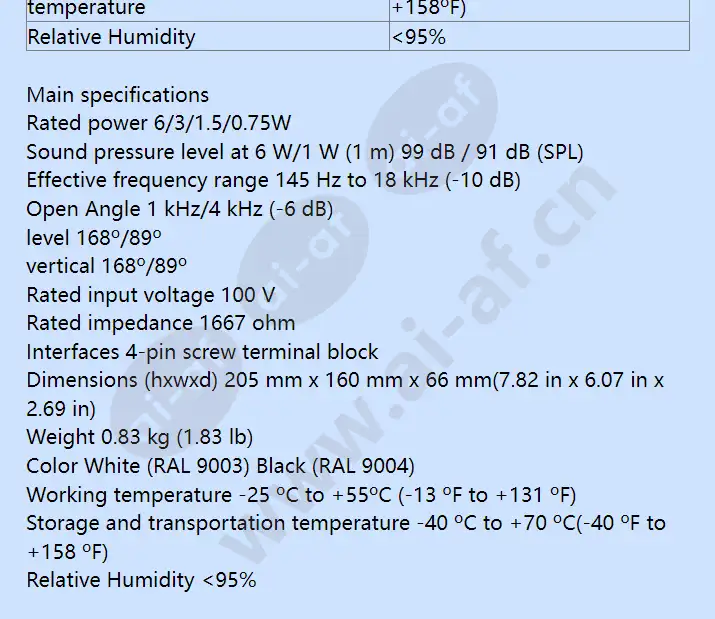

Bosch LB10-UC06-FL white LB10-UC06-FD black speaker 6W flat installation Panel speaker, 6W, white Product No.: LB10-UC06-FL | Product No.: F.01U.374.377 Excellent voice intelligibility and background music playback ABS structure Mounting bracket for installation on the wall or ceiling Meet the requirements of international installation and safety regulations Main specifications Rated power 6/3/1.5/0.75W Sound pressure level at 6W/1W (1m) 99dB / 91dB (SPL) Effective frequency range 145Hz to 18kHz (-10dB) Open Angle 1 kHz/4 kHz (-6dB) level 168º/89º vertical 168º/89º Rated input voltage 100V Rated impedance 1667 ohm Interfaces 4-pin screw terminal block Dimensions (hxwxd) 205 mm x 160 mm x 66 mm(7.82 in x 6.07 in x 2.69 in) Weight 0.83 kg (1.83 lb) Color White (RAL 9003) Working temperature
