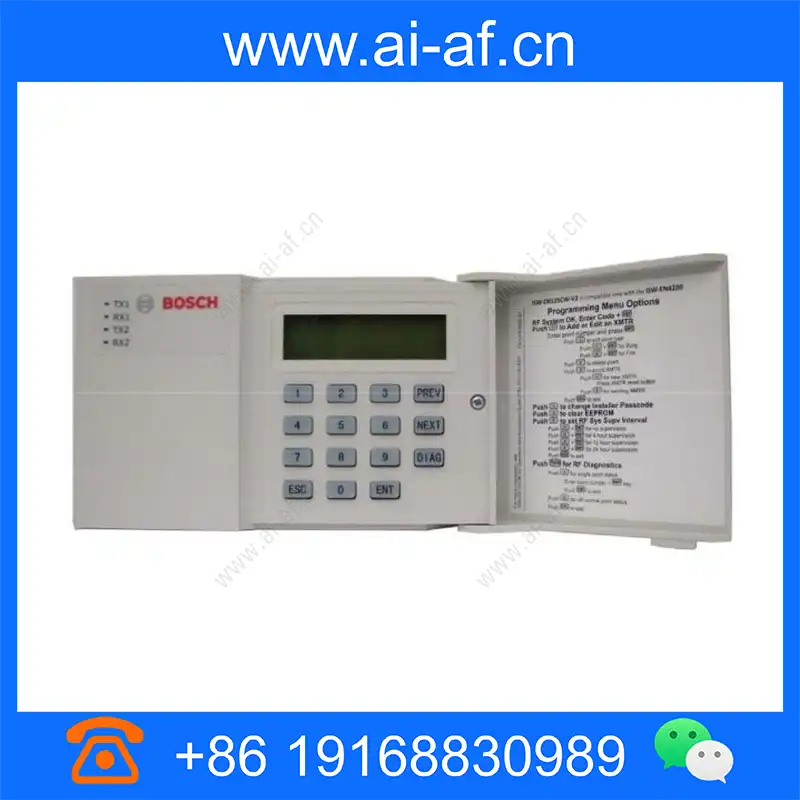

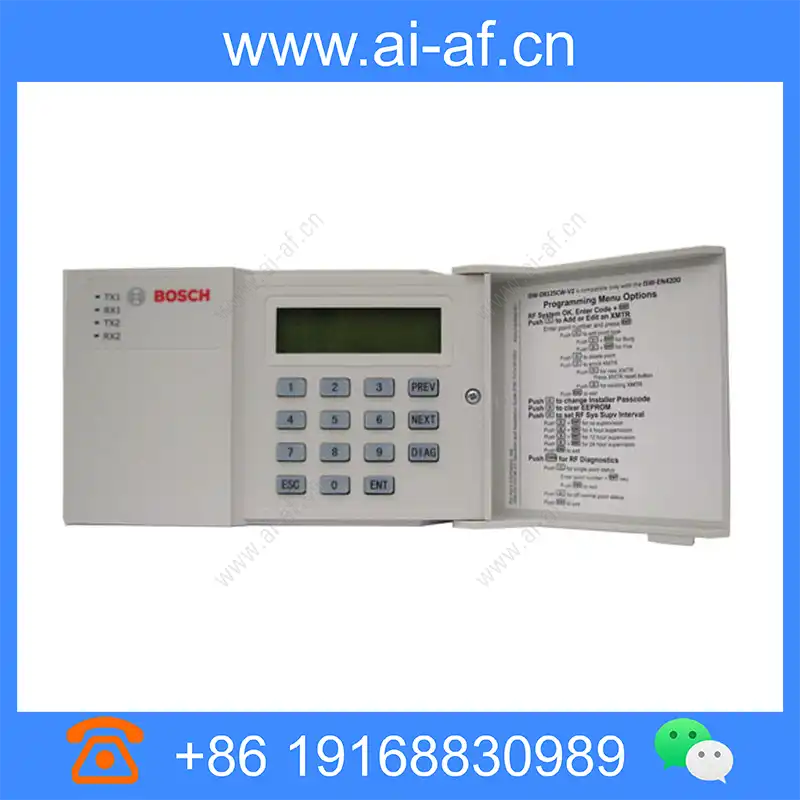

Bosch ISW-D8125CW-V2 Interface module Inovonics Echostream F.01U.383.286
Brand: Bosch
Model: ISW-D8125CW-V2

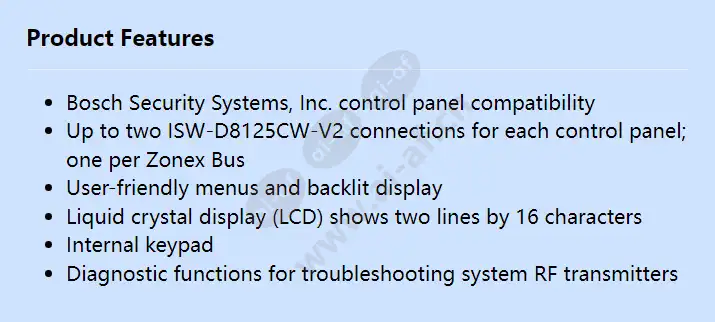

Bosch Security Systems, Inc. control panel compatibility Up to two ISW-D8125CW-V2 connections for each control panel; one per Zonex Bus User-friendly menus and backlit display Liquid crystal display (LCD) shows two lines by 16 characters Internal keypad Diagnostic functions for troubleshooting system RF transmitters Dimensions: 4.0 in. x 6.5 in. x 1.2 in. Weight: 0.6 lb Relative Humidity: Up to 93%, non-condensing Temperature (Operating): 0°C to +65°C (+32°F to +149°F) Current Draw: 20 mA typical, 50 mA maximum; +60 mA for each receiver Voltage (Operating): 10.2 VDC to 14 VDC supplied by the control panel auxiliary power or an external auxiliary power supply.
