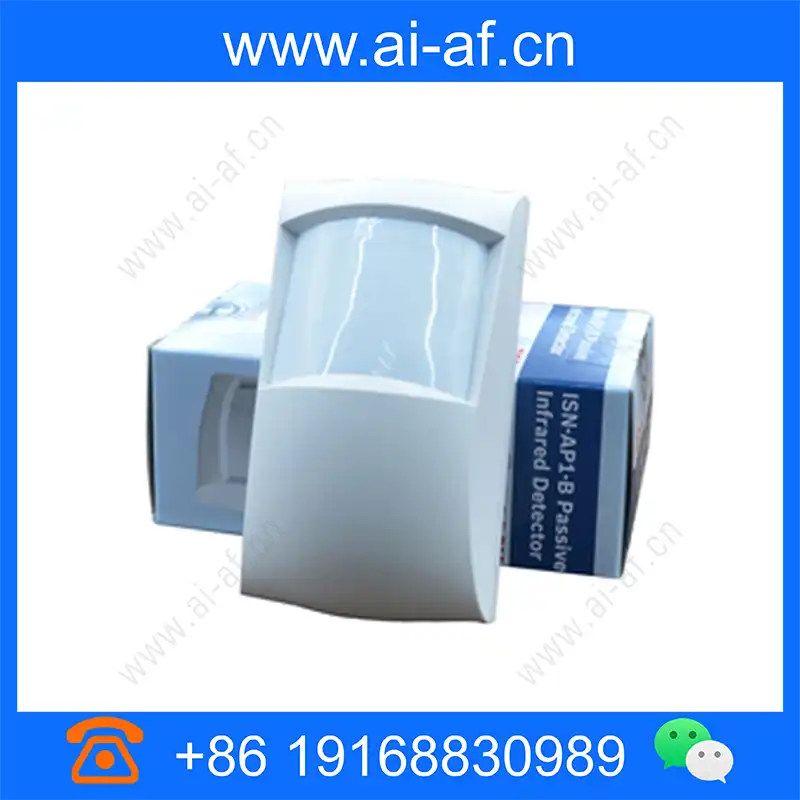

Bosch ISN-AP1-B Passive-Infrared Detector

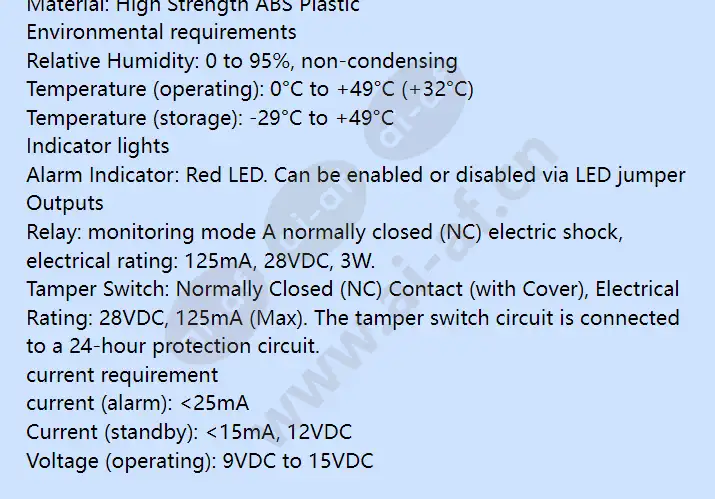

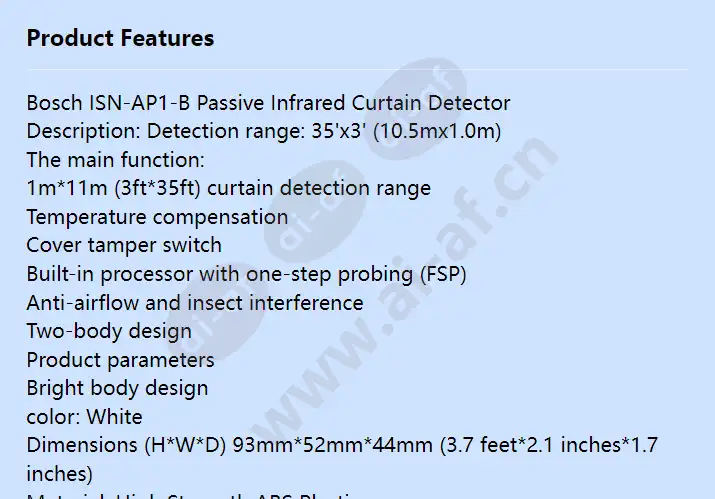

Bosch ISN-AP1-B Passive Infrared Curtain Detector Description: Detection range: 35'x3' (10.5mx1.0m) The main function: 1m*11m (3ft*35ft) curtain detection range Temperature compensation Cover tamper switch Built-in processor with one-step probing (FSP) Anti-airflow and insect interference Two-body design Product parameters Bright body design color: White Dimensions (H*W*D) 93mm*52mm*44mm (3.7 feet*2.1 inches*1.7 inches) Material: High Strength ABS Plastic Environmental requirements Relative Humidity: 0 to 95%, non-condensing Temperature (operating): 0°C to +49°C (+32°C) Temperature (storage): -29°C to +49°C Indicator lights Alarm Indicator: Red LED. Can be enabled or disabled via LED jumper Outputs Relay: monitoring mode A normally closed (NC) electric shock, electrical rating: 125mA
