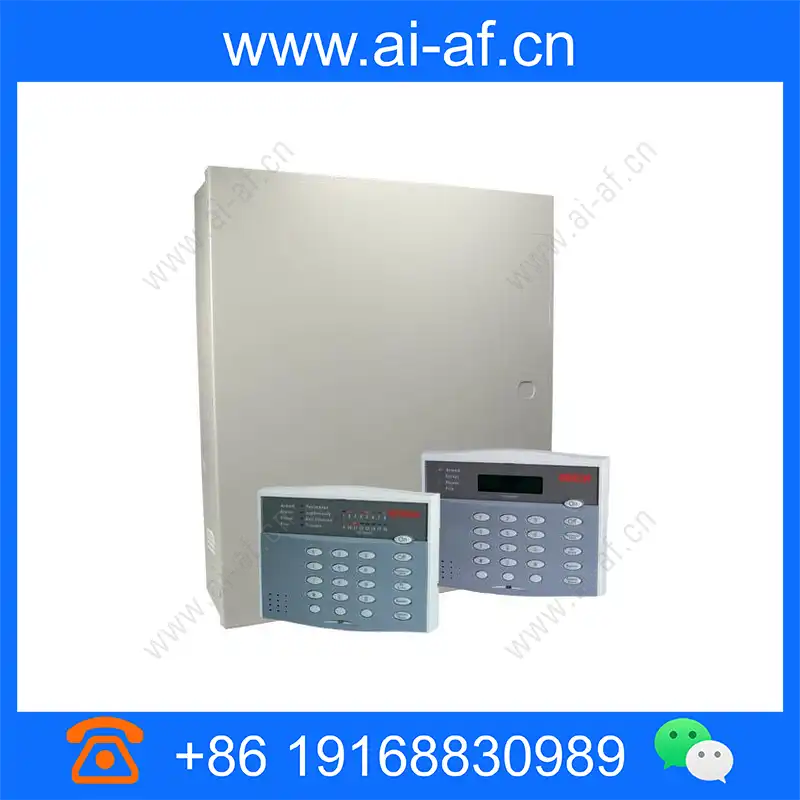

Bosch IP7400XI-CHI DS7000 Alarm panel 248 defense zones IP F.01U.250.792

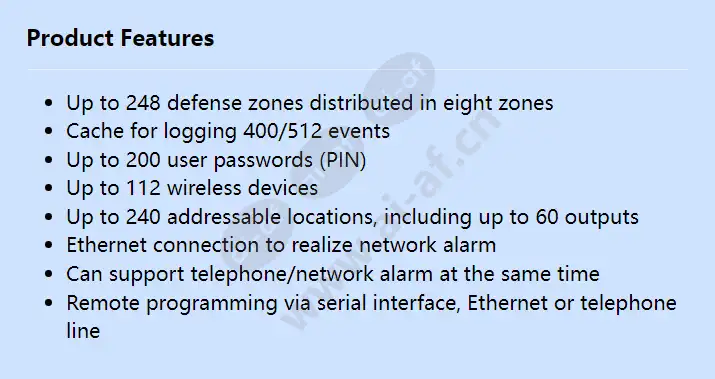

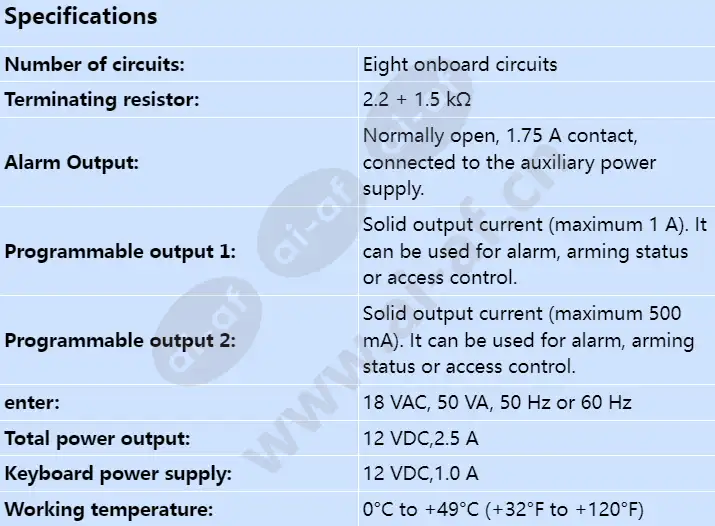

Up to 248 defense zones distributed in eight zones Cache for logging 400/512 events Up to 200 user passwords (PIN) Up to 112 wireless devices Up to 240 addressable locations, including up to 60 outputs Ethernet connection to realize network alarm Can support telephone/network alarm at the same time Remote programming via serial interface, Ethernet or telephone line Number of circuits: Eight onboard circuits Terminating resistor: 2.2 + 1.5 kΩ Alarm Output: Normally open, 1.75 A contact, connected to the auxiliary power supply. Programmable output 1: Solid output current (maximum 1 A). It can be used for alarm, arming status or access control. Programmable output 2: Solid output current (maximum 500 mA). It can be used for alarm, arming status or access control. Operating temperature: 0°C
