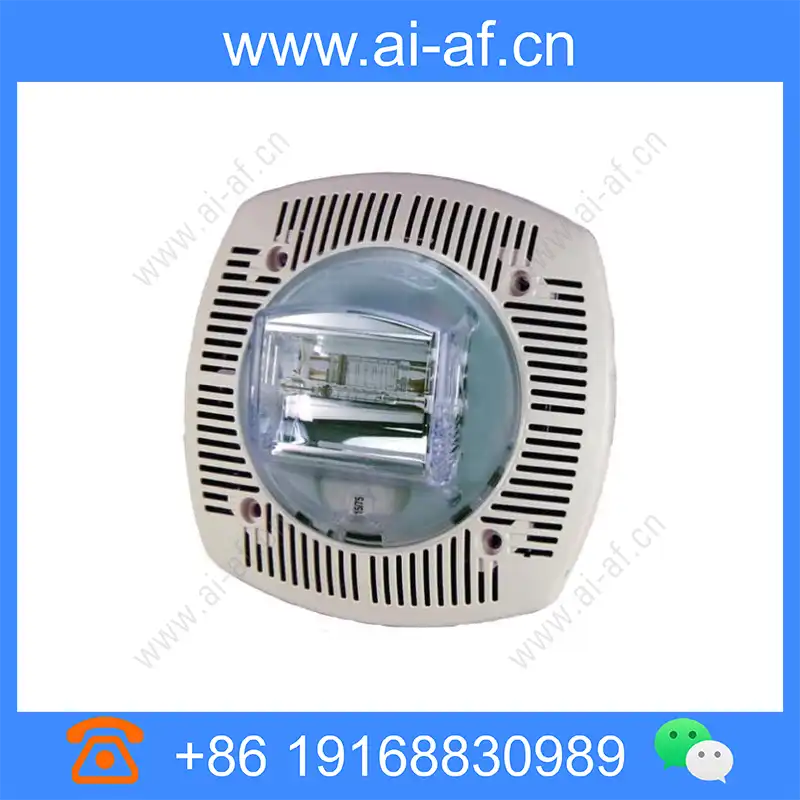

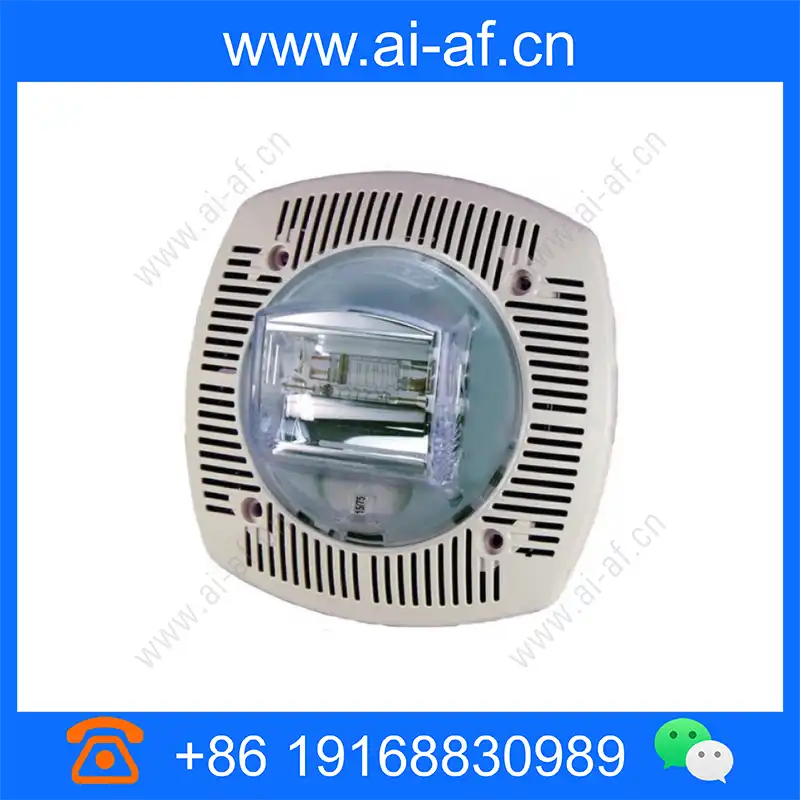

Bosch G-SSPK24-15_75WLPW G-SSPK24WLP Wall-mount Speaker Strobes Wall speaker/strobe 15/75cd 24V white F.01U.082.917
Brand: Bosch
Model: G-SSPK24-15_75WLPW
Dimensions: 154.90mm x 154.90mm x 478mm

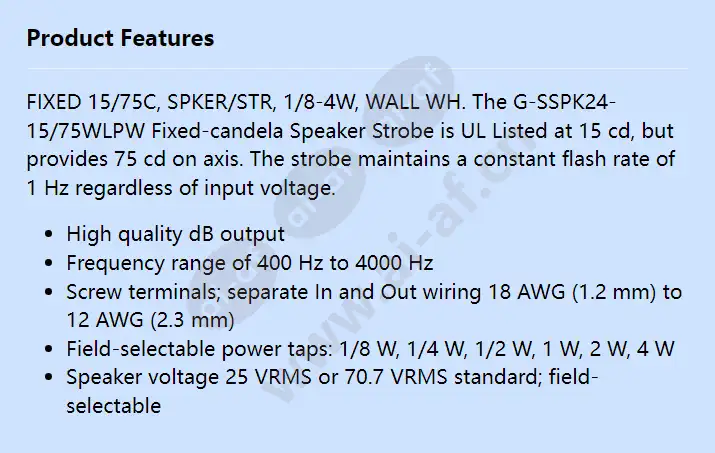

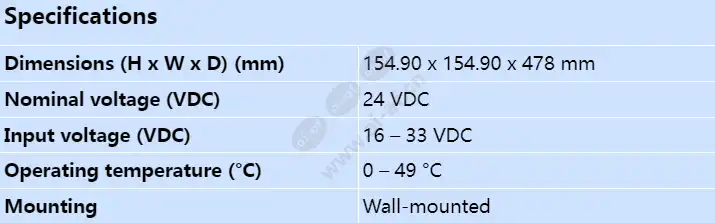

FIXED 15/75C, SPKER/STR, 1/8-4W, WALL WH. The G-SSPK24-15/75WLPW Fixed-candela Speaker Strobe is UL Listed at 15 cd, but provides 75 cd on axis. The strobe maintains a constant flash rate of 1 Hz regardless of input voltage. High quality dB output Frequency range of 400 Hz to 4000 Hz Screw terminals; separate In and Out wiring 18 AWG (1.2 mm) to 12 AWG (2.3 mm) Field-selectable power taps: 1/8 W, 1/4 W, 1/2 W, 1 W, 2 W, 4 W Speaker voltage 25 VRMS or 70.7 VRMS standard; field-selectable Dimensions (H x W x D) (mm) 154.90 x 154.90 x 478 mm Input voltage (VDC) 16 – 33 VDC Mounting type Wall-mounted Nominal voltage (VDC) 24 VDC Operating temperature (°C) 0 – 49 °C
