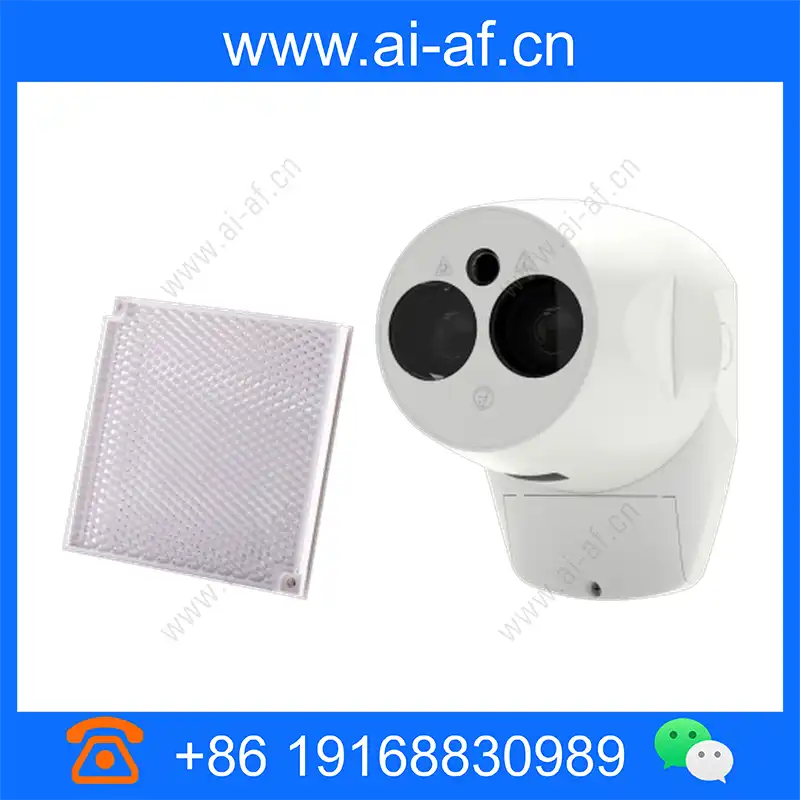

Bosch FRAY-ONE-UL Linear beam detector standalone Commercial F.01U.400.534

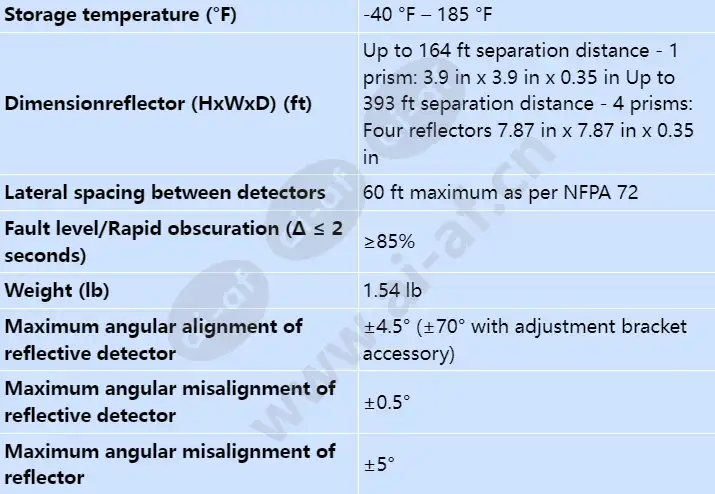

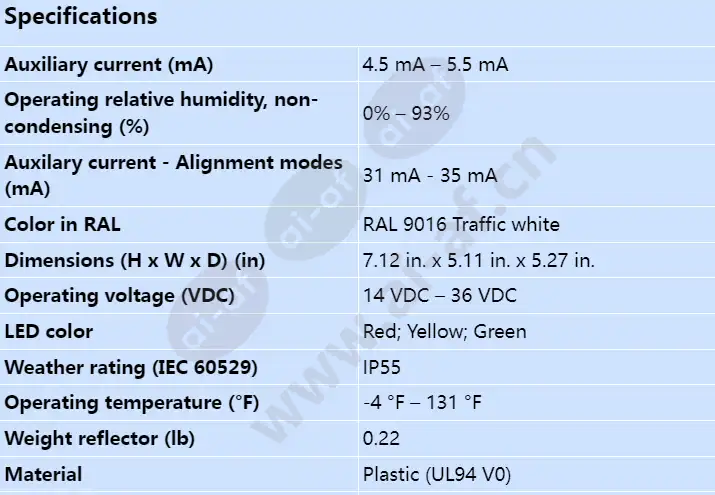

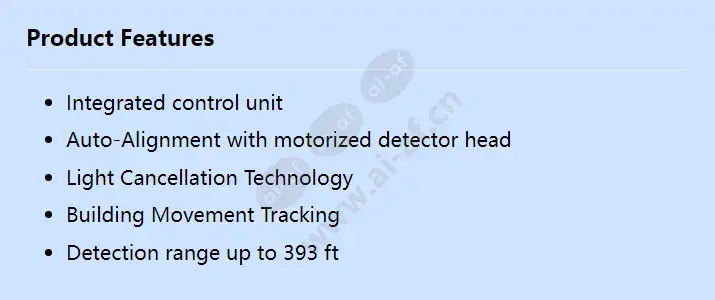

Integrated control unit Auto-Alignment with motorized detector head Light Cancellation Technology Building Movement Tracking Detection range up to 393 ft Auxiliary current (mA) 4.5 mA – 5.5 mA Auxilary current - Alignment modes (mA) 31 mA - 35 mA Operating voltage (VDC) 14 VDC – 36 VDC Operating relative humidity, non-condensing (%) 0% – 93% Operating temperature (°F) -4 °F – 131 °F Storage temperature (°F) -40 °F – 185 °F Weather rating (IEC 60529) IP55 Weight (lb) 1.54 lb Weight reflector (lb) 0.22 Color in RAL RAL 9016 Traffic white Dimension (H x W x D) (in) 7.12 in. x 5.11 in. x 5.27 in. Dimensionreflector (HxWxD) (ft) Up to 164 ft separation distance - 1 prism: 3.9 in x 3.9 in x 0.35 in Up to 393 ft separation distance - 4 prisms: Four reflectors 7.87 in x 7.87 in x 0.35 in Lateral
