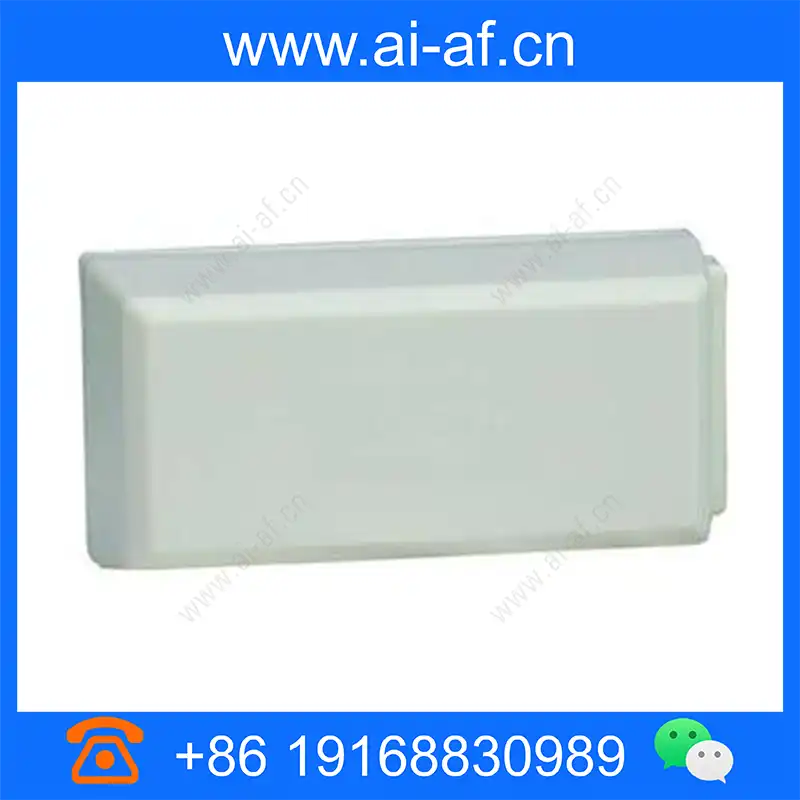

Bosch DS7465i-CHI Single input/output module

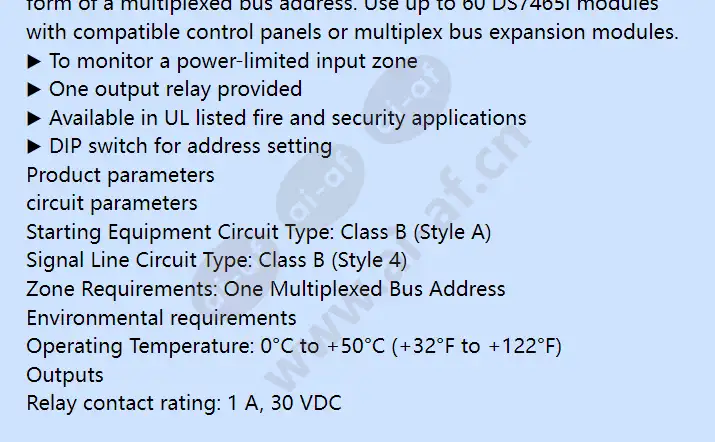

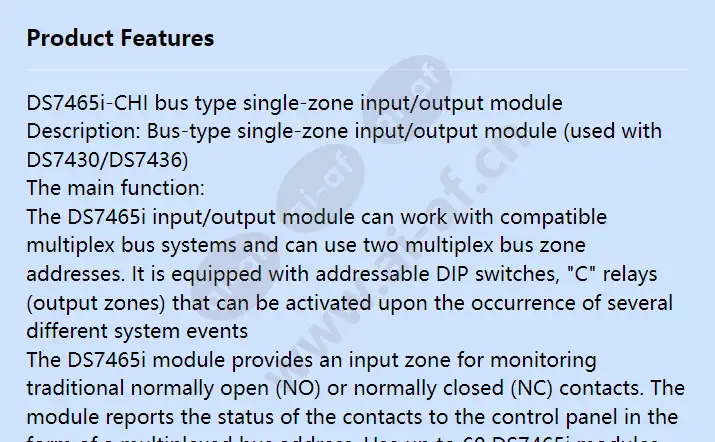

DS7465i-CHI bus type single-zone input/output module Description: Bus-type single-zone input/output module (used with DS7430/DS7436) The main function: The DS7465i input/output module can work with compatible multiplex bus systems and can use two multiplex bus zone addresses. It is equipped with addressable DIP switches, "C" relays (output zones) that can be activated upon the occurrence of several different system events The DS7465i module provides an input zone for monitoring traditional normally open (NO) or normally closed (NC) contacts. The module reports the status of the contacts to the control panel in the form of a multiplexed bus address. Use up to 60 DS7465i modules with compatible control panels or multiplex bus expansion modules. ▶ To monitor a power-limited input zone ▶ One
