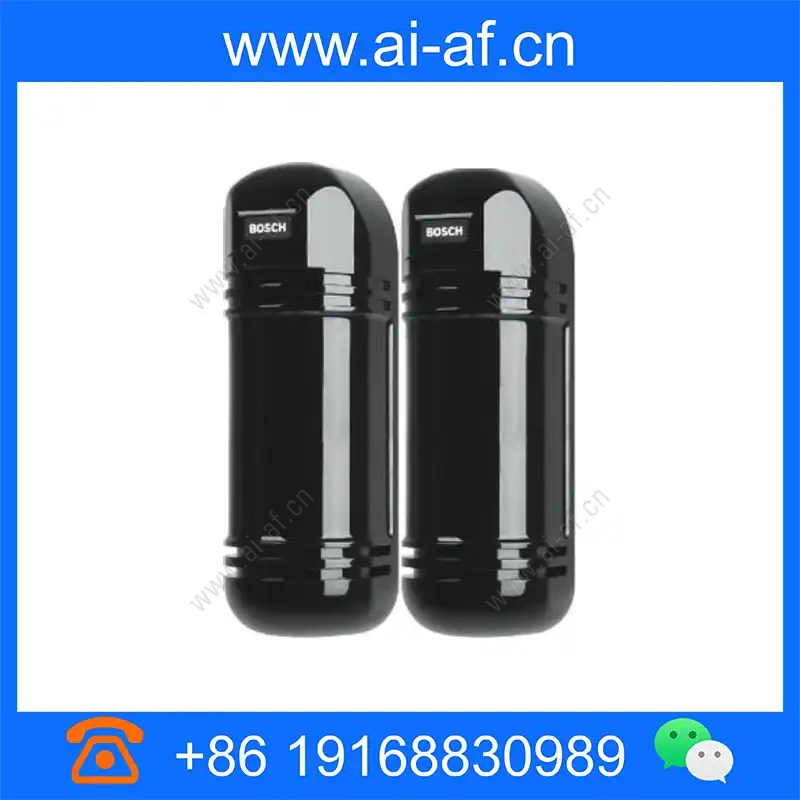

Bosch DS432I-CHI 3 beam photodetector 432i F.01U.162.569

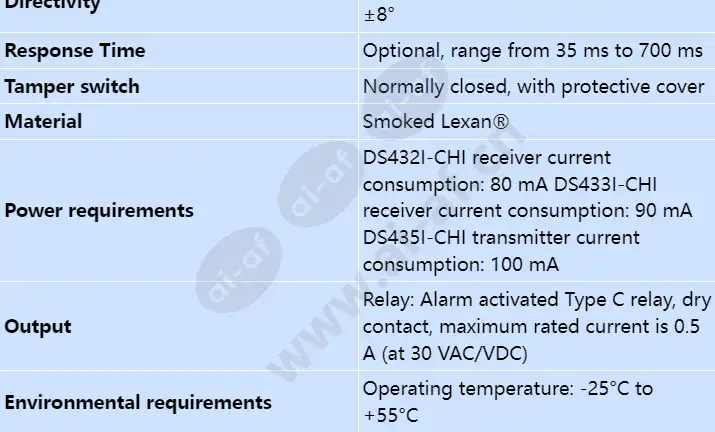

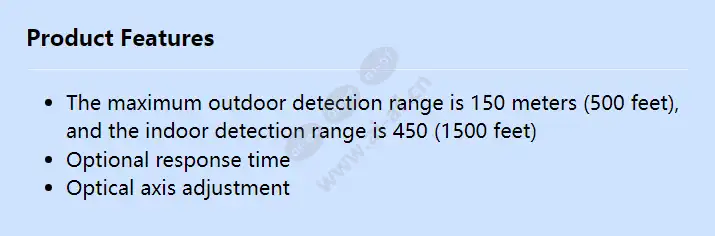

The maximum outdoor detection range is 150 meters (500 feet), and the indoor detection range is 450 (1500 feet) Optional response time Optical axis adjustment beam DS432I-CHI detection range indoor: 225 meters (750 feet), outdoor: 75 meters (250 feet) DS433I-CHI detection range indoor: 300 meters (990 feet), outdoor: 100 meters (330 feet) DS435I-CHI detection range Indoor: 450 meters (1500 feet), outdoor: 150 meters (500 feet) Response Time Optional, range from 35 ms to 700 ms Shell design Size: 270mm X 90mm X 90mm Materials Smoked Lexan® Environmental requirements Operating temperature: -25°C to +55°C Mounting considerations Can be surface-mounted or pole-mounted. Directivity Adjustable, horizontal ±90°, vertical ±8° Outputs Relay: Alarm activated Type C relay, dry contact, maximum rated
